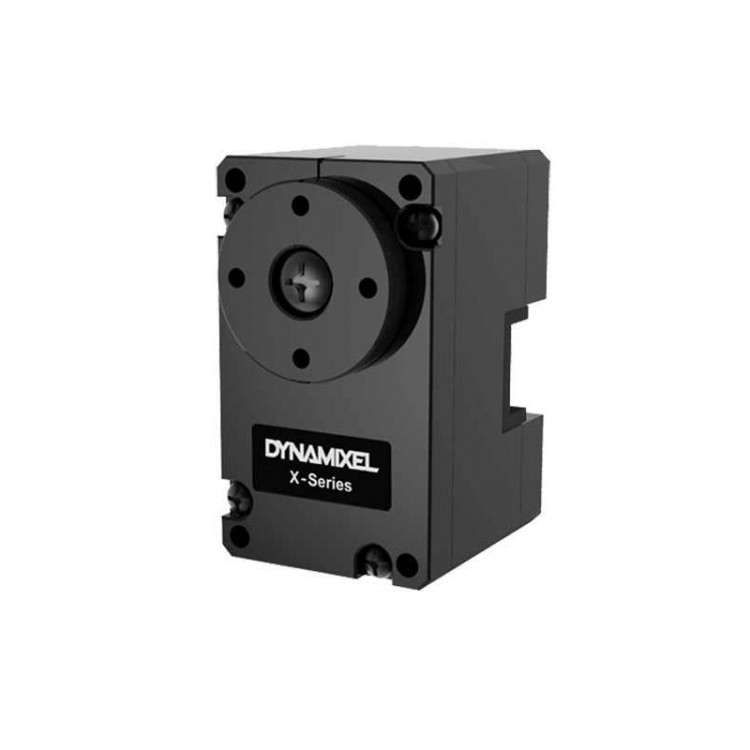

DYNAMIXEL X-Series XL330-M288-T Digital Servo Motor Metal Gear Servo for LEAP Hand Robot Joints
Description:
The XL330 series is a compact and lightweight servo. It is a very useful solution when you are building small applications or operating the DYNAMIXEL in tight spaces.
Unlike the previous entry-level servos, the XL330 series has a voltage range of 3.7V~6V. It has many working modes such as current-based position control and current control.
1. Various operating modes: speed control, position control, extended position control, PWM control, current control, current-based position control
2. Contour control for smooth motion planning
3. Input voltage: 3.7V~6V (5V recommended)

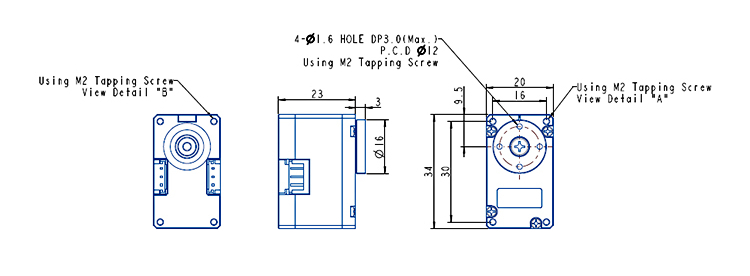

4. Size: 20mm x 34mm x 25mm (WxHxD). Weight: 18g
5. Supports RC protocol, no need for additional conversion equipment
6. Energy saving by reducing current
Package Included:
- 1 x XL330-M288-T servo motor
- 1 x Robot cable-X3P 180mm [TTL 3p cable (JST-JST)]

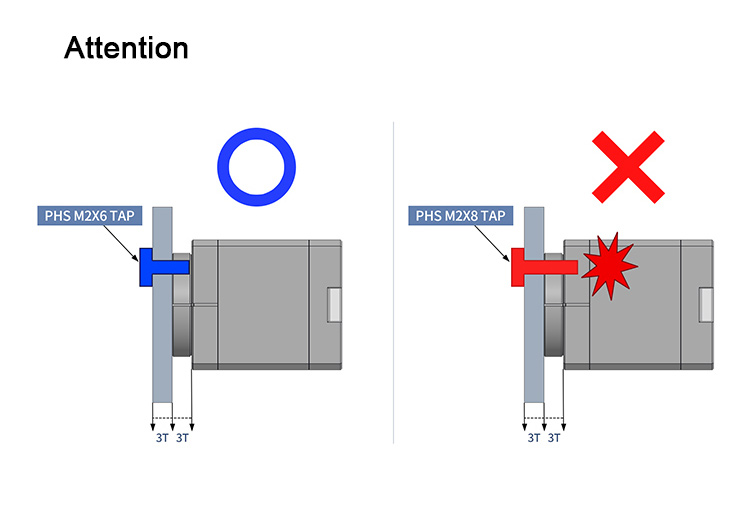

- 6 x PHS M2x6 TAP (bolts for servo horn)
- 10 x PHS M2x8 TAP (bolts for frame)
Packaging Details:
- Weight: 0.22kg
