DYS BE1806 2300KV Brushless Motor 2-3S for Mini Multicopter
Specifications:
- KV..............................................................................................................2300
- Configu ration....................................................................................NP
- Stator Diameter....................................................................................23mm
- Stator Length..........................................................................................18.5mm
- Shaft Diameter.......................................................................................2.0mm

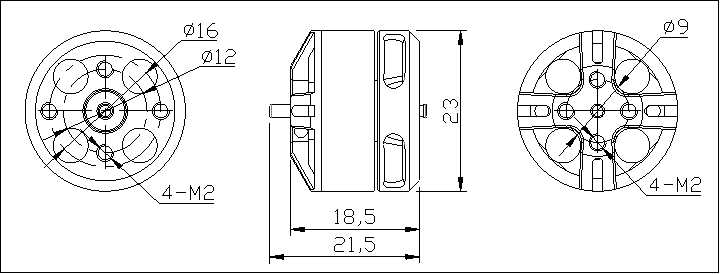

- Motor Dimensions(Dia.*Len)...............................................Φ23×18.5mm
- Weight (g)...................................................................................................18g
- No.of Cells(Lipo).....................................................................................2-3S
- Max Continuous current(A)............................................................7.6A
- Max Continuous Power(W)...........................................................84.4W
- Internal resistance..............................................................................Ω
| Item No. | NO LOAD | ON LOAD | LOAD TYPE | |||||
|
BE1806-13 (2300KV) |
VOLTAGE | CURRENT | SPEED | CURRENT | Pull | Power | EEP | Battery/prop |
| V | A | rpm | A | g | W | % | ||
| 7.4 | 0.6 | 17060 | 6.5 | 390 | 48.1 | 8.1 | LiPoх2/6X2 | |
| 7.6 | 521 | 56.2 | 9.3 | LiPoх2/7X2.4 | ||||
| 11.1 | 0.6 | 25590 | 6.5 | 390 | 72.2 | 5.4 | LiPoх3/5X3 | |
| 7.6 | 521 | 84.4 | 6.2 | LiPoх3/6X2 | ||||
DYS final released BE series super strength out-runner multicopter dedicated brushless motor, The BE series motor is with Kawasaki, Japan 1200 # 0.2mm high efficiency silicon steel and 40UH high temperature powerful magnet. Selected the Japanese NSK pure imported bearings to reduce motor vibration, shell using high-precision CNC machining and professional balancing test, making concentricity, balance is, , greatly enhanced. DYS BE Series multicopter dedicated motor perfectly compatible with more than 99% of commercially available brushless ESC.
Low vibration motor great for flying:
- To make aircraft more stable
- Less operating noise
- More efficient
- Bearings long life
Package Include:
- 1 X DYS 1806 2300KV Brushless Motor
