| Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
|---|---|---|---|---|---|
| Price /Unit | $10.58 | $10.37 | $10.04 | $9.61 | Contact US |
SimpleFOC Shield V2.0.4 BLDC Motor Driver Board Compatible with Ar-duino UNO & for Gimbal Motors
$29.43
SimpleFOC Shield V1.3.3 Brushless DC Motor Driver Board for Low-power FOC Applications up to 5Amps
$24.18
FLYCOLOR Raptor 5th Generation G071 60A 3-6S 4-in-1 ESC 128K Drone ESC Suitable for FPV Drones
$76.28

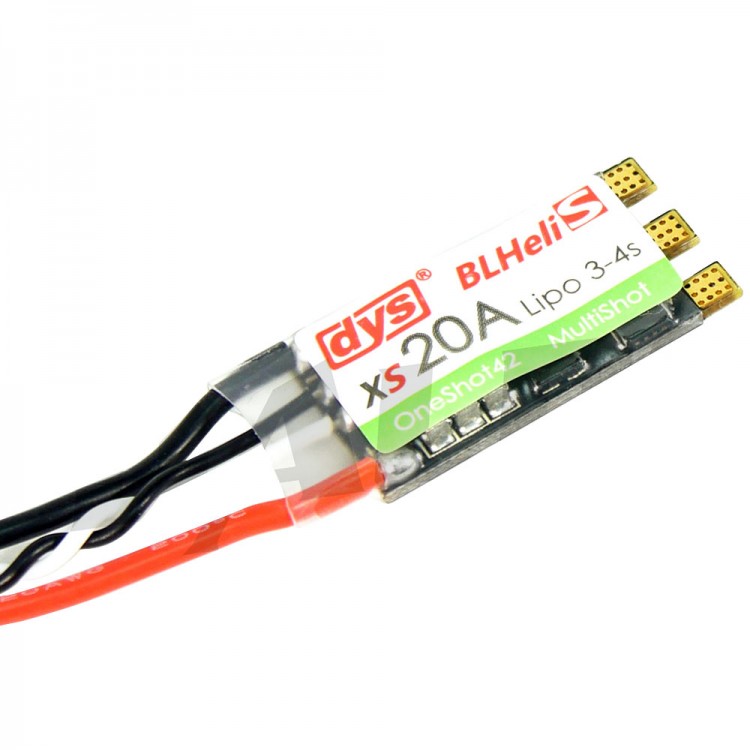

DYS XS20A FPV ESC Electronic Speed Controller 3-4S Lipo for Drone Quadcopter
Specification:
- Item Name: XS20A ESC Electronic Speed Controller solder version
- Input voltage: 3-4s Lipo
- BEC: NO
- Size(mm)L*W*H: 24*14*4.5mm
- Type: BLHeli Bootloader & BLHeli_S Firmware
- Weight: 4.49g
- Feature: Silabs EFM8BB2
- BLHeli_S ESC with Hardware generated PWM synchronous to MCU yields ultra-quiet motor performance.
- Utilizes high-performance EFM8BB2 50MHz MCU
- BLHeli_S does Damped Light only
- Firmware upgradable via signal wire (works with USB Linker for XM series)
- Supports Motors with super high KV (EFM8BusyBee 50MHz can handle up to 500k eRPM)
- Supports 1-2ms signal, Oneshot125, Oneshot42 and Multishot.
- High-current burst rating
- High-Resolution Throttle steps
Package inlcuded:
- 1x DYS XS20A FPV ESC
