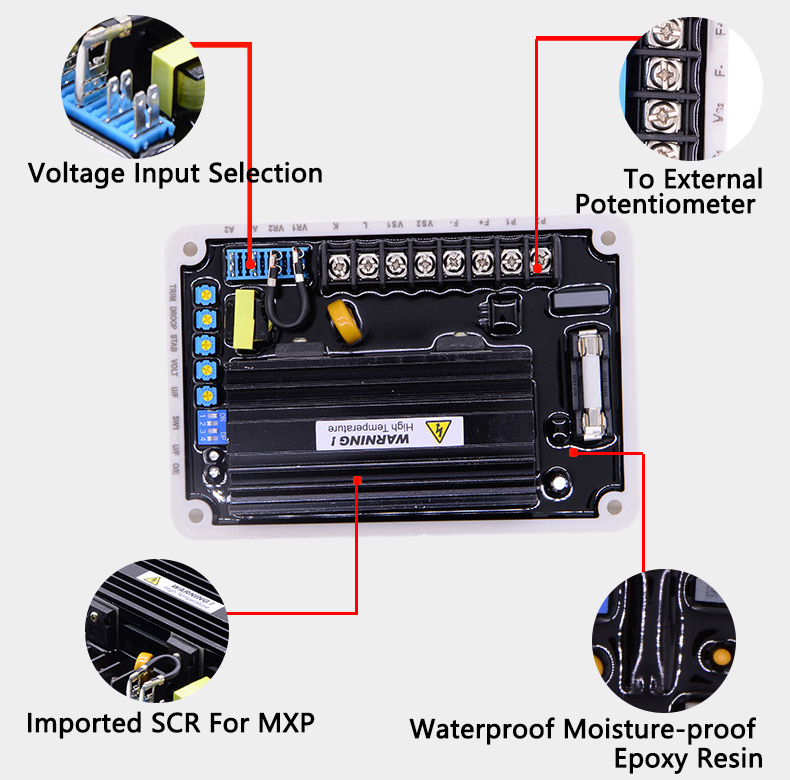

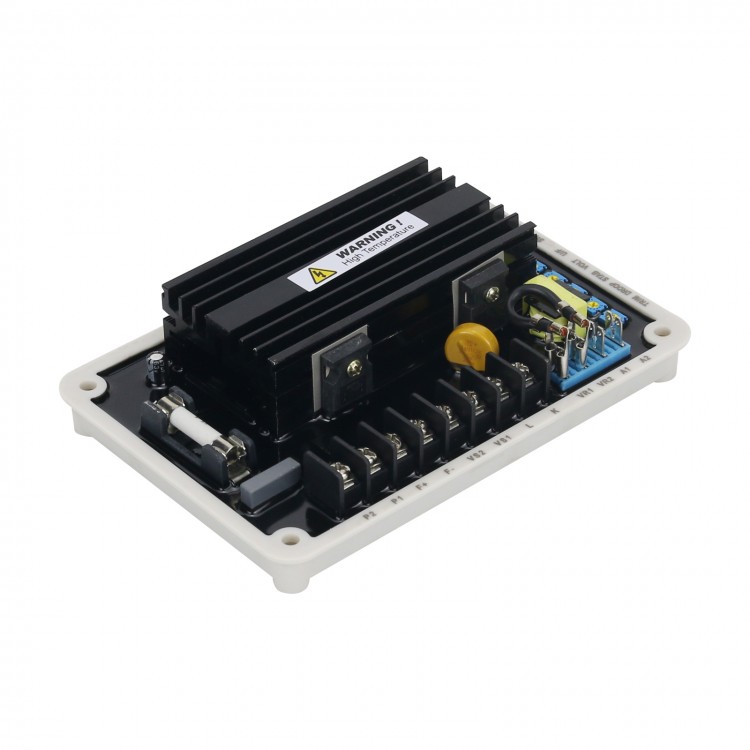

EA16A Generator AVR Premium Automatic Voltage Regulator Board Excitation Regulator Board
Features:
- Automatic voltage regulator
- Durable to use
- Stable performance
- Fast response
- Operate freely in high temperature environment
Specifications:
- Model: EA16A
- Power supply input: 60-300VAC, single-phase two-wire
- External voltage adjustment: ±5% when using 2K OHMS for IWATT potentiometer
- Voltage establishment: The AVR input terminal needs to be above 5VAC
- Support power: 10 WATT max
Package Included:
- 1 x AVR
