Eachine FPV Camera AIO 5.8G 40CH 25MW VTX 800TVL 1/3 Cmos for RC Quadcopter Drone EF-01

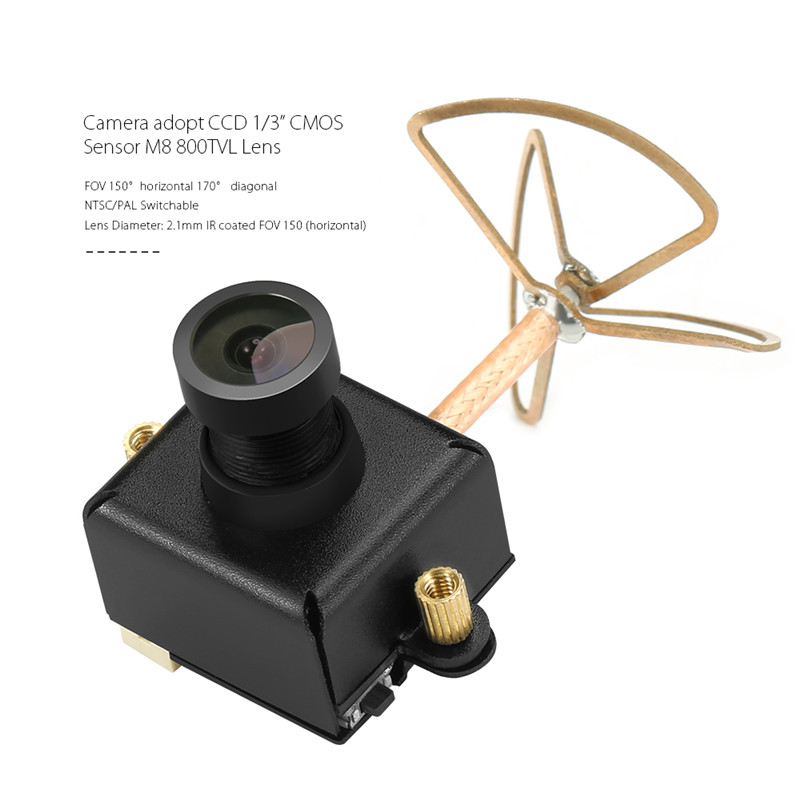

FPV Camera Specification:
- Sensor: 1/3 "CMOS
- FPV Camera lens: M8 800TVL Lens
- Angle: 150 ° FOV horizontal viewing angle of 170 degree DFOV diagonal perspective
- Format: NTSC / PAL (switchable)
- Power consumption: 380mA @ 3 · 7V
- Power: 3.6-5.5V
- Lens Mirror Diameter: 2.1mm IR coated FOV150 (horizontal)
Video Transmitter:
- Support video format: NTSC / PAL
- Output Impedance: 75 Ohm
- Output signal strength: 23 ~ 24dBm
- Output Power: 25mW
- Wireless Channel: 40CH
- Antenna: RHCP circular polarization clover leaf antenna
- Operating voltage: 3.6V ~ 5.5V
- Current: 100mA
- Audio carrier: 6.5MHz

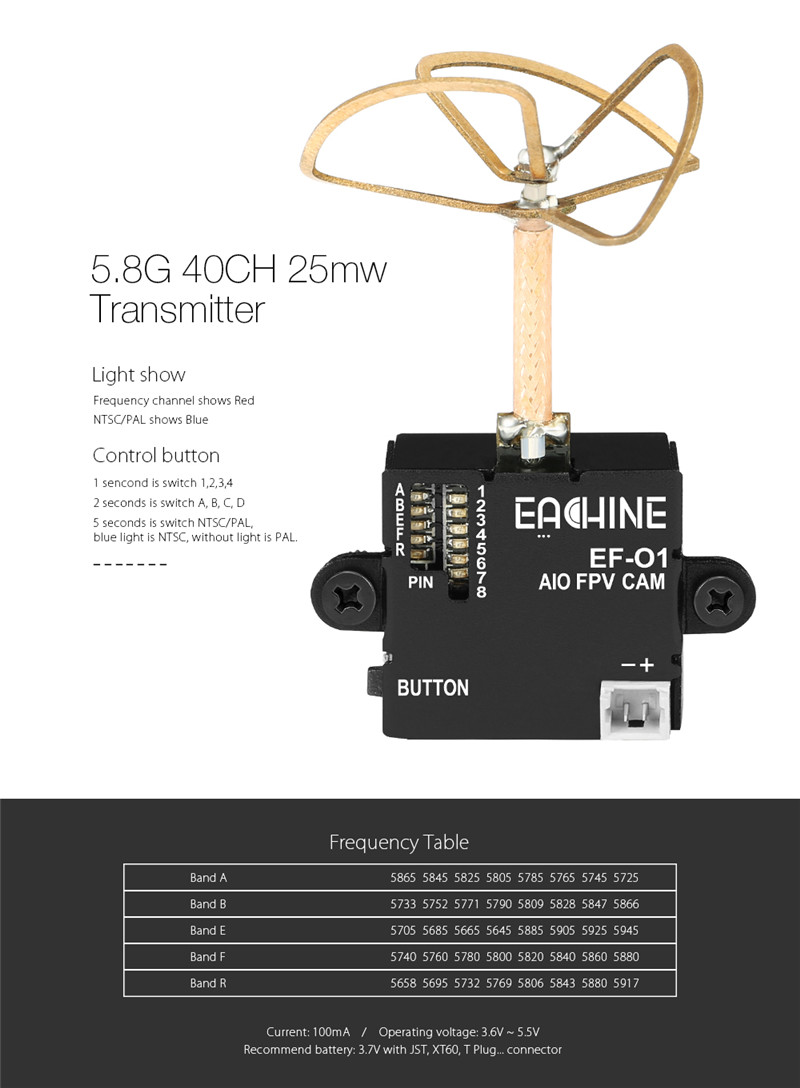

Button function
- Short press (Apr. 1 sec or less): Change channels 1-8
- Long press (More than 1.5 sec): Change bands A-B-E-F-R
- Long + press (More than 3 sec): Change NTSC/PAL system
- NTSC or PAL (selectable; Blue LED on= NTSC; Blue LED off=PAL)
Body
- Weight: 8g

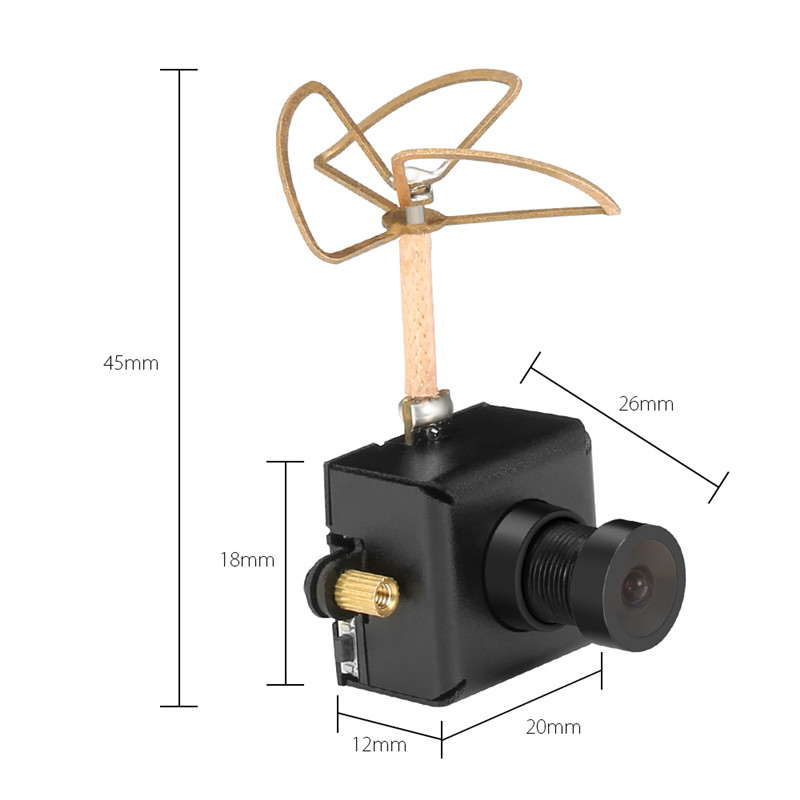

- Size: 26x20x18mm (without antenna)
Feature:
- AIO FPV camera, transmitter , atnenna all 3 functions in one limit size and weight
- 150 degree FOV horizontal viewing angle of 170 degree DFOV diagonal perspective
- Five bands 40 channels with Raceband

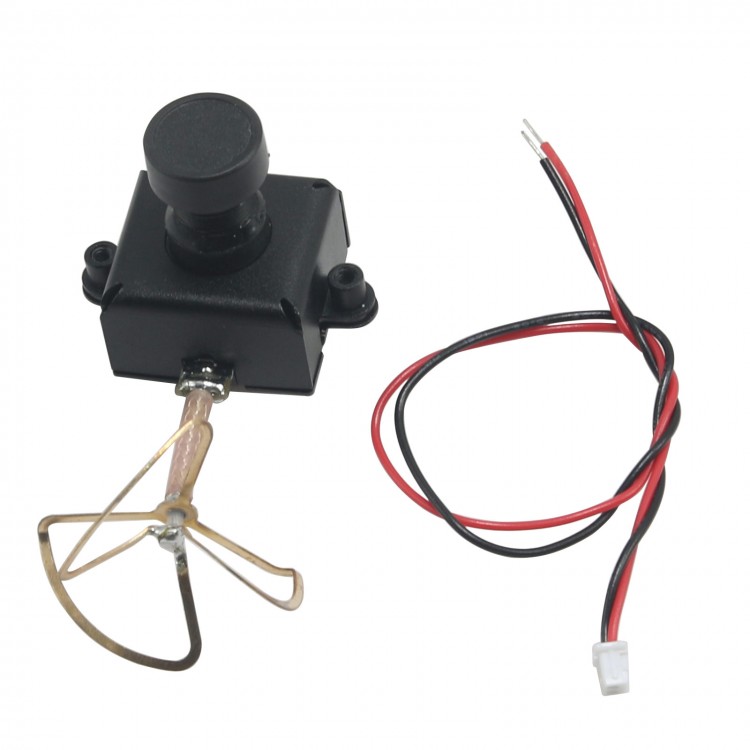

Package Included:
- 1 X EF-01 AIO FPV Camera
- 1 X Wiring harness
- 1 X User Manual
