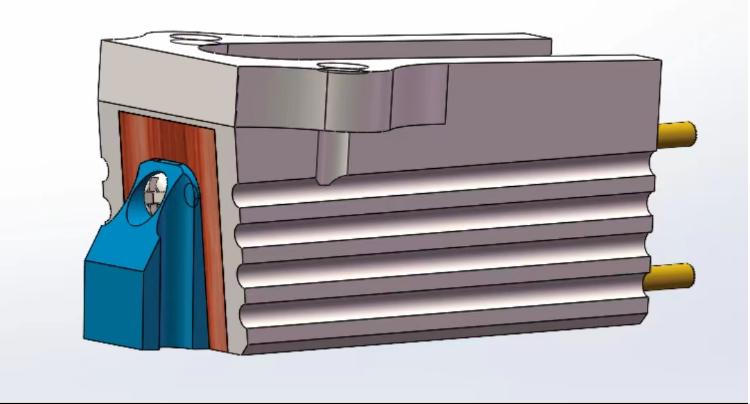

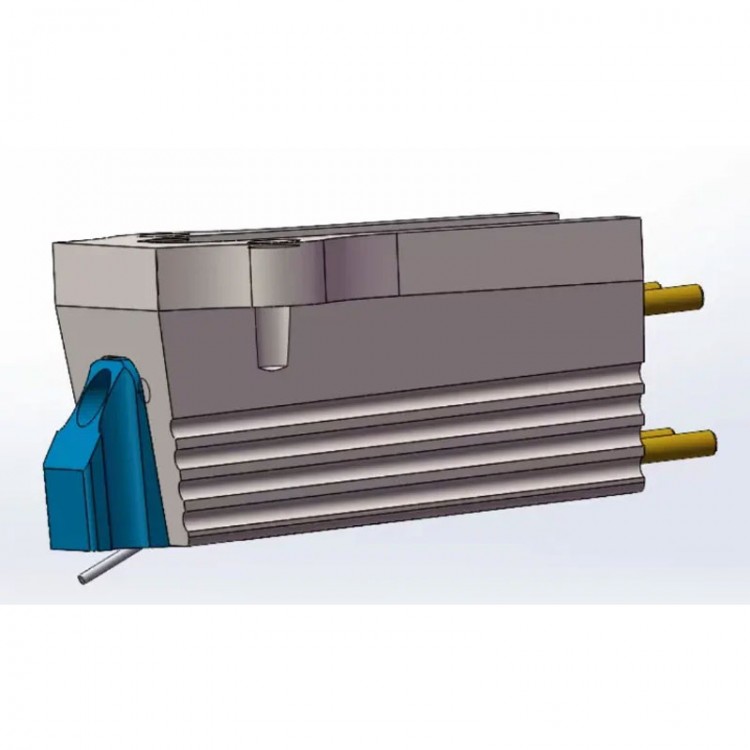

EAGLE 2.0 Super Vinyl Moving-Magnetic Cartridge Stylus High Performance MM Cartridge with 120ohm Internal Resistance
Features:
- It adopts the structural scheme and materials of advanced MM cartridge. It adopts 6N single crystal copper coil, advanced square magnet, flexible suspension, Superellipse diamond stylus and other advanced materials.
- Strong sense of space and field distribution
- The sound is beautiful and pleasant, and can play almost any unique music type, including vocal, percussion, string, symphony, etc.
- Excellent dynamic effects, the more advanced the system, the better it performs.
- With over 100um of super tracking power, even difficult to play records can be played smoothly with it.
Specification:
- Stylus material: aluminum, superellipse diamond stylus
- Impedance match: 47Kohm
- Frequency response range: 10 - 35KHz±1dB
- Output: 4mV±0.3mV
- Output balance degree: <1dB
- Separation degree: >20dB
- Tracking force: 1.5g (1.3 - 1.8g)
- Internal resistance: 120ohm
- Internal impedance: 200ohm
- Inductance: 100mH
- Distributed capacitance: 120nF
- Compliance: 6.6x10-6cm/dyne
- Weight: 9g
- Height (from back plate to stylus tip): 18mm
Package Included:
- 1 x MM Cartridge
