Eagle Micro Aeroplane Flight Controller A3

Eagle Micro Aeroplane Flight Controller A3

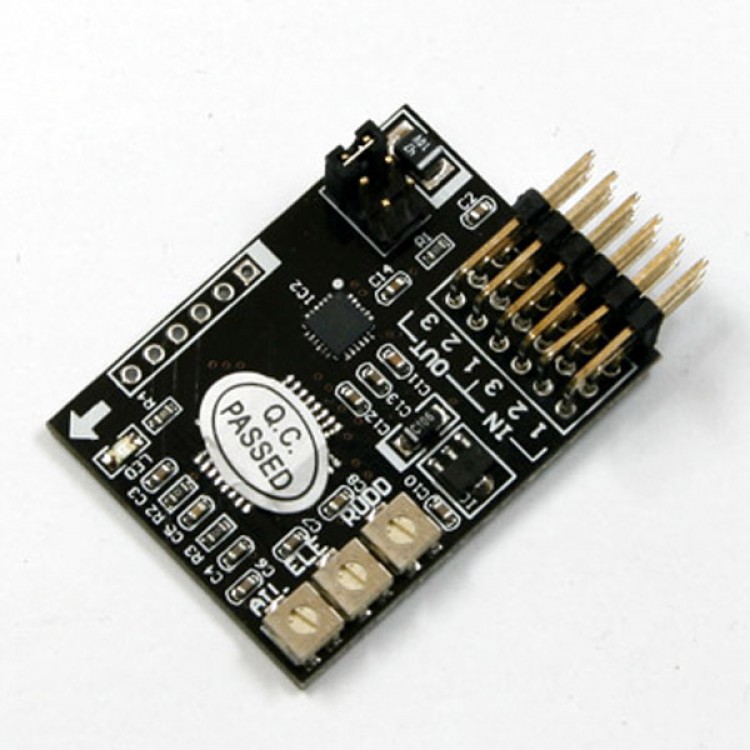

A3  is a flight control board designed specifically for fixed-wing airplane,which supports 3 model types including Normal Airplane, Flying Wing and V-Tail. With a high-precision MEMS digital three-axis gyro built in, it provides sound stability, flexibility and reliability by automatically correcting for channels of aileron, A3 has a 3-bit jumper for model type selection. Please match the type with your plane from among Normal Airplane, Flying elevator and rudder. Small size and light weight make it more adaptable for small airplane. ( In our test, it can significantly improve the control on small 3D airplane with wingspan under 50cm).

Features:
- Designed for 3 model types: Normal Airplane, Flying Wing and V-Tail, can be easily switched by the on-board jumper;
- Specifically optimized to work for 3D flight without undermining stability;
- Independent gyro gain adjustment for Aileron, Elevator and Rudder;
- Basic setting functions including stick centering and gyro reversing;
- Smaller and lighter, more adaptable for small airplane.

Specifications:
- Voltage Range: 4 - 6V DC
- PWM Output: 50Hz, 1020 ~ 2020us
- Full-Scale Range of Gyro: ±1000dps
- Sample Rate of Gyro: 1KHz
- Operating Temperature: -40 ℃ to 85 ℃
- Dimensions: 30×40mm
- Weight: 8 g

Click here to download this manual
