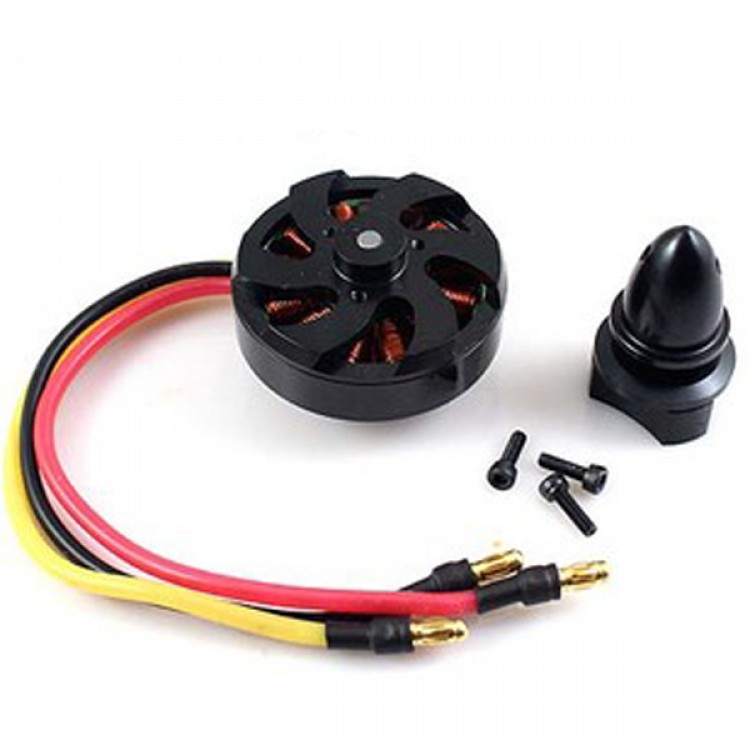

EagleKing 4215-650KV Multicopter Disk Type Outrunner Brushless Motor
Specification
- KV Value: 650KV
- Stator diameter:35mm
- Stator length:7mm
- Shaft diamension: 4.0*27
- Motor diamter:42mm
- Weight:82g
- No load current: ≤1.2A
- Recommended battery:11.1V
- Max current:15.7A
- Max efficiency:232.36
- Motor Efficient:（4-12v) 83%
- Inner resistance:0.114
Test Data:
|
Volts |
Amps | Watts | Thrust | |
| APC 12x3.8SF | 11.96 | 13.85 | 165.6 | 1'25" |
| APC 12x3.8SF | 15.6 | 22.1 | 341.6 | 3'9" |
| APC 10x4.7SF | 12.01 | 9.55 | 114.1 | 1'10" |
| APC 10x4.7SF | 15.6 | 14.75 | 230.1 | 2'9" |
