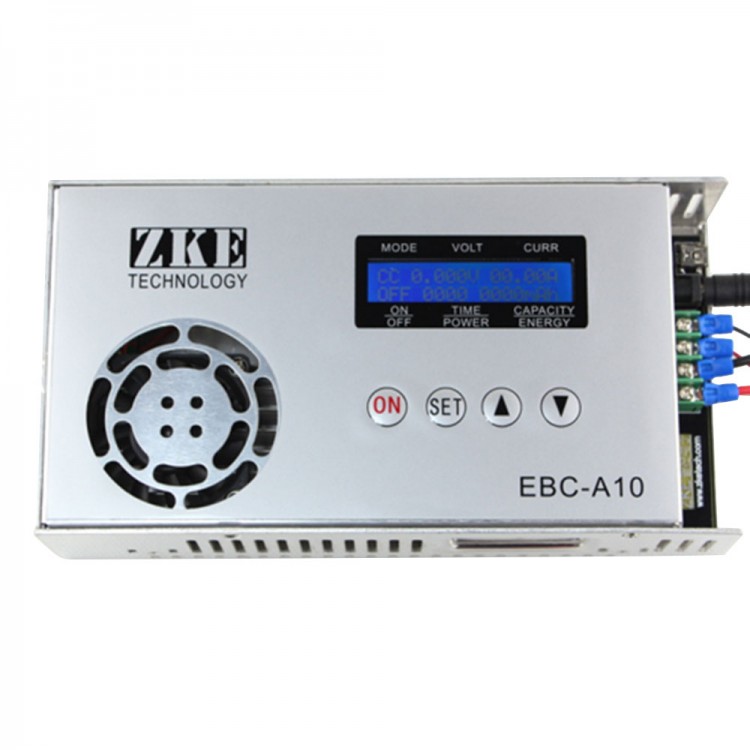

EBC-A10 Electric Load Li/Pb Battery Charging/Capacity Test Power Performance Tester Charger
User manual download link:Click
Description
Features:
1. Battery Capacity Test
This tester is designed for charging Li/Pb batteries and discharging of a wide range of batteries,, as well as the capacity test.
2. Portable Power Bank Test
This tester supports charging and discharging of portable power banks, as well as capacity test.
3. Power Performance
Test This tester supports performance and aging tests of various kinds of DC power supplies.
Specifications:
1) Power Supply: DC 12V-19V/3.5A or above ( not included)
2) Voltage Range: 0-4.500V/4.50V-30.00V
3) Current Range: 0.1-10.00A（ 5A Max for charging）
4) Charging Function:
CV Charging: Support custom CC-CV charging
5) Discharging: (0-30.00V, 0.1-10.00A, max power 60W and automatic current limiting above)
CC Discharging: Discharging a relatively uniform current, support testing battery capacity or current of power supplies
CP Discharging: Discharging a relatively uniform power, for constant power equipment-like use or testing power
6) Automatic Charging/Discharging: The tester support “charging-discharging-charging” mode in capacity tests.
7) LCD Display: voltage, current, time, capacity, power, energy, and etc
8) PC Connection: The tester can be connected to a computer through a designated USB-TTL cable to have more functions.
Precautions:
1) Positive and negative connections should not be reversed.
2) Always use the tester within the allowed range.
3) The maximum charging voltage should be set below power voltage – 2V.
4) This manual is applicable to firmware 08-24. Please download the latest software for a upgrade if your version is released earlier than the date.
Note:This model does not support nickel-metal hydride and nickel cadmium and mobile power charging tests.If you need to measure this batteries can buy EBC-A05.
If you need the more informations please read the PDF document.
Package included:
1 x EBC-A10 Electronic Tester
1 x Test fixture
1 x EBC-A10 User Manual(PDF Document), other software will send by email if you need.
pls note, the power supply not included
