EBC-A10H Li/Pb Battery Charging Capacity Test Power Performance Tester & Charger + USB to TTL Cable

EBC-A10H Li/Pb Battery Charging Capacity Test Power Performance Tester & Charger + USB to TTL Cable

Features:
- Battery Capacity Test
This tester is designed for charging Li/Pb batteries and discharging of a wide range of batteries,, as well as the capacity test.
- Portable Power Bank Test
This tester supports charging and discharging of portable power banks, as well as capacity test.
- Power Performance
Test This tester supports performance and aging tests of various kinds of DC power supplies.

Specifications:
- Voltage Range: 0-30.00V
- Current Range: 0.05-10.00A for discharge; 0.05-5.00A for charge
- Charging Function:
CV Charging: Support custom CC-CV charging
- Discharging:
CC Discharging: Discharging a relatively uniform current, support testing battery capacity or current of power supplies
CP Discharging: Discharging a relatively uniform power, for constant power equipment-like use or testing power
- Automatic Charging/Discharging: The tester support “charging-discharging-charging” mode in capacity tests.
- LCD Display: voltage, current, time, capacity, power, energy, and etc
- PC Connection: The tester can be connected to a computer through a designated USB-TTL cable to have more functions.

Precautions:
- Positive and negative connections should not be reversed.
-  Always use the tester within the allowed range.
- The maximum charging voltage should be set below power voltage – 2V.

Charge 22V,discharge 30V.

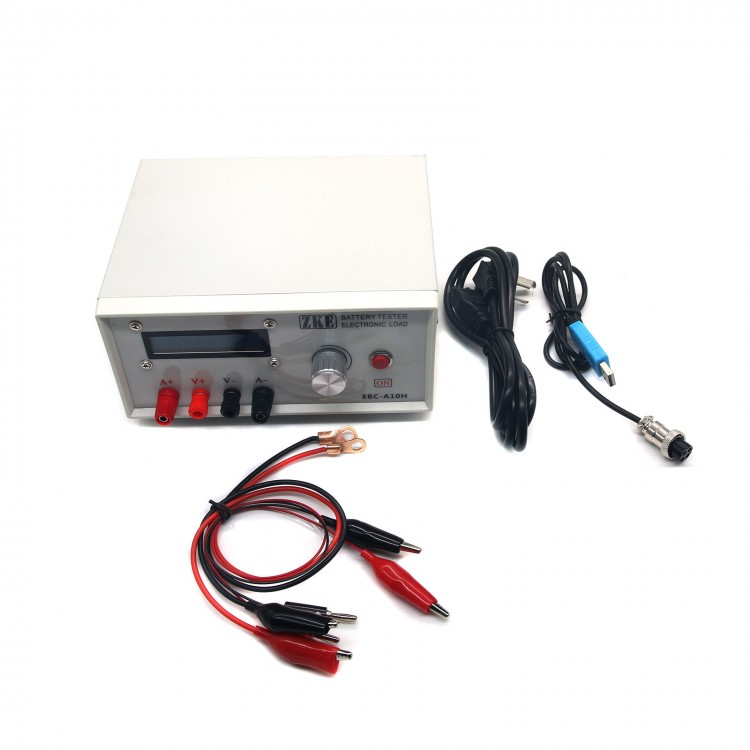

 Package included:
- 1 x EBC-A10H Electronic Tester
- 1 x Test fixture
- 1 x USB to TTL cable (AC 220V)
