EBC-A20 Li-po Battery Capacity Tester 5A Charge 20A Discharge 85W Multifunction Battery Test
Description:
- EBC-A20 is a battery test instrument with charge and discharge functionTo test the capacity of lithium battery / lead acid (charge discharge 20A, maximum power 5A, 85W), support separate charge and discharge and a discharge charge test support connected to the computer, can repeatedly charge and discharge and has extended functions through online software
- The maximum discharge power 85W, within 4.2V, can be 20A, 8.4V can be 10A, and higher voltage is less than 10A
Note: this model does not support Ni MH, Ni Cd charging and power test, and requires such functions Optional:
EBC-A05 or EBC-A10H
Specification:
- Power supply: DC19V-20V,current Above 3.5A
- Voltage setting:0.00-30V,minimum step is 0.01V ( Max 18V when charge)
- Current setting: Discharge/0.1A-20A, minimium 0.01A (auto current limitation when over power comsumption)
Charge:0.1A-5A,minimium 0.01A (auto current limitation when over power comsumption)、
- Mode:
DSC-CC (constant current discharge): Constant discharge current,used for test battery capacity
DSC-CP (constant power consumption): Constant discharge current,used for analog power consumption device
CHG-CV (constant current charge): Constant discharge current,support Lipo battery capacity test
- Automatic Charge and Discharge:SupportCharge-Discharge-Charge Model and test battery capacity test
- Voltage test: 0.0-4.5V (low voltage),precision up to 0.003V
4.5V-30V(high voltage),precision up to 0.01V
- Current test:0.1-20A,precision up to 0.01A
- Capacity test accuracy: 10Ah/0.001Ah 10A-100A/0.01A 100A above/0.1A
- Wire connection: 4 wires test,voltage test and current test via different cable to ensure acuuracy
- LCD Display:Voltage/Current/Capacity/Time/Power consumption and other data
- Computer connection: USB to TTL cable

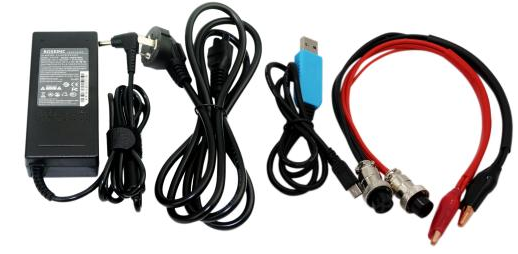

Parts included:
- 1 x Power Cable
- 1 x Power Charger
- 1 x Online cable
- 1 x Clamp cable
