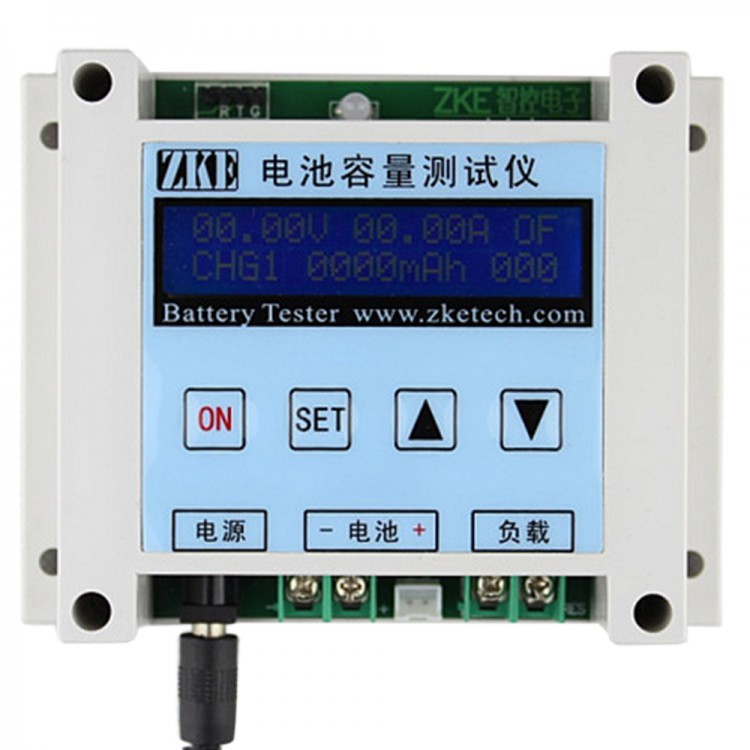

Features:
- This tester is designed for testing capacities of LiPo, LiFe and Pb batteries (packs) within 20V.
- It supports charging and discharging, five-step settings and automatically testing.
Specifications:
- Power Supply: DC 12V/19V above 4A
- Charging current range: 0.50-5.00A
- Discharging current range: 0.50-10.00A
- Cut-off voltage: 2.00-20.00V
Test modes:
DSC-CC: In this mode, the tester can discharge batteries/packs at a constant current. You can
set discharge current and cut-off voltage. When the testing voltage reaches below the set value,
the tester will stop discharging automatically.
CHG-CV: In this mode, the tester can charge batteries/packs at a constant current or current
voltage. You can set constant current and when the testing current reaches below the set value,
the tester will stop charging automatically.
Testing steps: The tester supports five-step settings. It allows you to set it charging or
discharging at each step and the tester works even not being connected with a computer.
LCD Display: Voltage, current, time, capacity and etc (switch to different data by pressing
on buttons)
PC Connection: The tester can connect with a computer through a designated USB-TTL
cable for more functions.
Software and Instructions: Click here
Package included:
- 1 x Battery Capacity Tester
- 1 x Tester clip line
- 1 x 0.9R/150W resistor
- 1 x 0.2R/150W resistor
- 1 x 19V 4A power supply
- 1 x USB to TTL online cable
