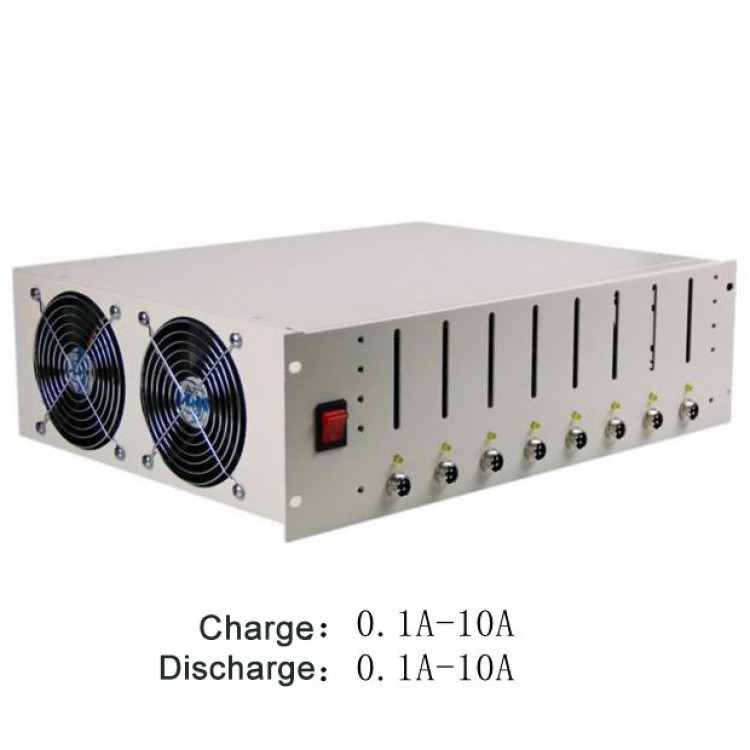

EBC-X 8 Channels 18650 Battery Capacity Tester No Battery Holder Charge & Discharge 10A Aging Test
Description:
The battery testers of this series are designed for battery testing and cell grading and can be adopted to a wide range of batteries like Lead-Acid, Li-Fe and Li-Ion.
User Manual Click Here:
https://pan.baidu.com/s/1eS0y2wa
Save PC Software Here:
9553190.s21d-9.faiusrd.com/0/ABUIABBQGAAgx9PD2AUorrXBhwU?f=EBX+Software+%28English+Version%29.rar&v=1527835079
Specifications:
- Model: EBC-X
- Voltage Range: 0-4.500V
- Voltage Accuracy: 0.1%±0.003V
- Current Range: 0.1-10A
- Current Accuracy: 0.2%±0.005A
- Discharging Mode: CC
- Discharging Current: 0.1-10.00A
- Discharging Termination: Time/Cut-off Voltage/Manual
- Charge Mode: CC-CV
- Charge Current: 0.1-5.000A
- Charge Termination: Time/Cut-off Current/Manual
- Testing Channel: 8 Separate Channels
- Heat Dissipation: Fan
- Power Supply: AC 220V (200-240V AC)
- Packed Size: 485*410*140mm
- Packed Weight: About 14KG
Precautions:
- Please switch on the tester before you connect it to your computer.
- Please remove all batteries from your tester before you switch it off.
- Not support testing batteries in series.
- Always use the tester within the allowed range.
- Follow calibration instructions in case improper operation reduce precision

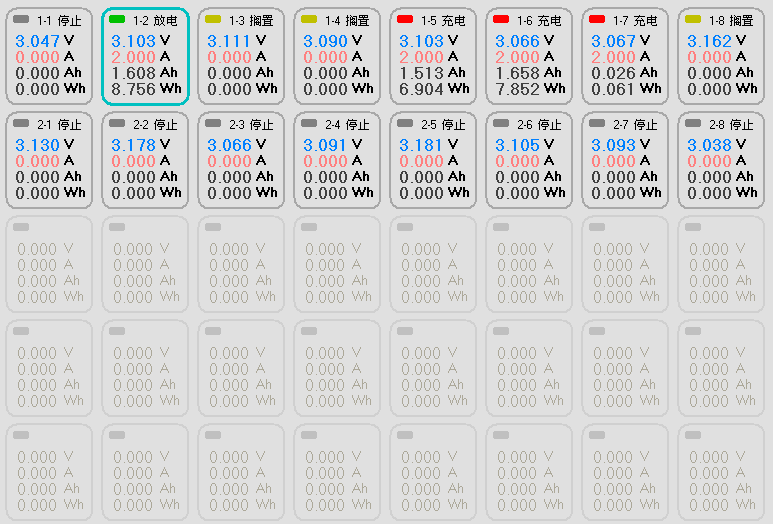

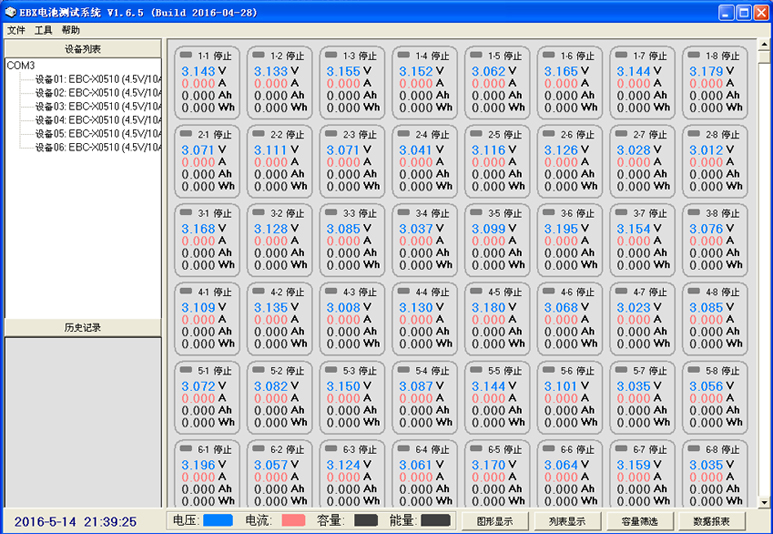

PC Software Display:

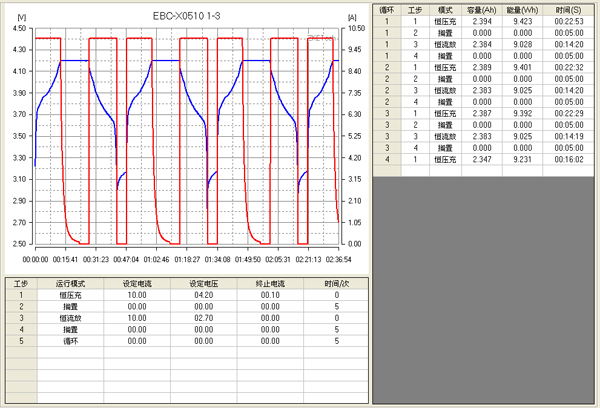

Test Picture:
Package Included:
- 1 x EBC-X Battery Capacity Tester No Battery Holder
- 8 x Test Cables
- 1 x USB to TTL Cable
- 1 x Power Supply Cable
