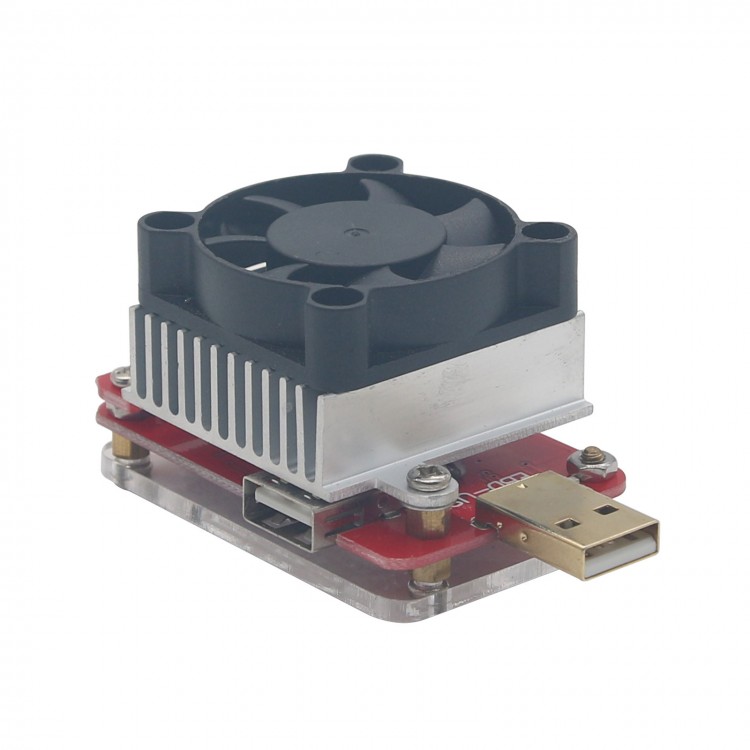

EBD-USB Load QC2.0 3.0 MTK-PE Trigger Voltage Current Monitor Capacity Tester Detector MINI Interface

EBD-USB Load QC2.0 3.0 MTK-PE Trigger Voltage Current Monitor Capacity Tester Detector MINI Interface

Description:
EBD-USB is a dedicated USB small load for testing the mobile power and charging head, support QC and MTK protocol for charging voltage trigger detection and USB charging voltage current measurement. (Using through EB software online).

Specification:
- Power supply: on line power supply (5V)
- Voltage range: 0.05-13.50V
- Current range: 0.05-4.000A
- Test mode: constant current discharge, QC2.0/3.0 trigger, MTK-PE trigger, USB current voltage detection
- Maximum power: 25W
- Computer control software: support EB online software testing (computer control, drawing curves, calibration measurement benchmark, upgrading equipment firmware, power supply current testing, etc.)

EBD-USB standard verion V1:
- Voltage range:0~13.5V
- Voltage accuracy:0.2%+5mv
- Current range:0.03-4A
- Current acccuracy:0.2%+2mA
- Resolution:1mA
- D+D-voltage:not support
- Constant current discharge:0.03-4A
- The max power:25 W
- Quick charge trigger:QC2.0/QC3.0/MTK-PE
- Testing function:capacity test,current test,voltage current test,curve record
- Suitable for:mobile power,charging head,USB electricial application
- Power supply:5V MicroUSB port
- Computer online:MicroUSB port
- Testing software:EB testing system software

EBD-USB EBD-USB standard verion V2:
- Voltage range:0~13.5V
- Voltage accuracy:0.2%+1mv
- Current range:0-4A
- Current acccuracy:0.2%+1mA
- Resolution:1mA
- D+D-voltage:not support
- Constant current discharge:0.01-4A
- The max power:25 W
- Quick charge trigger:QC2.0/QC3.0/MTK-PE
- Testing function:capacity test,current test,voltage current test,curve record
- Suitable for:mobile power,charging head,USB electricial application
- Power supply:5V MicroUSB port
- Computer online:MicroUSB port
- Testing software:EB testing system software
- Voltage range:0~13.5V
- Voltage accuracy:0.2%+1mv
- Current range:0-4A
- Current acccuracy:0.2%+1mA
- Resolution:1mA
- D+D-voltage:not support
- Constant current discharge:0.01-4A
- The max power:25W
- Quick charge trigger:QC2.0/QC3.0/MTK-PE
- Testing function:capacity test,current test,voltage current test,curve record
- Suitable for:mobile power,charging head,USB electricial application
- Power supply:5V MicroUSB port
- Computer online:MicroUSB port
- Testing software:EB testing system software

EBD-USB+ Enhanced version V1:
- Voltage range:0~21V
- Voltage accuracy:0.1%+1mv
- Current range:0-4A
- Current acccuracy:0.2%+0.2mA
- Resolution:0.1mA
- D+D-voltage:support
- Constant current discharge:0.01-4A
- The max power:35    W
- Quick charge trigger:QC2.0/QC3.0/MTK-PE
- Testing function:capacity test,current test,voltage current test,curve record
- Suitable for:mobile power,charging head,USB electricial application
- Power supply:5V MicroUSB port
- Computer online:MicroUSB port
- Testing software:EB testing system software

Note: This is the Mini interface that needs the online cable.

Brief Introduction of usage:
1. Download EB V1.8 Build 1018 software and PL2303 drive and install: Click here http://zke2006.blog.163.com/blog/static/199527095201111284512232/
2. EBD-USB MicroUSB data cable (or MiniUSB) connected with the computer
3. Find the corresponding port in the computer device manager (which can refer to the software instructions)
4. Open the EB software, select the corresponding port, connection equipment and testing

Package included:
- 1 x Tester
