| Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
|---|---|---|---|---|---|
| Price /Unit | $94.43 | $92.51 | $89.61 | $85.76 | Contact US |
5pcs Top Suction Plates Rubber Suction Pad (125mmx75mmx17mm with Large Hole) for Vacuum Blocks
$39.60
5pcs Top Suction Plates Rubber Suction Pad (125mmx75mmx17mm with Small Hole) for Vacuum Blocks
$39.60
5pcs Top Suction Plates Rubber Suction Pad (140mmx130mmx17mm) Spare Parts for Vacuum Blocks
$66.64

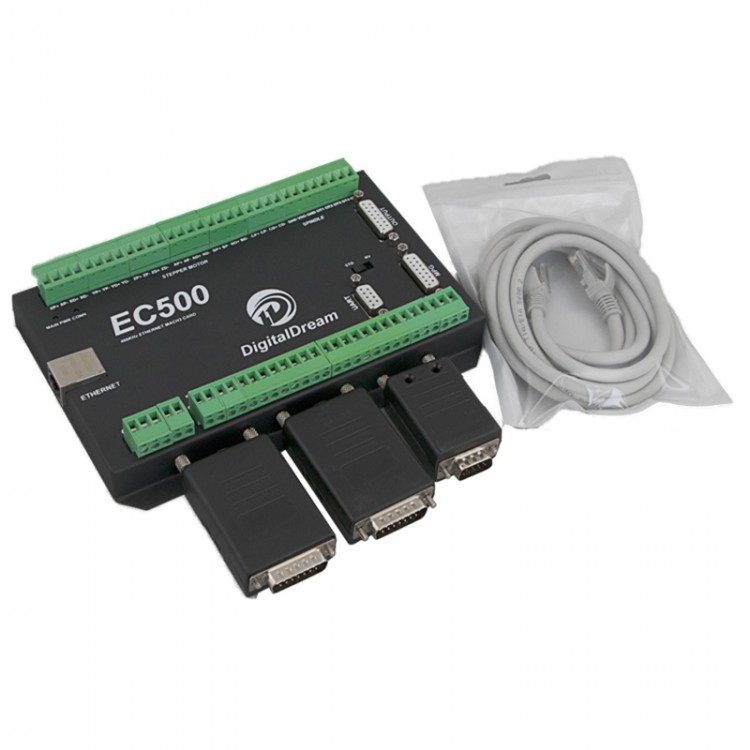

EC500 3 Axis Motion Controller 3Axis CNC Controller for Mach3 with Ethernet Communication
Specifications:
- Motion control 3 Axis, max frequency output 460Khz/Axis;
- Ethernet Communication with Mach3 software;
- Main power supply 24VDC, Current should higher than 1A;
- IO Power is 24VDC power supply Voltage input, current should higher than 1A(By the IO power supply, system already supply the power for IO ports. So no need the external power supply for IO port anymore.);
- 18 opto-isolated digital input ports, 16 opto-isolated digital output ports;
- 1 analog output port of 0-10V adjustable speed for spindle (can change to PWM output port);
- ARM motion control chip, Two Relay output;
- Compatible with Standard MPG and also Digital Dream MPG.
Package Included:
- 1 x Motion Controller
- 1 x Cable
- 3 x Terminals
Note: Please contact us for EC500 User Manual and EC500 DLL File after purchasing. Thank you!
