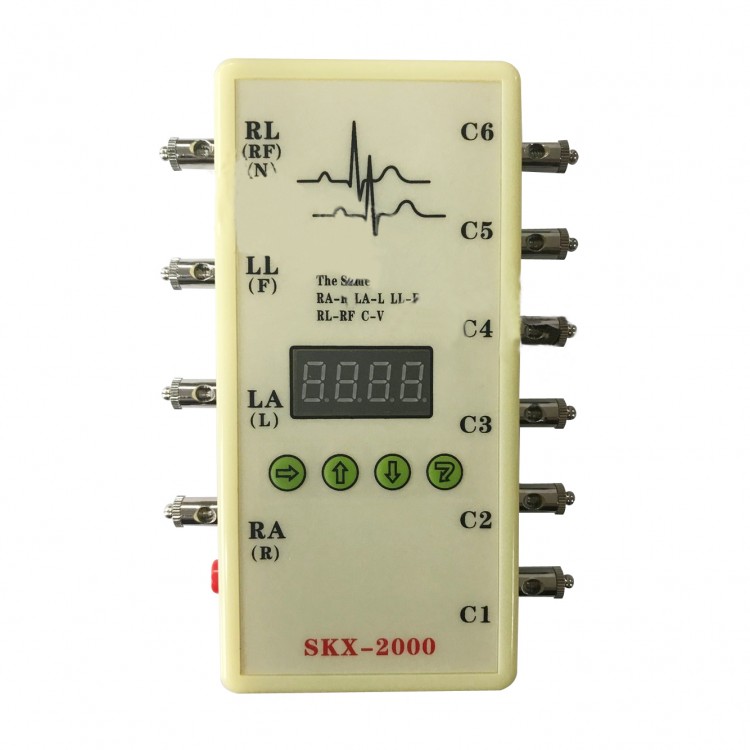

ECG Signal Generator ECG Simulator Generate Respiratory Waveform Multiple Waveforms SKX-2000D

ECG Signal Generator ECG Simulator Generate Respiratory Waveform Multiple Waveforms SKX-2000D

Features:
- Large capacity enables long running time.
- Rechargeable type. The voltage of charger cannot be higher than 4.2V. Please not over discharge.
- 10 universal ECG adapters can be connected to the lead wires of various electrocardiographs and monitors.
- Green light of the charger indicates that charging is completed. The brighter the red light, the low the electricity.
- Automatic shutdown when there is lower electricity.

Functions:
- Produce normal ECG waveform
- Produce positive and negative triangle waveform
- Produce analog triangle waveform for arrhythmia waveform
- Produce square wave to measure scanning speed
- Generate sine wave to measure amplitude frequency characteristics
- Generate simulated respiratory waveform
- Generate calibration waveform (1MV)
- Set signal amplitude

Waveform Introduction:
1.Normal ECG Waveform:
★ Heart Rate Setting Range: 10-200bpm (Initial value: 60 bpm)
★ The signal amplitude is fixed.

2.Positive and Negative Triangular Waveform:
★ Frequency Range: 10-300bpm (Initial value: 75 bpm)
★ Amplitude Range: 0.1-4Mv (10:0.1mV, 400:4mV)
★ 2 Modes: Mode 1: Forward Waveform. Mode 2: Negative Waveform. Select via combination key.

3.Arrhythmia Waveform:
★ Frequency Range: 20-250bpm (Initial value: 80 bpm)
★ Amplitude Range: 0.1-4Mv (10:0.1mV, 400:4mV);
★ 2 Modes: Mode 1: Big waveform is downwards. Mode 2: Big waveform is upwards. Select via combination key.

4.Square Wave:
★ Frequency Range: 0.1Hz-10Hz (10:0.1Hz 100:10Hz); (Initial value: 1 Hz)
★ Amplitude Range: 0.1-4Mv (10:0.1mV, 400:4mV)

5.Sine Waveform:
★ Frequency Range: 1-100Hz (Initial value: 10 Hz)
★ Amplitude Range: 0.1-4Mv (10:0.1mV, 400:4mV)
★ The waveform is superimposed by DC component in the range of 0.1mV-3mV (10:0.1mV, 400:4mV)
★ Select parameters to be changed by combination key. Mode 1: Frequency. Mode 2: Superimposed DC Component (10:0.1mV, 400:4mV).

6.Simulated Respiratory Waveform:
★ Frequency Range: 5-100 beats / min. (Initial value: 10 bpm)
★ Respiratory lead is RA-LL. If the default setting of the monitor respiratory lead is not the two leads, please switch the monitor settings or change the connection of the lead wire.
★ At this moment, its heart rate value is fixed.

7.Calibration Waveform:
★ Amplitude: 1mV. Width: 100mS
★ Frequency Range: 60bpm

8.Signal Amplitude Settings:
★ Amplitude Range: 0.1mV-4mV (10:0.1mV, 400:4mV); (Initial value: 100)
★ Please note that the amplitude setting will affect all waveforms except the ECG waveform.

Package Included:
- 1 x ECG Simulator
- 1 x Instructions
- 1 x Charger
- 1 x Waveform Comparison Chart
- 1 x Quality Certificate

Note:
- After the simulator is powered on, a normal ECG waveform with a waveform of 1 is automatically generated. II lead is an amplitude-corresponding lead with a default amplitude of 1 mV.
- When there is no operation for 24 hours, it will enter into standby state automatically and you can trigger any button to reset the time to zero.
- The color of its rear cover the the device might be changed. Please make sure you don't mind before purchasing. Thank you!
