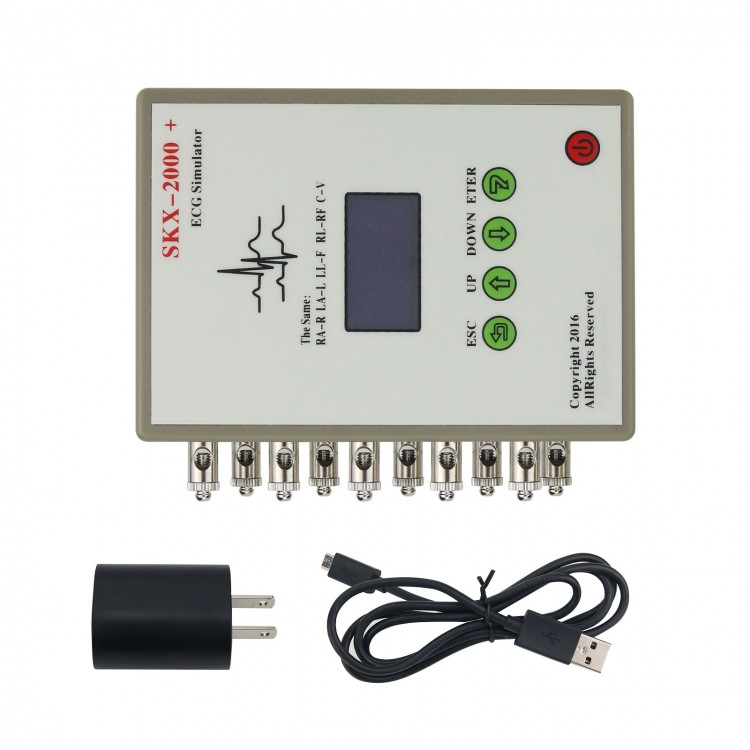

ECG Simulator ECG Signal Generator with OLED Display Rechargeable Type SKX-2000C+

ECG Simulator ECG Signal Generator with OLED Display Rechargeable Type SKX-2000C+

Description:
Because it can generate a variety of human ECG signals, it is an essential tool for the development of ECG products. It has a wide signal amplitude range and can simulate a variety of amplitude and frequency ECG signals. This simulator also has the detection function of ECG products. It is used to detect whether the parameters of ECG products can meet the requirements of national standards.

Features:
- With 10 universal ECG connectors, it is quick to connect the lead wires of ECG products such as monitors and electrocardiographs.
- Built-in power management module ensures stable power supply and low interference output during use. Optional standard micro usb universal interface power charger.
- Menu-style operation makes it easy for users to change parameters and do settings.
- OLED display shows the menu content clearly.
- Easy to operate with simple button operation and menu management.
- Built-in Chinese-English waveform setting instructions enables easy understanding of waveform settings and parameter selection.

Types of Waveforms:
- ECG Waveform: Two different simulated human ECG waveforms
- Sharp Angle Waveform: Detect heart rate accuracy and waveforms within heart rate range
- Calibration Waveform: Used to calibrate the standard amplitude signal of ECG device

ECG Waveform:
- Ordinary ECG: Heart Rate Range of 20 bpm-300 bpm
- Sinus Electrocardiogram: Heart Rate Range of 20 bpm-100 bpm

Sharp Angle Waveform:
- Heart Rate Range: 20 bpm-400 bpm
- Amplitude Range: 0.1mV-4mV
- Direction: Up and Down

Package Included:
- 1 x Set of ECG Simulator
