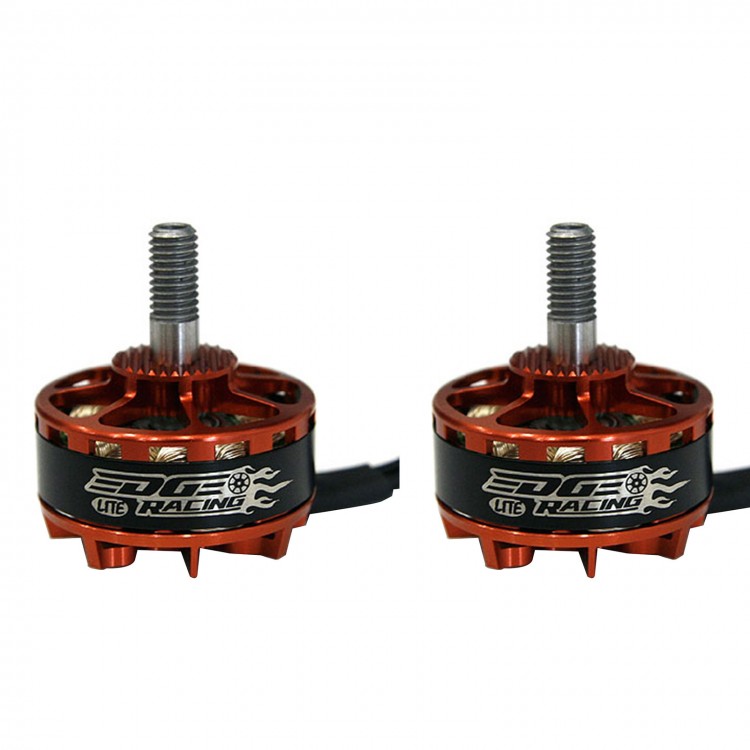

Edge Racing Lite 2205 2300KV CW CCW Brushless Motor for Multicopter Quadcopter FPV 1-Pair
Specifications:
- KV: 2300
- Stator diameter: 22mm
- Stator length: 5mm
- No. of stator arms:12
- No. of stator poles: 14
- No-load current(A/10S): 1
- Max continuous Power(W) : 385W
- Max continuous current: 26A/10s
- Internal resistance: 53mΩ
- Weight: 28g
- Outside diameter: 28mm
- Shaft diameter:5mm
- Body length:18.5mm
- Overall shaft length:31.5mm
- No.of cells (Lipo): 2-4S
- ESC:30A-40A
- Recommended Pro(inch):HQ5*3,HQ5*4,HQ5*4.5
Package included:
- 1x Edge 2300KV CW motor
- 1x Edge 2300KV CCW motor
