Description:
- EEGM102/EEG102 is a wireless Bluetooth module based on the KS1092 chip for collecting and processing frontal EEG signals.
- This module integrates KS1092 dual channel low noise, low-power EEG acquisition front-end chip and low-power 32-bit Bluetooth processor MCU for ARM Cortex-M4F.
- The module supports high-precision EEG signal acquisition with four or five metal electrodes on the forehead. It integrates a high-energy efficient dual channel EEG pre-processing and analysis algorithm through embedded integration, and provides a self-developed SDK algorithm package that can output raw EEG data, α, β, γ, δ, θ (alpha, beta, gamma, delta, theta spectra), as well as quantified EEG focus values, left and right brain emotion values, relaxation, meditation, and other indicators.
- The module has high precision, small size, and low power consumption, providing users with an easy to develop and use hardware and software integrated solution for the development of wearable wireless EEG/brain computer interface BCI products.

Features:
- Support dual frontal EEG signal acquisition.
- Support four or five conductive paste electrodes & metal dry electrodes.
- Low power consumption of about 5mA.
- Electrode wearing detection.
- Bluetooth wireless data transmission.
- Embedded high-performance EEG signal acquisition and analysis algorithm.
- Output dual channel raw brainwave signals.
- Output multi frequency band α, β, γ, δ, θ EEG waves.
- Output EEG characteristic values, including concentration, emotion, stress, relaxation, meditation, blinking, sleeping point, heart flow, etc. (EEGM102)
- Output EEG characteristic values, including concentration, emotion, stress, relaxation, meditation, blinking, gritting teeth, etc. (EEG102)
- The app software supports waveform examples and data storage.
- EEG characteristics and EEG signal analysis:
  Focus
  Customized EEG feature value output suitable for different application scenarios
  Left and right brain power assessment (activity, synchronicity, etc.)
  Psychological state assessment (anxiety, mental stress, etc.)
  Emotional state evaluation (excitement and valence, etc.)
- Provide multi platform SDK development packages. APP (for iOS, Android), Unity, Uniapp, Mini programs, etc. (EEGM102)
- Provide for Android platform SDK development package (for Android) (EEG102).
- Module size 12mm x 20mm x 2mm (EEGM102)
- Module size 12.8mm x 1 9mm x 2mm (EEG102)
- The peripheral support circuit is simple, easy to develop and apply.

Application:
- Wearing EEG: EEG headset for focus, meditation, emotions, brain load, sleep monitoring, etc.
- Brain controlled entertainment/human-computer interaction: brain controlled toys, VR EEG, EEG interactive games, mind control, etc.
- Collection of other weak electrical signals, such as electromyography (EMG) and millivolt/microvolt level weak signal detection.

KS EEGM102/EEG102 Bluetooth EEG Kit:
- EEGM102-Kit/EEG102-Kit is a dual channel frontal EEG evaluation kit for wireless Bluetooth EEG modules EEGM102/EEG102. The kit includes EEGM102/EEG102 modules, functional base EEGM102-Base/EEG102-Base, flexible FPC metal electrodes, and lithium batteries. Combined with the accompanying mobile app software, it can achieve real-time energy state map and quantitative EEG feature spectrum display of EEG signals. This kit provides users with an instant solution for wireless EEG module EEGM102/EEG102 or KS1092 chip performance testing, and combined with SDK development kits, can achieve rapid wireless EEG product development.

Specification:
- Channel: 2 channels
- Electrodes: dry electrodes/wet electrodes
- Sampling rate: 250SPS/CHL for EEGM102; 500SPS/CHL for EEG102
- Pin: contact pin/paster for EEGM102; paster for EEG102
- SDK:
  EEGM102: for Android, iOS, Unity, Uniapp
  EEG102: for Android
- Output:
  Original signal: dual channel EEG + blinking for EEGM102; dual channel EEG + blinking + gritting teeth
  Brainwave spectrum: α, β, γ, δ, θ
  Characteristic values: including concentration, emotion, stress, relaxation, meditation, blinking, sleeping point, heart flow, etc. (EEGM102); including concentration, emotion, stress, relaxation, meditation, blinking, gritting teeth, etc. (EEG102)
- Size: 12 x 20mm for EEGM102; 12.8 x 19mm for EEG102

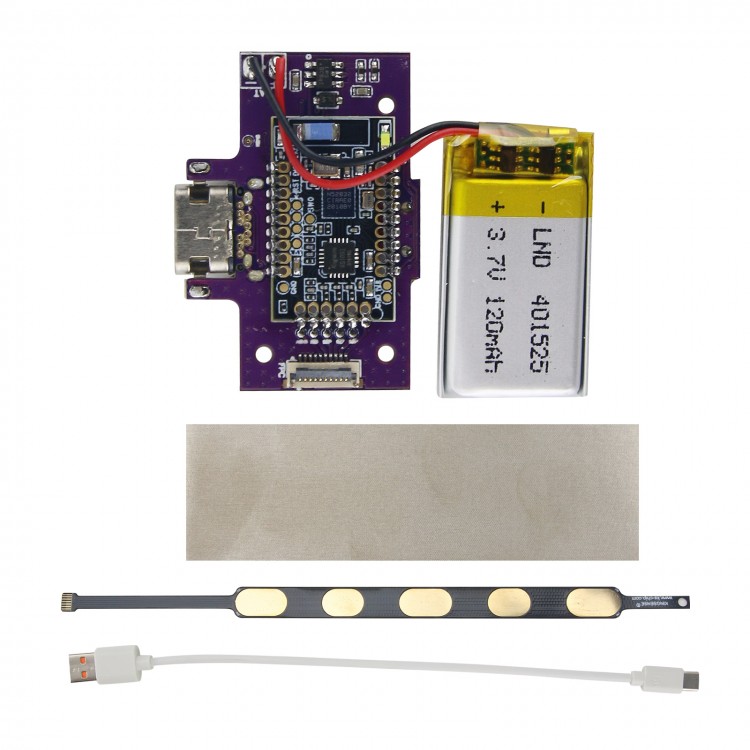

Package Included:
- 1 x EEGM102 Module
- 1 x EEGM102-Base Functional Baseboard (B or C version)
- 1 x FPC Flexible Metal Electrodes (B or C version)
- 1 x Type-C Charging Cable
- 1 x User Manual/APP/SDK Development Kit (Please contact our customer service to get them after receiving the product.)
