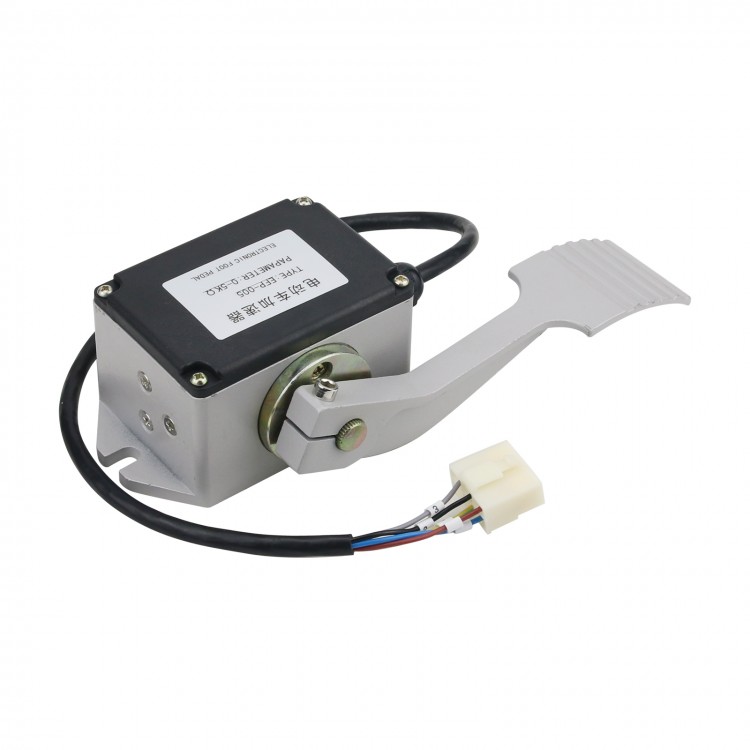

EFP-005 0-5K Foot Pedal Throttle China-Made Electric Accelerator EV Compatible-Curtis Throttle Pedal

EFP-005 0-5K Foot Pedal Throttle China-Made Electric Accelerator EV Compatible-Curtis Throttle Pedal

Product Description:
- Potentiometer Throttle (Foot Pedal)
- 0-5KΩ Speed Signal Device (3-Wire Pot Throttle)
- Model: EFP-005

Specifications:
- The foot pedal could be installed at both ends of rotating shaft
- Signal output: 0-5KΩ ± 0.1KΩ (potentiometer P270-033B for BI)
- Solid metal case, ingress protection: IP55
- Installation kit is included: bolts, nuts and washes
- Mating connector is included
- Net weight: 1.20 kg (with installation kit and mating connector)

Key Features:
- Model: EFP-005 (3-wire potentiometer throttle, working with original 1204M-4201 Series Motor Controller, original 1268-5403 SepEx Motor Controller and other controllers)
- Signal output: 0-5KΩ ± 0.1KΩ (BI potentiometer P270-033B)
- Switch on/off signal: 0V - power supply voltage
- Operation temperature range: -55℃ to 120℃
- Storage temperature range: -40°C to 80°C
- Ingress protection: IP55
- Mechanical lifespan: 1,000,000 times
- Installation kit is included: bolts, nuts and washes
- Mating connector is included
- Net weight: 1.20 kg (with installation kit and mating connector)

Attention:
- Wires: There are 5 wires, 3 of them are potentiometer wires, and another 2 is switch wires.
- Brown: Potentiometer Wiper
- Black: Potentiometer Low
- Red: Potentiometer High
- Blue: Switch Input (common)
- Yellow & Green: Switch Output (normally open)
- Notice: This is replacement, not original parts, but it can work well for you.
