Parameter:

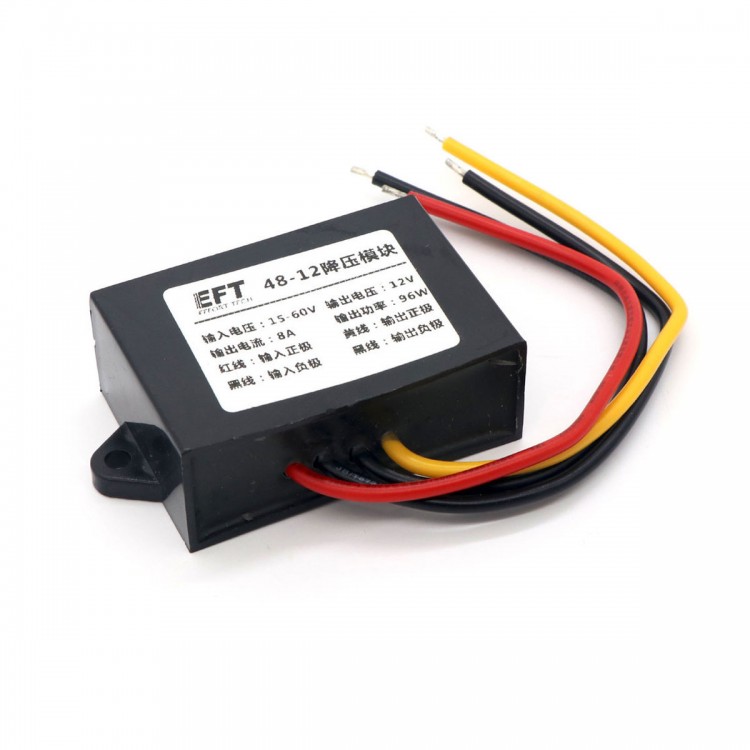

- Product Name: 48V to 12V buck module
- Volume: 46x32X18MM (LxWXH) does not contain wire and fixed ears
- Weight: about 61g
- Input voltage: 22-60V,the minimum differential pressure 3V,step-down power supply,must ensure that the input voltage is higher than the output voltage
- Output voltage: 12V
- Output current: 8A,can work at room temperature long-term current
- Output power: output A xVOUT,such as 8A 12v is 96W
- Operating temperature: Limit: -40-80 °C Recommended for use at -20-60 °C to extend power supply life and stability
Protective function:
- Output short circuit protection
- Over-current protection (according to customer needs,set over-current protection,the error between 0.5-1A,such as 5A long-term work,you can set up to protect the 6A)
- Over-temperature protection.
- Can be set to low-voltage start protection (such as 24V output,you need to voltage less than 36V when the voltage does not start)
Precautions:
1.Must not be reversed,there is no anti-protection Oh,please follow the label Description Wiring: red for the input is positive, black as the negative,yellow for the output positive
2.The use of power must make the power at a suitable temperature to work long-term stable and reliable,can not directly through the current parameters to determine,as long as the current long-term work,you can touch the power table temperature to judge,if the heat,please do not use it.Different places,the environment is different,we can not directly get an exact current parameter to you.
Package List:
- 1 x Buck Module
