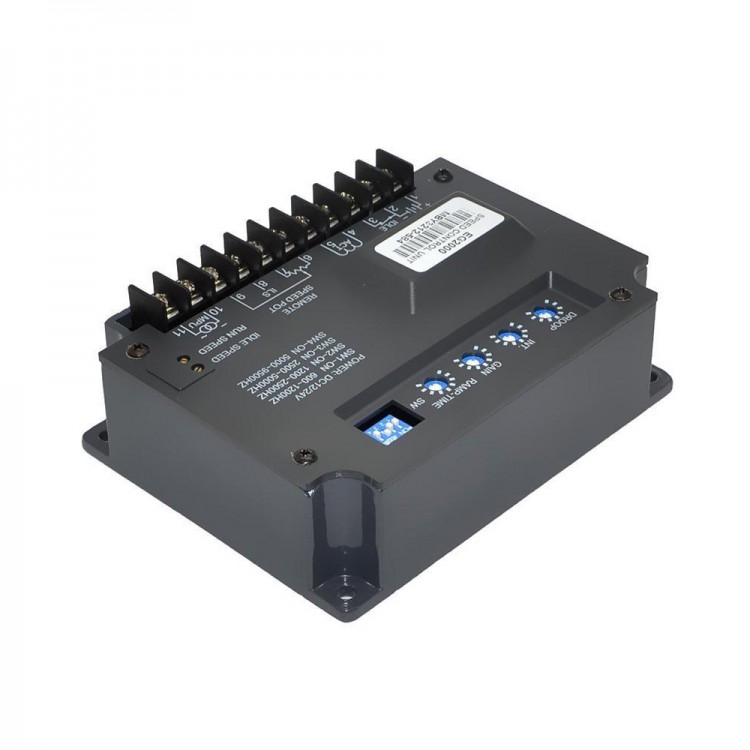

EG2000 Electronic Engine Speed Governor Controller Generator Controller Panel

EG2000 Electronic Engine Speed Governor Controller Generator Controller Panel

Features:
- Works on a wide ranges of MPU/flywheel frequencies
- 15 Amp Max output
- Suitable for all types of diesel and gas engines
- High sensitivity and stable at low frequency variations Moisture, vibration, and rust protected, epoxy encapsulated electronics
- For use with isochronous generators & automatic paralleling PLC controls
- Idle speed adjustment and connections for a remote speed POT


Specifications:
- Operating Voltage: DC 10V~30V
- Output Current: 0.5A~15A
-  Frequency Range: 600-9500 Hz (MPU signal)
- Idle Speed Frequency: Adjustable from 30-85% of normal
- Speed Band: +/- 0.25% at steady state
- Temp. Stability: Between -40~+85 °C better than +/- 0.5%
- Remote Speed Adjustment Range (2 mode): Adjustable range +/- 5% with 5KΩ potentiometer
- Ramp Time: 3~20 sec. (Adjustable)
    Operation Environment:
        Operation Temperature : -40~+85 °C
        Storage Temperature : -40~+85 °C
        Relative Humidity : Max. 95%
        Vibration : 3Gs @ 100-2K Hz
- DIP Switch Description:
        SW1 : ON 600-1200 Hz
        SW2 : ON 1200-2500 Hz
        SW3 : ON 2500-5000 Hz
        SW4 : ON 5000-9500 Hz
- Governor Controls:
        DROOP : Droop Rate Adjustment
        GAIN : ACT Output Gain Adjustment
        INT. : Engine Stability Adjustment
        RAMP-TIME : Soft Start Adjustment
        SPEED : Speed Adjustment
        IDLE : Idle Speed Adjustment
- Dimension: 147 x 114 x 40mm
- Weight: 690g
