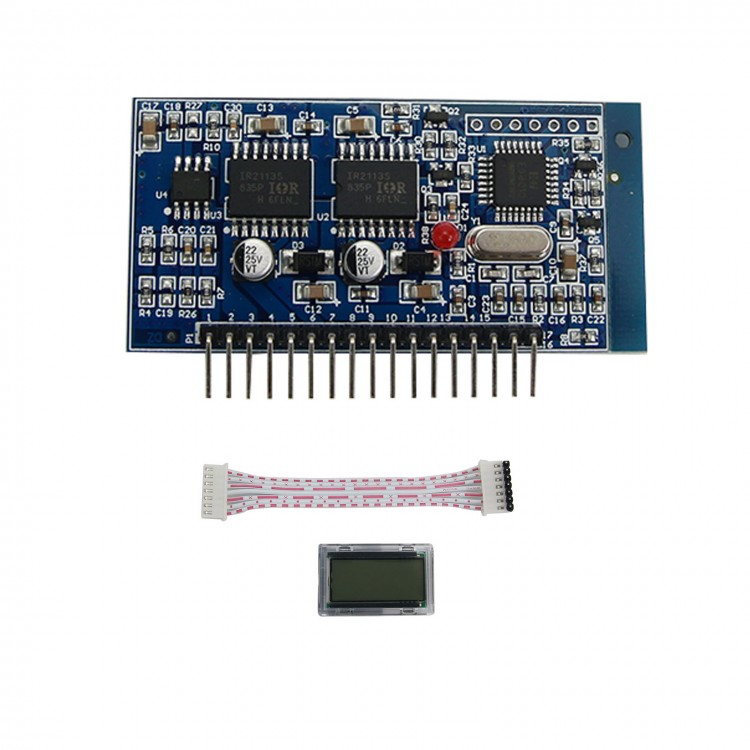

EGS002 EG8010 IR2110 Inverter Driver Board Inverter Drive + LCD Display For Pure Sine Wave Inverter
Description:
EG8010 is a digital, perfect function pure sine wave inverter generator chip with dead zone control. It is applied to DC-DC-AC two-stage power conversion architecture or DC-AC single-stage power frequency transformer boost conversion architecture. It is externally connected to a 12MHz crystal oscillator and can achieve a pure sine wave 50Hz with high accuracy, low distortion and harmonics. It can serve as a special chip for 60Hz inverter. The chip adopts CMOS technology and integrates functions such as SPWM sine generator, dead time control circuit, amplitude factor multiplier, soft start circuit, protection circuit, RS232 serial communication interface and 12832 serial LCD driver module.
Features:
* 5V single power supply
* Pin setting 4 kinds of pure sine wave output frequency: 50Hz pure sine wave fixed frequency, 60Hz pure sine wave fixed frequency, 0-100Hz pure sine wave frequency adjustable, 0-400Hz pure sine wave frequency adjustable
* Unipolar and bipolar modulation
* Comes with dead zone control, pin setting 4 kinds of dead zone time: 300nS dead zone time, 500nS dead zone time, 1.0uS dead zone time, 1.5uS dead zone time
* External 12MHz crystal oscillator
* PWM carrier frequency 23.4KHz
* Real-time processing of voltage, current and temperature feedback
* Over-voltage, under-voltage, over-current and overheat protection
* Pin setting soft-start mode 1S response time
* Serial communication to set parameters such as output voltage and frequency
* External serial port 128*32 LCD display module displays inverter voltage, frequency, temperature and current information
Application Areas:
* Single phase pure sine wave inverter
* Photovoltaic inverter
* Wind power inverter
* Uninterruptible power supply UPS system
* Digital generator system
* IF power supply
* Single-phase motor speed controller
* Single-phase inverter
* Sine wave dimmer
* Sine wave voltage regulator
* Sine wave generator
Package Included:
- 1 x Set of Inverter Driver Board w/ LCD
