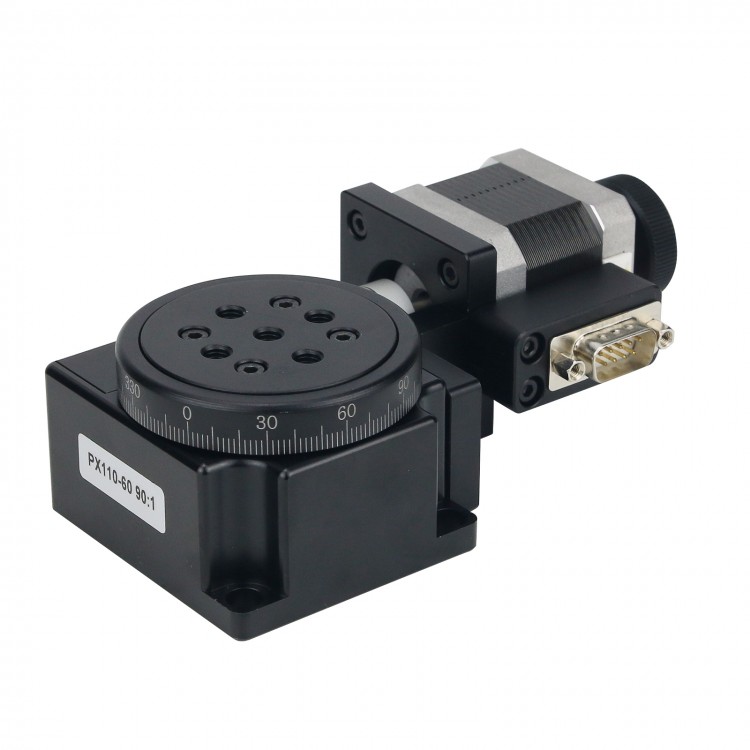

Electric Rotating Platform Motorized Precision Rotary Stages Table Diameter 60mm

Availability: In stock, usually dispatched in 1 business day

  • Price:$181.41
  • Price in reward points: 1814 Reward Points: 18
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $177.78 $174.15 $168.71 $161.45 Contact US
Quantity:

Electric Rotating Platform Motorized Precision Rotary Stages Table Diameter 60mm

Features:

1. Standard stepper motor and RS232 interface, ZD-KZ series motion controller independently developed by the company can realize automatic control
2. The rotating shaft system is made by multi-channel precision machining, with high precision, large load, long service life.
3. Using precision worm gear structure, comfortable movement, can rotate in any direction, forward and reverse
4. Ingeniously designed air-return structure can adjust the air gap caused by long-term use
5. Special structural design ensures extremely low end-jump and eccentricity of the rotating table, making the rotation more stable
6. The scale circle on the outside of the table is a laser ruler. The ruler can be rotated relative to the table to facilitate initial positioning and reading.
7. The stepper motor and the worm are connected through the imported high-quality elastic coupling, the transmission is synchronized, the depolarization performance is good, the eccentric disturbance is greatly reduced and the noise is small.
8. The electric rotary table can be used horizontally or vertically, and can be combined with other kinds of tables to form multi-dimensional electric adjustment tables.
9. Can increase the limit function, increase the initial zero position, replace the servo motor, install a rotary encoder, accept the product's restructuring and tailored.

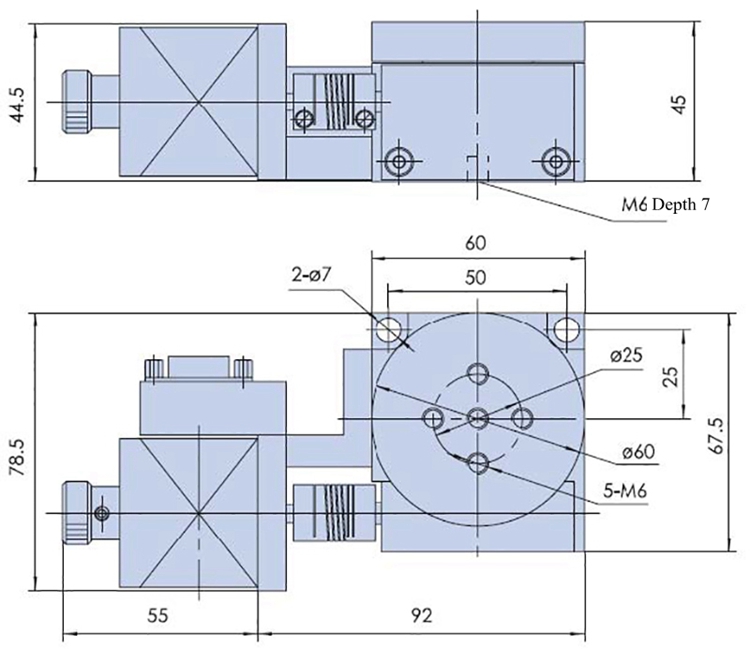

Parameters:

- Product model number: PX110-60
- Angle range: 360°
- Table size: 60mm Diameter
- Transmission ratio: 90:1
- Drive mechanism: Worm gear and worm mechanism
- Rail form: Bearing
- Stepper Motor (1.8°): 42BYG
- Body Material: Aluminum Alloy
- Surface treatment: Black anodized
- Center bearing: 30kg
- Weight: 1.2kg

Accuracy Specifications:
- Resolution: 0.02° (no subdivision) / 0.001° = 3.6'' (20 subdivisions)
- Speed: 50°/sec
- Repeat positioning accuracy: 0.005°=18''
- Absolute positioning accuracy: 0.01°=36''
- End-jump accuracy: 15μ
- Empty back: 0.005°=18''
- Eccentricity: 5μ
- Lost Step: 0.005°=18''
- Parallelism: 80μ

Package Included:

- 1 x Electric Rotating Platform
