Electricity Meter 3 Phase Measure Current Voltage Power Frequency Energy w/ LCD RS485 Communication

Electricity Meter 3 Phase Measure Current Voltage Power Frequency Energy w/ LCD RS485 Communication

Attention:
1. The accuracy of this meter is 0.5 level, that is to say, if the current you measure is 100A, the error will not exceed 0.5A, the voltage is the same;
2. The maximum straight-through measurement current is 5A, and the maximum current 9999KA can be measured with a transformer. The current transformation ratio can be set freely. For example, 100/5A can be used to set the CT ratio to 20, 3000/5 can be set to CT Transformation ratio is 600;
3. The maximum straight-through voltage is 750V, greater than 750V can be equipped with voltage transformers, the maximum can measure 9999KV, and its voltage transformation ratio can also be set by itself. For example, if you use a 1000/100V voltage transformer, you can set PT to 10 and use 20000/100V. Transformer can set PT to 200.

The multi-function power meter can accurately measure all electrical parameters in three-phase power grid system: three-phase current, voltage, and active power. Reactive power, power factor, grid frequency, active energy, reactive energy, and with communication interface and energy pulse output function, using MODBUS-RTU communication protocol to achieve LED field display and remote RS485 digital communication.

Description:
Multi-function network power meter is specifically designed and manufactured for the power monitoring needs of power supply and distribution systems. It can measure all commonly used power parameters with high accuracy, such as three-phase voltage, three-phase current, active power, reactive power, frequency, power factor, four-quadrant energy, etc. At the same time, it also has functions such as electric energy accumulation, electric energy pulse output, over-limit alarm, switch input and output, analog transmission output and network communication, and has a good man-machine operation interface.

It features high performance, and can replace conventional measurement indicating instrument, electric energy meter, multi-function power meter and related auxiliary units. As an advanced intelligent and digital power grid front-end acquisition component, the instrument can be used in various control systems, energy management systems, substation automation, distribution network automation, industrial automation, only buildings, intelligent switchboards, switch cabinets. It features convenient installation, simple wiring, convenient maintenance, small engineering volume, and input parameters that can be set on site. It can complete the networking of different PLC and industrial control computer communication software in the industry.

Main Functions:
Common Functions:
● Three-phase phase voltage: UA, UB, UC
● Three-phase line voltage: UAB, UBC, UCA
● Three-phase current: IA, IB, IC
● Active power: active power per phase and total active power
● Reactive power: Reactive power per phase and total reactive power
● Apparent power: apparent power per phase and total apparent power
● Power factor: power factor per phase and total power factor
● Grid frequency
● Active energy
● Reactive energy
● 2 way energy pulse output
● Communication output: RS485

Additional Functions:
● 4-way analog outputs
● 4-way switching outputs
● 4-way switch input

Power Quality Analysis:
● Phase/line voltage total harmonic distortion rate THDU
● Current total harmonic distortion rate THDI
● Three-phase voltage unbalance εU
● Three-phase current unbalance εl

Features:

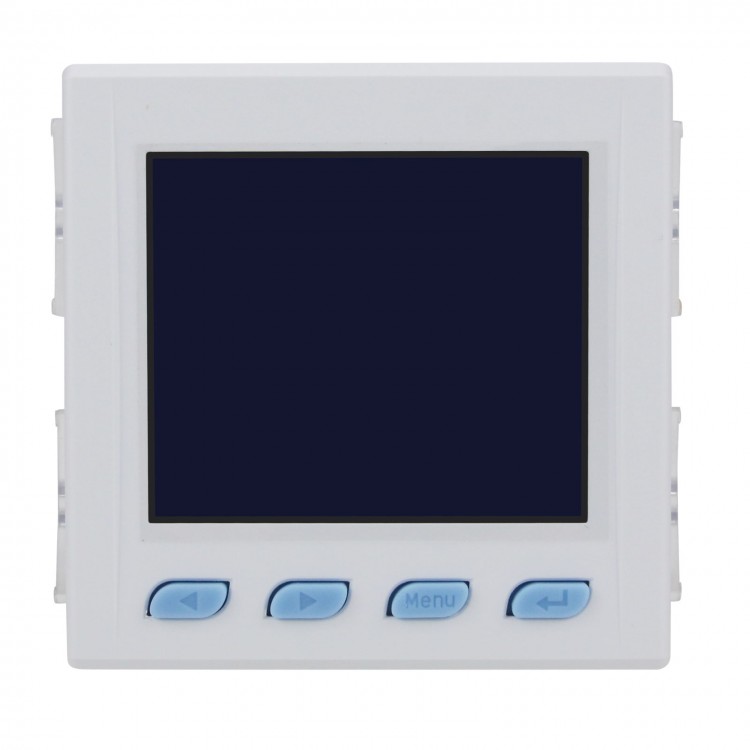

- LCD Display: Information display, beautiful and fashionable, comprehensive information, real-time display.
- High precision, stable performance and easy installation.
- Programmable intelligent power meter.
- Three-phase current, voltage, power, frequency, energy measurement.
- ABS flame-retardant shell, safety is guaranteed. The shell is made of excellent flame-retardant plastic, which has the advantages of high temperature resistance and anti-aging. More durable.
- Adopt advanced microprocessor and digital signal processing technology. Through direct AC sampling, electrical parameters such as current, voltage, active power, reactive power, power factor, frequency, active energy, and reactive energy can be measured. At the same time, it can also be equipped with switch input and output, analog transmission output, energy pulse output, RS485 network communication function.
- Imported chips and high-end parts: integrated welding, strong anti-interference. High-precision display, stable performance and more durable.
- Silicone Buttons: The keys have been tested for tens of thousands of presses and have a life span 2-3 times that of ordinary keys. Durable and easy to use.
- Selected Wiring Terminal: The wiring terminal and power supply are protected by a safety back cover to avoid bare wiring of the equipment and ensure the safety of the instrument wiring.

Technical Parameters:
Input:
- Voltage:
* Network: three-phase four-wire, three-phase three-wire
* Rating: AC 0~500V
* Overload: continuous: 1.2 times, instant: 2 times/30S
* Power consumption: <0.5VA (per phase)
* Impedance: >500kΩ
- Current:
* Rating: AC 1A, 5A
* Overload: Continuous: 1.2 times, instant: 2 times/1S
* Impedance: <2mΩ
- Frequency: 45-65Hz

Output:
- Electrical Energy:
* Output mode: 2-way open collector optocoupler pulse output
* Pulse constant: active energy 3200imp/kwh; reactive energy 3200imp/kvarh
* Starting: Under the conditions of rated voltage, reference frequency and cosφ=1.0, when the load working current is 0.001In, it can start and continuously measure the energy
* Creep: When 115% of rated voltage is applied and there is no current in the current loop, the meter has no energy accumulation and pulse output
- Communication:
* Output mode: RS485
* Communication protocol: MODBUS_RTU
* Baud rate: 1200, 2400, 4800, 9600
- Analog Output:
* Number of channels: 4 channels
* Output mode: 0~20mA, 4~20mA
* Load capacity: ≤400Ω
- Switch Output:
* Number of channels: 4 channels
* Output mode: normally open output of optocoupler relay
* Contact capacity: AC 250V/0.1A
- Digital Input: 4-way passive input contacts
- Display Mode: LCD display (blue backlight)

Measurement Accuracy:
- Voltage and current: ±(0.5%FS+1-Digit)
- Active power and reactive power: ±(0.5%FS+1-Digit)
- Frequency: ±0.1Hz
- Power factor: ±0.01PF
- Active energy: ±0.5% (for reference only, non-metering)
- Reactive energy: ±1.0% (for reference only, non-metering)

Power Supply:
- Range: AC220V, 50/60Hz or AC/DC 85~265V
- Power consumption: <5VA

Safety:
- Voltage resistance:
* Input and power supply: >2kv50Hz/1min
* Input and output: >1kv50Hz/1min
* Output and power supply: >2kv50Hz/1min
- Insulation resistance: >20MΩ between input, output, power supply and chassis

Surroundings:
- Temperature:
* Operating temperature: -10 to 50℃
* Storage temperature: -25 to 70℃
- Humidity: ≤85%RH, no condensation, no corrosive gas
- Altitude: ≤3000m

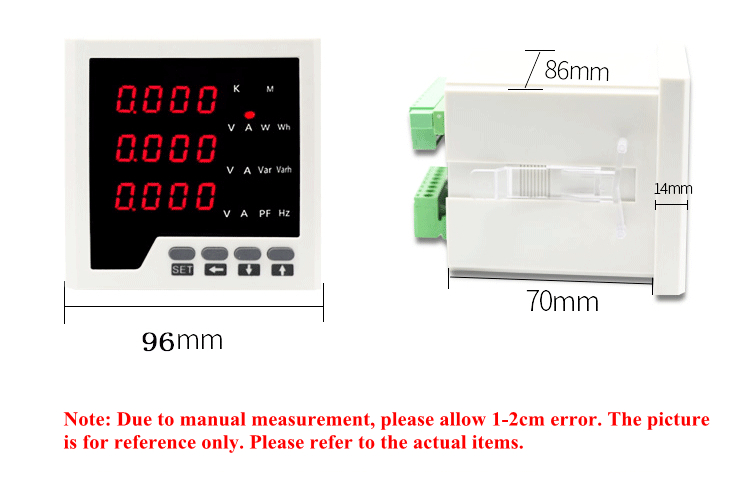

Package Included:
- 1 x Electric Meter
