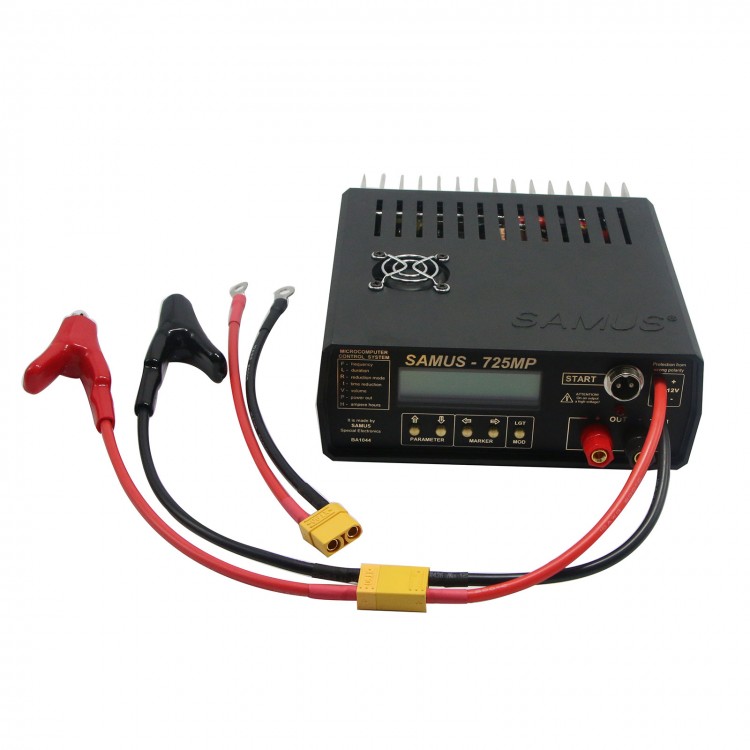

Electro Fisher Fish Shocker Stunner - Samus 725MP with Catfish Mode for Catching Fish

Electro Fisher Fish Shocker Stunner - Samus 725MP with Catfish Mode for Catching Fish



Main features:
- Input Voltage  12V DC Nominal Range (10-14V VDC).
- Input Current  5-100 Amps (common operating 10-20 Amps).
- Output Voltage 1600 V max (600 V-inverter and max impulse up to 800V)
- Output Power   1000 watts maximum.
- Output Frequency (2.5-99)Hzin 1 Hzsteps.
- Output duration  (50 microseconds, 8 milliseconds).
- Weight:2.5kg. (package included)
- Size:     250mm*175mm*63mm

Package content:
- Cable controlling button "START" and the plug
- Output cable
- XT60 cable
- Personal password
- User manual

You will also need:
- 12V car battery
- Landing-net with insulated handle and conductive ring
- Boat

Video show:
- http://v.youku.com/v_show/id_XNTk0Mjk1NTU2.html
- http://v.youku.com/v_show/id_XNTk0NDc1NjE2.html

Operating instructions:
- Machine adopts 12 v battery with protection of the meter. Load it with battery, enter password: 860201, press the button "MOD", the words  "GOOD LUCK” means operation is correct. Mistyped 3 times please power on  again.
- Page 2 menu is not commonly used, there is no actual use, mainly on page
   Line 1 / F: high voltage pulse frequency adjustment L: pulse with adjustment U: voltage regulation ， press switch show + : battery display (“- “means no electricity)
   Line 2 / P: power shows R - : adjust attenuation model  t: adjust decay time S: 1-4 group preference parameters adjustment.
-  F: 2.5- 99 hz frequency adjustment range (20 hz and 20 hz below is electricity without scales, press the switch will keep output voltage, press the switch again is turn off , (IF you want 21hz or above output,hold down the switch ) general is 40-60 hz.
- L: pulse width 0.05-8 MS  range around  2 is  adjust the output  current .
- U :(1-2 two gears, one is 1-600v, the other is 2-800 v) general place 1 is enough, IF some places not conductive , can open 2, look at how much output power, no active cooling fan, 800 w is the safe use of power, more than 800W is  danger.
- P: power display , can't adjust.
- R: attenuation model. The RF - 30 is frequency   reduced 30% (on the basis of the current frequency) and so on RF - 60-90 is reduced by 60%, 90%. RL - pulse width change (RL - 30, 60, 90). The frequency and pulse width at the same time reduce(RS - 30 to 60-90).
-  t: the time in the process of frequency pulse width(3.6.9.12 S).
- S1:1-4 group can store data, long press the" MOD" can switch it (short press the switch change backlit display), also can store you normally used  parameters of  the  frequency , the  4 set of pulse width be called convenient.
- Average frequency width does not open, with R -- mode is ok, frequency 50 or so, the pulse width is about 2, voltage U1, basically machine can be operated , the power control below 800 w (remember this).
