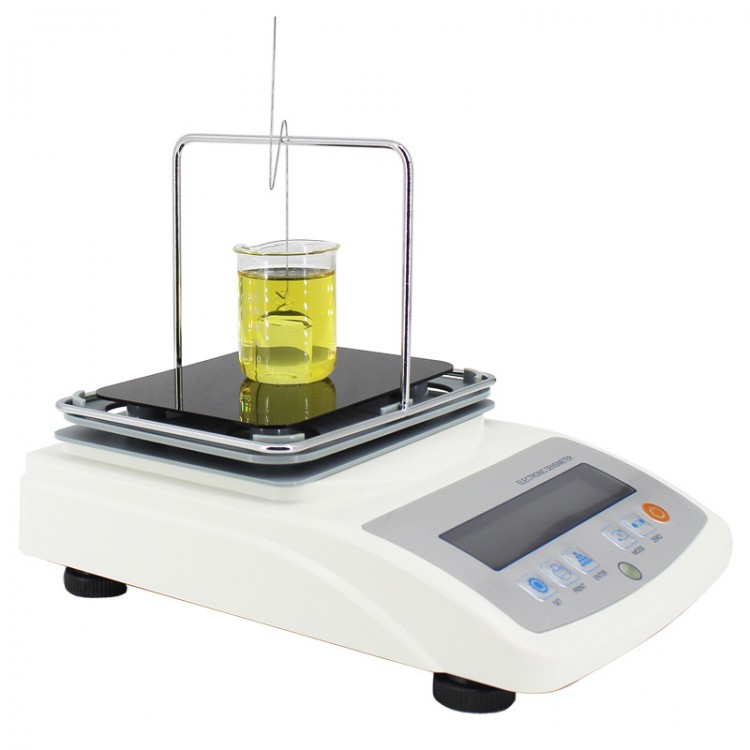

Electronic Densimeter Digital Densimeter for Liquid Petroleum Support for Printer MDJ-300G

Electronic Densimeter Digital Densimeter for Liquid Petroleum Support for Printer MDJ-300G

Description:
With German imported sensor, the MDJ-300G liquid densimeter is for better measurement reliability. It is suitable for test strong acid and alkali, viscous, volatile, suspended liquid, emulsified liquid, and high temperature liquid.

It is made in light of the following regulations: GB/T611-2006，GB/T11540-2008, GB1666-81, GB/T5009.2-2003, GB/T 5526-1985, JJG171-2004, GB/T13531, T5526, T5009, GB/T11540, GB/T12206, and GB/T551. The buoyancy method and the underwater displacement method using the Archimedes principle are used to quickly read the liquid density, Baume degree.

Application:
For various acid and alkali salt solutions, chemicals, oils, petroleum, cosmetics, paints, coatings, inks, flavors, fragrances, chemical solutions, chemical reagents, resins, adhesives, edible oils, beverages, pharmaceuticals, auxiliaries, synthetic agents, Metal processing, thermal power, electroplating industry, construction, chemical trade, colleges and universities, testing institutions, government departments, and teaching institutions.

Specifications:
- Model: MDJ-300G
- Density Resolution: 0.001 g/cm3
- Max. Weighing Capacity: 300g
- Min. Weighing Capacity: 0.01g
- Density Measurement Range: 0.001—99.999 g/cm3
- Display Results: Density and Baume degree
- Setting: Top and Lower Limit of Density, Specific Density, Temperature Compensation
- Measured Type: for fluid liquid, corrosive liquid, and viscous liquid
- Correction Ways: 100g Single-Button Automatic Detection, Distilled Water Test Result Value
- Communications Port: Standard RS-232C (output and print data)

Features:
- Convenient for multiple consecutive rapid tests for any liquid
- The lower limit and the top limit of density can be set. With a buzzer, it can automatically tell you whether the product is qualified or not.
- Easy to sample, only 50CC is needed. Featuring digital display, high measurement accuracy, easy operation and stable performance.
- Easy to clean the measuring cup and reuse it.
- With RS-232C communication interface, it can be connected to a PC and a printer.
- Rechargeable design and its windshield make it more suitable for field test.

Note:
- Optional XF-68 printer to print measurement data.
- Please purchase separately accessories for corrosive liquid test.
- Please purchase separately accessories for viscous liquid test.

Measuring Steps:
- Step 1: Put the hook in place and press ZERO.
- Step2: Hang the standard weight to the hook for weighing, and then press ENTER to save the data.
- Step 3: Put the weight together with the hook into the tested liquid, and then press ENTER to save and show the density.

Package Included:
- 1 x Densimeter Host
- 1 x Density Measuring Frame
- 1 x Stainless Steel Hook
- 1 x Standard Glass Weight
- 1 x Beaker
- 1 x 100G Weight
- 1 x Transformer
- 1 x Windshield
