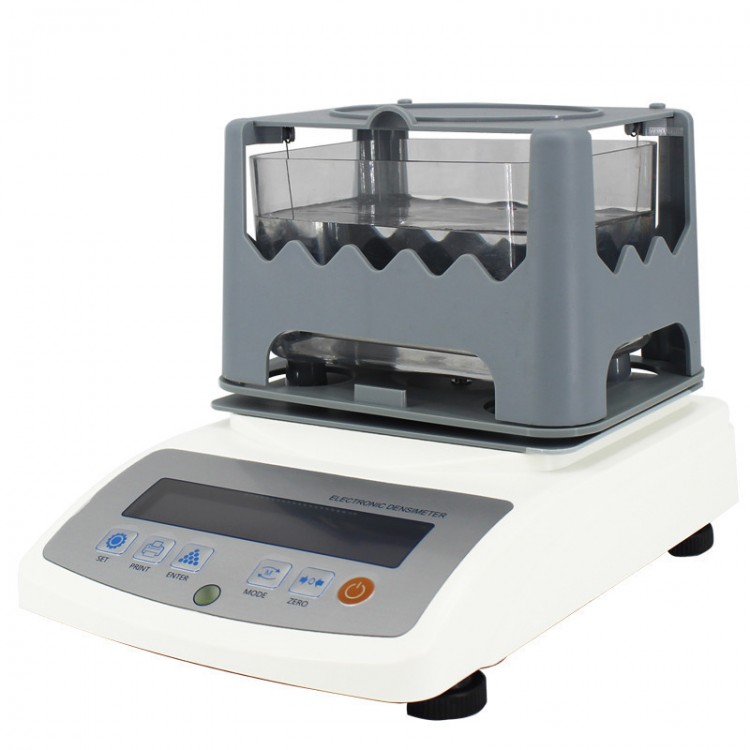

Electronic Densimeter Digital Densimeter for Solid Materials Support for Printer MDJ-300A

Electronic Densimeter Digital Densimeter for Solid Materials Support for Printer MDJ-300A

Description:
MDJ-300A density meter is for solid materials, rubber, wire and cable, aluminum products, plastic PVC particles, powder metallurgy, mineral rock, EVA foam materials, glass industry, metal products, precision ceramics, refractory materials, magnetic materials, alloy materials, mechanical components, metal recycling, minerals and rocks, cement manufacturing, and jewelry industry.

It is made in light of the following standards: ASTM D792, ASTM D297, GB/T1033, GB/T2951, GB/T3850, GB/T533, HG4-1468, JIS K6268, ISO 2781, ISO 1183, GB/T208, GB/T5163, GB/T 1933, BS2782 Part 6 Method 620D, ASTM D1505-68, and ISO 1183.

Built with excellent With German imported sensor, this solid densimeter is built for better measurement repeatability. Just two steps to get the density of any solid, particle and floating materials. Made of PC material, its sink is wear-resistant and anti-corrosion. Its 0.5cm stainless steel hanging wire is not easy to bend or deform. The device is also used to test the percentage of the main material content.

Specifications:
- Model Number: MDJ-300A
- Density Resolution: 0.001 g/cm3
- Max. Weighing Capacity: 300g
- Min. Weighing Capacity: 0.01g
- Density Measurement Range: 0.001—99.999 g/cm3
- Measured Type: Density of Any Irregular Materials >1, or Density of Block, Particle, Floater <1
- Test Principle: Archimedes Buoyancy Method
- Test Time: 5-20 Seconds
- Correction Ways: Single Button Weight Correction, Automatic Detection
- Display Value:
  Weight: g
  Density: g/cm3
  Volume: cm3
  Percentage: %

Main Features:
- Automatically get the density and volume of tested materials without calculation.
- The lower limit and the top limit of density can be set. With prompt function, it can automatically judge whether the product is qualified or not.
- Liquid Compensation Function: You can use water or other liquid as a medium.
- Temperature Compensation Function: The actual water temperature can be set.
- Large Measuring Tank: 15.3 x 10.7 x 8.0cm (L*W*H) large enough to test big solids (Can be customized according to the size of tested materials).
- Rechargeable design and its windshield make it more suitable for field test.
- With RS-232C communication interface, it can be connected to a PC and a printer.

Note:
- Optional XF-68 printer to print measurement data.
- Optional data cable to PC. If needed, please tell us.

Measurement Steps:
- Step 1: Place tested item in the measurement top board to get its weight, and then press ENTER to memorize the data;
- Step 2: Place the tested item into the water, press ENTER to memorize and show the data.

Package Included:
- 1 x Densimeter Host
- 1 x Water Tank
- 1 x Measurement Top Board
- 1 x Tweezers
- 1 x Power Adapter
- 1 x Correction Weight
- 1 x Windshield
- 1 x Set of Accessories for Particle Test
- 1 x Set of Accessories for Floater Test
- 1 x Factory Quality Certificate
- 1 x User Manual
