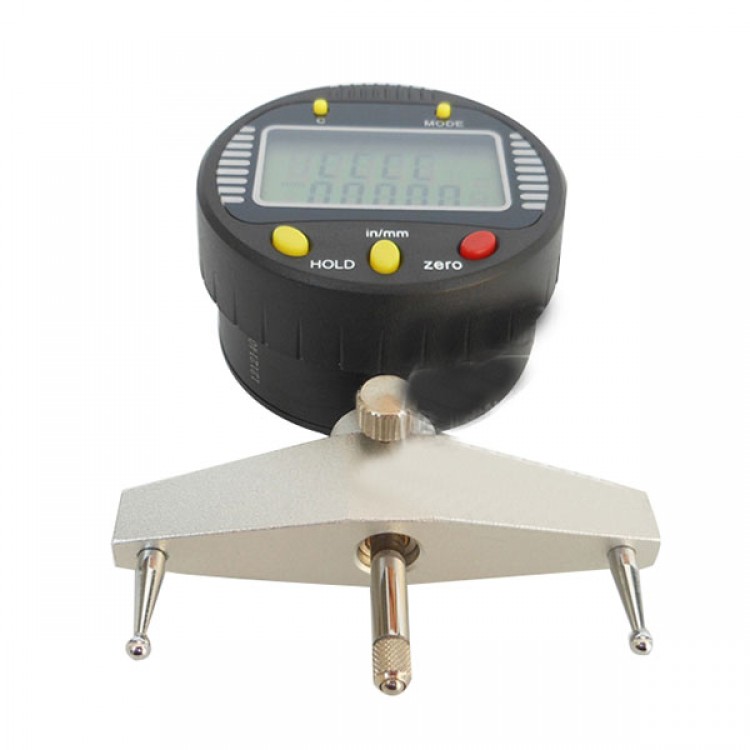

Electronic Digital Multifunction Radius Gauge Meter Radius Measurer 0.005 Resolution

Features:

-  a new type of high-tech radius measurement tools , use of sensor technology, micro-computer technology and integrated circuit technology designed multifunction digital display radius tester, it has a small, easy reading, handheld measurement characteristics, can be used for the production site.

- using the ball head measuring rod, error compensation calculation is simple, while the measure for arcs of different radii, the contact point is changing, you can prolong the life of the probe, and is suitable for surface measurements.

- the relationship between scale and chord length and accuracy: accuracy is lower, the greater the measurement range; longer chord length, maximum measured radius is greater. The minimum measurable radius of half of the chord length.

- the use of multiple sets of measuring claw design, selection of appropriate measuring claw span for different radii and measurement accuracy.

- depending on the arc, the choice of five different measuring jaws: 10mm, 20mm, 30mm, 60mm, 100mm

Usage:

1, in the application, commonly used to measure the radius R model (also known as R gauge) to measure, is a purely mechanical measurement, cumbersome to operate, reading difficult, and in many cases, because of their size limit measurement tools simply can not be measured desired data. The utility model patents capacitive sensors using high-tech achievements, integrated circuits, mechanical, electronic technology, computer technology and sensor technology combine to develop a new generation of high-tech measuring tool radius content, the series of utility model patents measurement range unrestricted, simple operation, reading fast. Application of high-precision measurement tool made ​​of capacitive sensors, the reading resolution of up to 0.005mm.



2, use:

     a, digital dial indicator function;

     b, outer radius of the curved surface measurements;

     c, within the radius of the arc-shaped surface measurements;

     d, depth measurement;

     e, level measurement



Instructions:

1, the boot: Tap ZERO / ON / OFF button you can look;

2, clear: short press ZERO / ON / OFF button, can be cleared at any position, measure the inside diameter, outside diameter when it shall be as shown in Figure 3, allowing three vertical rods while in contact with a standard plate, and then click ZERO / ON / OFF button to complete the cleared;

3, metric conversion: Press UNIT key to switch between metric and imperial;

4, data hold and lift: Press HOLD button to display the H on the LCD screen, indicating that the incoming data hold, then press this button, hold lifted.

5, the function switch: It can be inside, cylindrical curved surface radius, length, depth and step measurements, press the MODE button to switch the function, when the window is displayed as the first row R1, the system enters the radius measurement state , shown as R2 system into the outer radius measurement status is displayed as A, untapped function does not choose! The third row of the display window reading (chord S value) length, depth and step measurements. Figure 2 is a measurement of the outer diameter R, R 3 is an inner diameter measurement. When measuring, make three measuring rod ball head while in contact with the measured arc, and let the three measuring rod axis where the plane coplanar with the measured arc, the measured radius of the arc will be displayed in real time on the LCD screen and chord height, as shown; 6, measuring jaws replacement: choose the right size of the measured object to be measured based on the claw, in general, large selection of large radius measured claws. Measured claw from small to large numbers were 10,20,30,60,100 after replacing the measure claws, press the C key, you can change the C value (ie measured claw specifications), sequentially displayed on the screen C = 10,20,30 , 60,100 let measured value corresponds to claw number and C, as measured claw 30 election, you should make the C = 30.;

6, off: long press ZERO / ON / OFF button, you can shut down, or automatically shut down after a few minutes is not used after shutdown Press to boot.
