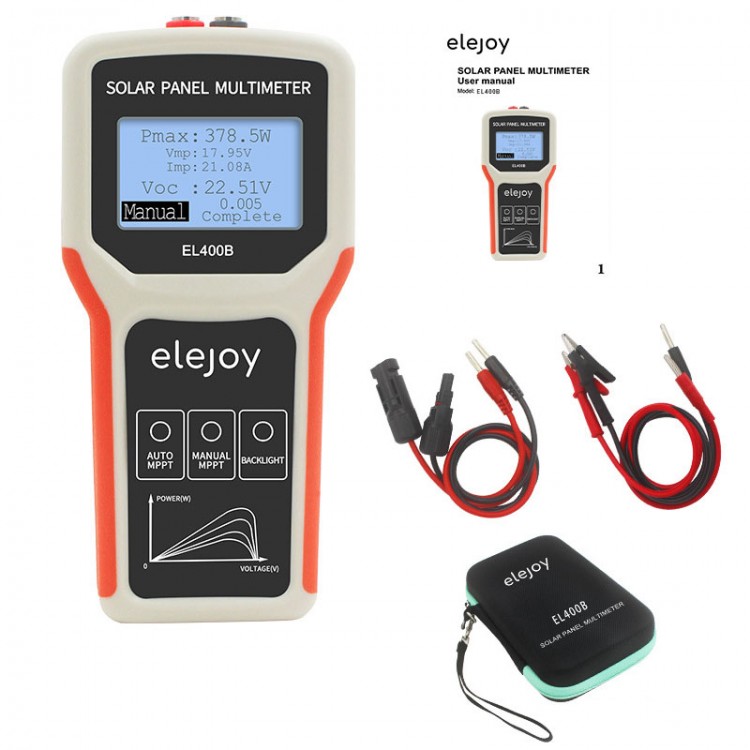

Elejoy EL400B 5-400W 12-60V Solar Panel Multimeter PV Panel Tester Supports Auto & Manual MPPT

Elejoy EL400B 5-400W 12-60V Solar Panel Multimeter PV Panel Tester Supports Auto & Manual MPPT

Features:
- Measures the maximum power point of photovoltaic panels.
- Measures the open-circuit voltage of photovoltaic panels.
- Easy to use: It supports automatic and manual detection modes. The modes can be switched by using AUTO MPPT and MANUAL MPPT buttons.
- Over-temperature protection: When the temperature of the multimeter reaches 60°C, it will display "over-temperature". Please wait for the multimeter to cool down before use.
- Over-voltage protection: When the input voltage of the multimeter exceeds 60V, it will display "over-voltage". Please use the tester within 12-60V.
- Over-current protection: When the input current of the multimeter exceeds 35A, it will display "over-current". Please use it within 35A.
- Reverse connection protection: When the positive and negative poles of the multimeter input are reversed, it will have no display. Please check the polarity of the input in time.
- Over-rated power protection: When the input power of the multimeter exceeds the rated power, it will display "over-rated power". Please disconnect solar panels in time and use EL400B within the rated range.
-With backlight: HD LCD display with backlight makes it clear under the sun.
- Convenient to use: It is powered by solar panels. Thus, no additional power supply is required.

Specifications:
- Model: EL400B
- Power: 5-400W
- Voltage: 12-60V
- Current: 0-20A
- Display: LCD display
- Backlight: With
- Power supply mode: Powered by photovoltaic panels
- Dimensions: 165mm x 80mm x 30mm/6.5" x 3.1" x 1.2" (LxWxT)
- Product weight: 450g/1lb
- Target users: Photovoltaic panel manufacturers, photovoltaic panel operators, photovoltaic panel installers, photovoltaic panel users and photovoltaic enthusiasts, etc.
- Purpose: To test the maximum power point and open circuit voltage of photovoltaic panels
- Automatic MPPT detection: When the button AUTO MPPT is pressed, the instrument will automatically adjust the test interval according to the current power and refresh the display (the interval is about 5S to refresh once for 100W; it is refreshed once every 15 seconds or so for 300W)
- Manual MPPT Detection: When the button MANUAL MPPT is pressed, the instrument will initiate a maximum power point scan and refresh the display.
- Open-circuit voltage detection: LCD screen displays the voltage of photovoltaic panels in real time

Package Included:
- 1 x Multimeter main unit
- 1 x Set of cables with MC4 connector
- 1 x Set of alligator clip cables
- 1 x EVA bag
- 1 x User manual

Packaging Details:
- G.W.: 0.55kg
