EleksMaker EleksLaser-A3 Pro Laser Engraving Machine CNC Laser Printer

EleksMaker EleksLaser-A3 Pro Laser Engraving Machine CNC Laser Printer

Installation,software,software setting,operating instructions and normal questions

The EleksCAM Instruction and software download link

The benbox Instruction downloading link

Specifications:
- Brand:EleksMaker
- Model:EleksLaser-A3 pro
- Control Board:EleksMana SE
- Communication Port:MircoUSB
- Laser Quick Replace:Support
- Stepper Motor:42H34S-1304A
- Power Input:AC100-240V
- Sysytem Support:Win XP/7/8/10
- Engrave Mode:Photo,Word,Scan,outline,Pixel Laser Engraving
- Supported Formats:jpg,bmp,svg,G-code
- Material:Stainless Steel and Acrylic
- Working Voltage:DC 12V
- Working Current:DC 2.5A
- Laser Power:Not include laser module
- Control Software System:Candle,EleksCam,T2-Laser,Benbox,GrblController,
- LiteFire,Laser GRBL,etc.
- Engraving Area:30x40cm/11.81x15.75inch (maximum)
- Engraved object height limitatiion:No Limitation
- Packaging Size:58x40x14cm/22.83x15.75x5.51inch (L*W*H)
- Assembled Product Size:60x46x18cm/23.62x18.11x7.09inch (L*W*H)
- Package Weight:4.60kg
- Certification:CE,FCC,FDA(Please contact us if you need them)
- Function:ideal for amateur laser engraving usage low-light positioning and freedom positioning functions.
- Features:30X40cm ultra large engraving area,gantry shape design,no engraving height limitation.Three stepper motor drive providing faster moving speed.can print any pictures easily

Note:
1.Please wear laser goggles during usage and avoid touching the laser directly with your eyes and skin.
2.This is a whole assemble set and needs to assemble by your own.
3.If you have any quality problem about the machine,please feel free to contact us.Many operative problem can be solved according to your video.It can effectively save your time and energy if you send the video to us with the problem description.Thank you in advance.

FAQ:

1.How to assemble the kit?
    The whole assemble and operating manual link

    You can also watch the video to do it

2.What software can support this machine? And what image format? Engrave Mode?
    Supported Software: EleksCam,Candle,T2-Laser,Benbox,GrblController,LiteFire,Laser GRBL,etc.
    Supported Image Format: jpg,bmp,svg,G-code
    Supported Engrave Mode: Photo,Word,Scan,Outline,Pixel Laser Engraving

EleksCam

Benbox

3.What system can the EleksCAM support?
    PC Win XP 7/8/10,Laptop is ok,too.

4.My laser doesn't work,what should I do?
    If the machine does not work,it might because:
1.The wire connection is wrong.Please check the connection like the picture shown.
2.Your computer could not support the software.Please use Win XP 7/8/10 to check it.
3.Software problem.Please check whether wires are inserted rightly.And then check your data setting.
4.The kit misses some accessories.Please compare with the instruction and tell us,we will solve it once you send us the email.
5.Driver board/power supply is broken.Please check which part is the main problem,and then send us a video to prove it.
    Or you can send us a video about your software setting,working laser and driver board.We will analyze it and give you a solution.

5.My software shows: Not data, what should I do?
    There might be two reasons.
     ① You did not open  Administrator privileges to run the software.Please try this.
     ② Your computer architecture is incomplete:check whether VC ++ and.Net and directX are installed,and have to turn off the virus.

6.Can I regulate the laser power or the laser power is adjustable?
     Our new Mana SE controller board can adjust the power.Please download our ElekesCAM software and firmware to do it.Or benbox software and benbox firmware.
     Please note that two firmware is not the same.Details are shown in the EleksCAM & Benbox software instruction above.

7.Can I upgrade stronger power laser module by myself? Can I extent rail frame?
   Yes,you can.DC12V laser module can be installled on this machine.The red is positive.You can also extent the frame by yourself,but    we do not provide rails. Please note that.

8.When I click arrows to control the motors,it works.But when I begin to make it work with EleksCAM software,
   it does not move. What should I do?
   The EleksCAM could move by hand but could not move when focus.The probelm is the area and language inside the system control panel.
   Please set the format to English and United States.Then it will be ok. Detail is shown in the wiki link above.

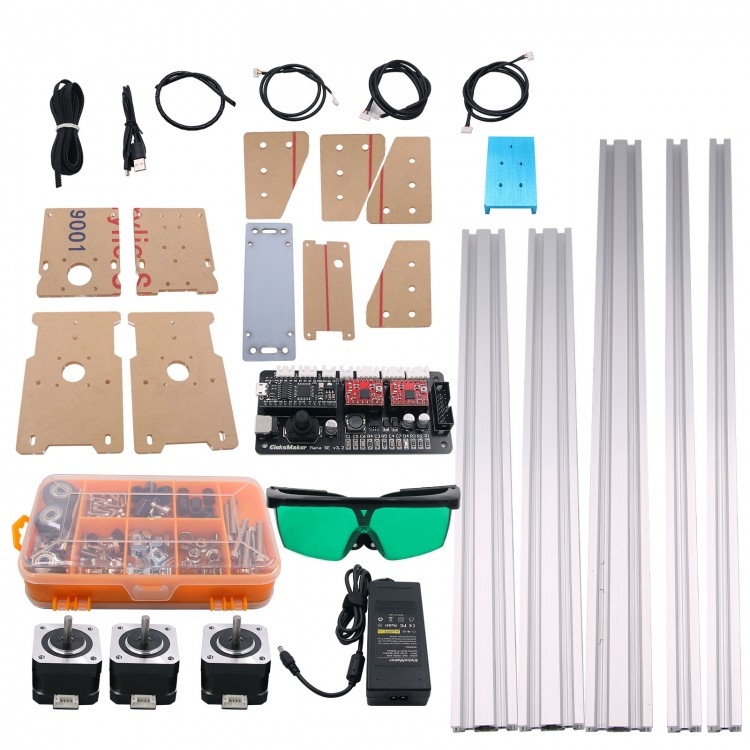

Package List:
- 1 x Laser Engraver Assembling Kits(Without laser module)
