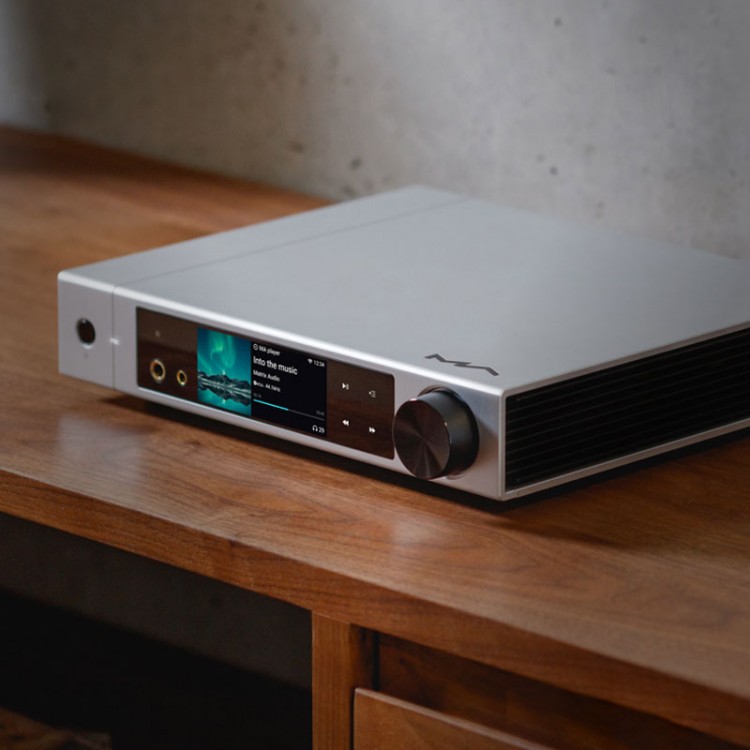

Element M2 Audio Decoder High Performance DAC Preamplifier Balanced Headphone Amplifier in One MQA Decoding

Element M2 Audio Decoder High Performance DAC Preamplifier Balanced Headphone Amplifier in One MQA Decoding

Digital Input:
- Optical Fiber/Coaxial: PCM16--24Bit / 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz; DSD2.8MHz (DoP)
- IIS LVDS: PCM 16-32Bit / 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz, 352.2kHz, 384kHz, 705.6kHz, 768kHz; DSD2.8MHz, 5.6MHz, 11.2MHz (DoP); DSD2.8MHz, 5.6MHz, 11.2MHz, 22.4MHz, 45MHz (Native)
- USB Audio: PCM 16-32Bit / 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz, 352.2kHz, 384kHz, 705.6kHz, 768kHz; DSD2.8MHz, 5.6MHz, 11.2MHz (DoP); DSD2.8MHz, 5.6MHz, 11.2MHz, 22.4MHz (Native)

Line Out:
XLR:
- SNR: >-131dB
- Total harmonic distortion+noise: <0.00012% at 1k, <0.00025% at 20Hz-20kHz
- Frequency response: 20Hz-20kHz +/- 0.05 -3dB at 120kHz
- Cross talk: >-145dB
- Output amplitude: 4.5VRMS at 0dB, 15.8VRMS at +10dB

RCA:
- SNR: >-124dB
- Total harmonic distortion+noise: <0.00012% at 1k, <0.00025% at 20Hz-20kHz
- Frequency response: 20Hz-20kHz +/- 0.05 -3dB at 105kHz
- Cross talk: >-137dB
- Output amplitude: 2.3VRMS at 0dB, 8VRMS at +10dB

Headphone Output:
XLR4 and XLR3 Balanced headphone:
- SNR: >-117dB
- Total harmonic distortion+noise: <0.00055% at 20Hz-20kHz 1VRMS
- Frequency response: 20Hz-20kHz +/- 0.1 -3dB at 47kHz
- Headphone output impedance: <1.5ohm
- Headphone output power: 1700mw at 33ohm; 1180mw at 300ohm; 650mw at 600ohm; 1%THD
- Gain: +18dB at Low Gain, +28dB at High Gain

TRS 6.35mm Single-ended Headphone:
- SNR: >-112dB
- Total harmonic distortion+noise: <0.00055% at 20Hz-20kHz 1VRMS
- Frequency response: 20Hz-20kHz +/- 0.1 -3dB at 47kHz
- Headphone output impedance: <1.5ohm
- Headphone output power: 1150mw at 33ohm; 308mw at 300ohm; 152mw at 600ohm; 1%THD
- Gain: +12dB at Low Gain, +22dB at High Gain

Network:
-LAN: 10BASE-T/100BASE-TX
- WLAN: 2.4GHz/5GHz, IEEE 802.11 a/b/g/n/ac standard

MA Player:
- Support: MP3, WMA, WAV, AIF, AIFC, AIFF, AAC, FLAC, OGG, APE, ALAC, M4A, DSF, DFF
- Support (PCM Sampling rate): PCM 16/24/32Bit 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz, 352.8kHz, 384kHz, 705.6kHz, 768kHz
- Support (DSD Sampling rate): 2.8MHz, 5.6MHz, 11.2MHz, 22.4MHz

USB storage device:
- It can use devices that conform to the USB mass storage standard and support FAT, FAT32, exFAT, NTFS file system formats, but it cannot be guaranteed to be compatible with all storage devices or memory cards.

Power specification:
- Power supply voltage: AC230V switch: AC220-240V, 50/60Hz
AC115V switch: AC100-120V, 50/60Hz
- Standby power consumption: <1W
- Sleeping power consumption: <4W
- Maximum power consumption: <25W

Package Included:
- 1 x Host
- 1 x RM3 Remote Control
- 1 x Power Cable
- 1 x USB Cable
- 2 x WiFi Antenna
