Eloik ALK 88A Fiber Optic Splicing Machine Fusion Splicer Optica Fast Heating
Product Description:
- Fusion Splicer (portable) Fiber Optic Equipment is a Mini type Fusion splicing machine and have our own intellectual property right of fiber adjustment technology
- It adopts advanced PAS Fiber adustment technology . Adopt four motors drive, have fiber adjustment function, it is not only used for FTTX project, but also can be used for the trunk line, it is a machine which is the smallest volume ,the lightest weight ,the most fast splicing speed
- Long lifetime : 1group batteries. 200 fiber splicing ,no memory effect Lithium Batteries ,the fiber cleaver has 16 blade , long lifetime.
- Convenience: convenient for maintenance
- Six languages: Chinese, English, Russian, Portuguese, French, Spanish

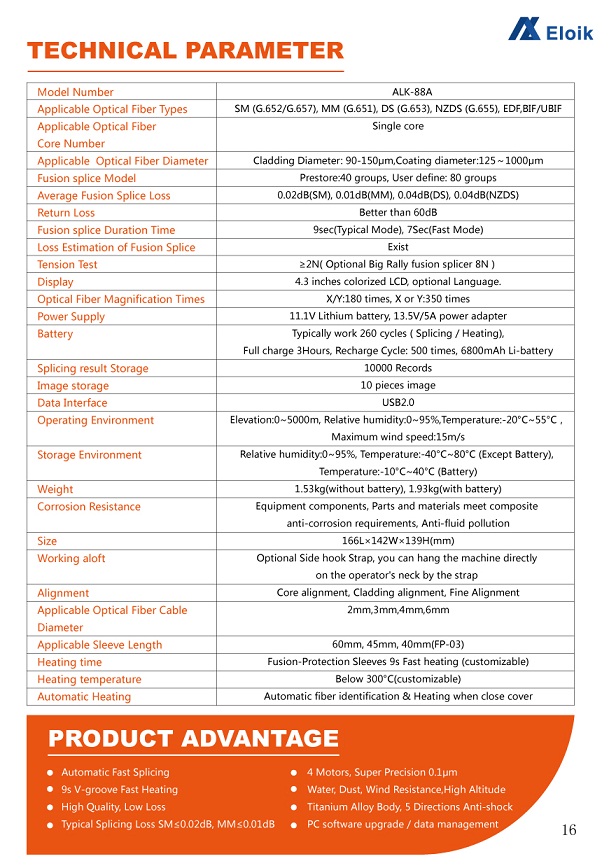

Specifications:
- Applicable Fiber Type SM,MM,DS,NZDS
- Applicable Fiber Count Single
- Splice loss evaluation Have
- Tensile test 2N
- Screen 4.3 in. color LCD, support Chinese and English display
- Optical magnification X / Y: 115 times, X, or Y: 230 times
- Power Supply 11.1V lithium battery, 13.5V/5A power adapter, 12V vehicle power supply
- Battery Typical Operating 220 (splice / heat shrink / thermal stripping) on a single charge 3h, can be reused 500 times
- Maximum storage 5000 set of the latest record storage
- Data interface USB2.0
- Operating environment Altitude 0 ~ 4000m, 0 to 95% relative humidity, temperature -10 ~ 55degree, the maximum wind speed 15m / s
- Storage Conditions 0 to 95% relative humidity, temperature -40 ~ 80degree (except battery), temperature -10 ~ 30 degree (battery)
- Weight 1.54kg (without battery), 1.82kg (including battery), including attachments packing gross weight: 5.38Kg
- Corrosion resistance Device components, spare parts and materials used meet corrosion requirements, fluid contamination from erosion
- Size 150D×130W×126H(mm)
- packing New waterproof, drop, more than can be heavy 300KG

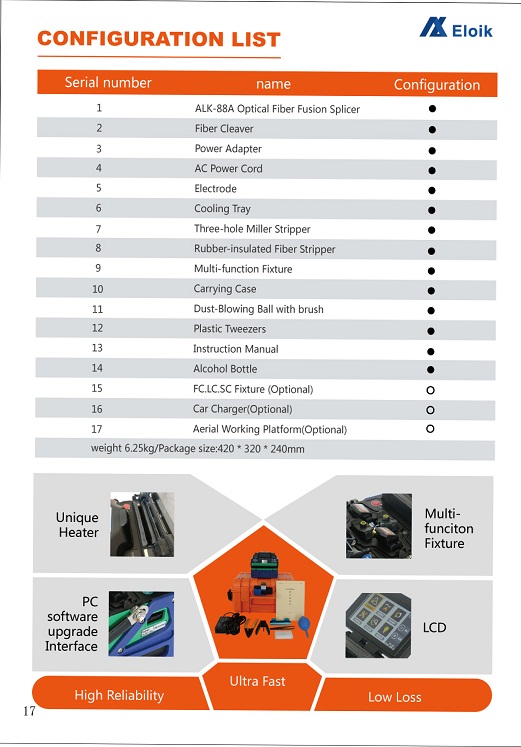

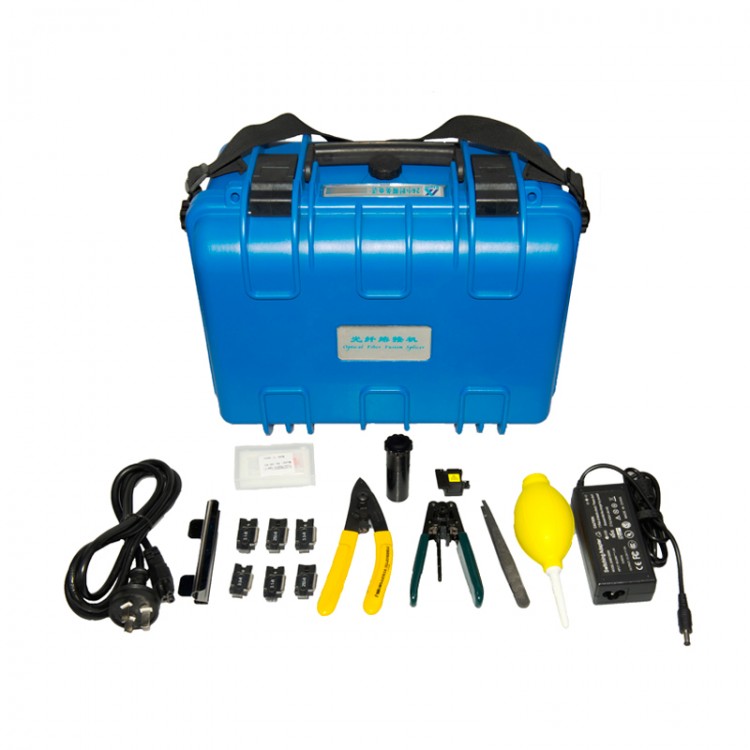

Package List:
