EM415PRO Automotive Wire Tracker Automotive Short and Open Finder Circuit Tester

EM415PRO Automotive Wire Tracker Automotive Short and Open Finder Circuit Tester

Description:
This instrument is designed to identify and trace wires or cables without damaging the insulation. You can also use it in checking short circuit and locating open circuit and so on. There is a Transmitter and a Receiver included in the package.

Functions:
- Tracing of wires is made possible even inside bundles, conduits, behind  panels, under carpets, upholstery, etc
- Easy to use: simply connect the transmitter in series with the circuit or wire  under test, (i.e.: in place of a blown fuse, across a connector, in series with  an open wire, a light bulb socket, etc.), and scanning the circuit/wire with the  tracers flexible probe to find the trouble spot
- 42 V Ready: for use in the new generation of vehicles with mixed or single 42  Volt systems
- Operates on DC voltages from 6 to 42 volts
- Internally protected against power surges and overloads
- 7" flexible probe allows reaching wires in congested places
- Transmitter and Receiver LEDs show open or short circuit conditions
- Adjustable sensitivity for all tracing situations
- No wire piercing required, non-contact technology!
- Application: Checking for short circuit, locating open circuit, wire identification, wire tracking, etc.

How to Use this Probe?
The probe of the Receiver is built of coiled steel and may be bent as needed, in order to reach wires in ongested or difficult areas. Depending on the circuit  characteristic and sensitivity settings, the probe will pick up the signal from  the wire in a range of positions. However, for the best possible range the Receiver’s probe tip (black cap) should be positioned perpendicular (at 90°) to the wire being traced and either above or below it.

Caution:
1. Only for us on DC voltage,don't connect to circuit exceedomh 42 volts DC under any circumstances.
2. Do not use on AC voltage.
3. Do not use on any circuit directly or indirectly connected to AC lines or any other AC power source.
4. Do not use with any component or circuits of the ignition system.
5. Before using this device,check the vehicle's electrical wiring and disconnected any part or system sensitive to voltage and current pulses such as air bags,electronic control modules, etc.
6. After you finish checking vehicle,make sure you have correctly restored all the connections which you disconnected.
7. Always follow the instructions and procedures indicated in the vehicle's service manual before attempting to disconnect any part of subsystem of the electical circuit.

Specifications:
- Model Number: EM415PRO
- Type: Automotive Fault Diagnosis Tool
- Working Temperature: 37℃

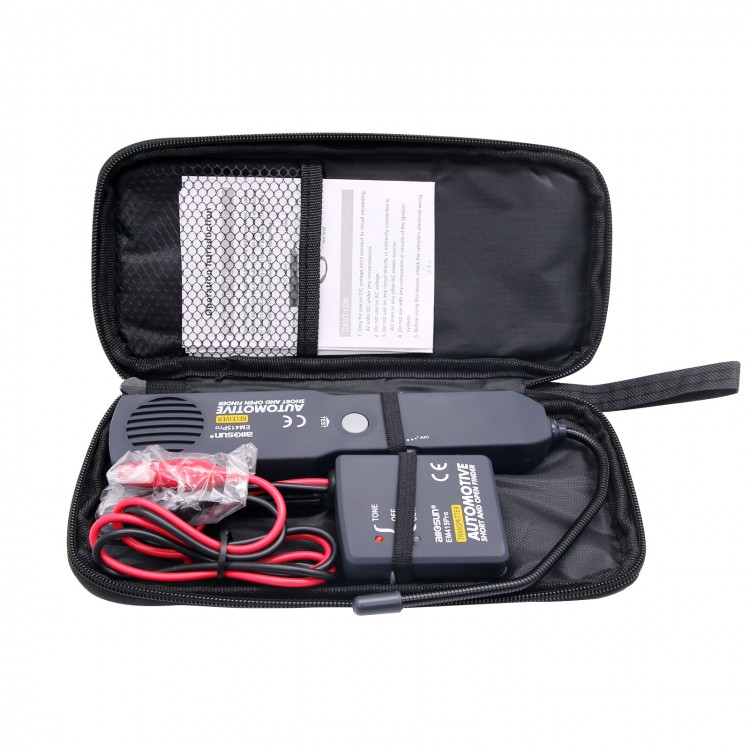

Package Included:
- 1 x Automotive Short and Open Finder Transmitter
- 1 x Automotive Short and Open Finder Receiver
- 1 x Carrying Pouch
- 1 x English User Manual

Note: Batteries are not included in the package.
