Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $73.01 | $71.52 | $69.29 | $66.31 | Contact US |

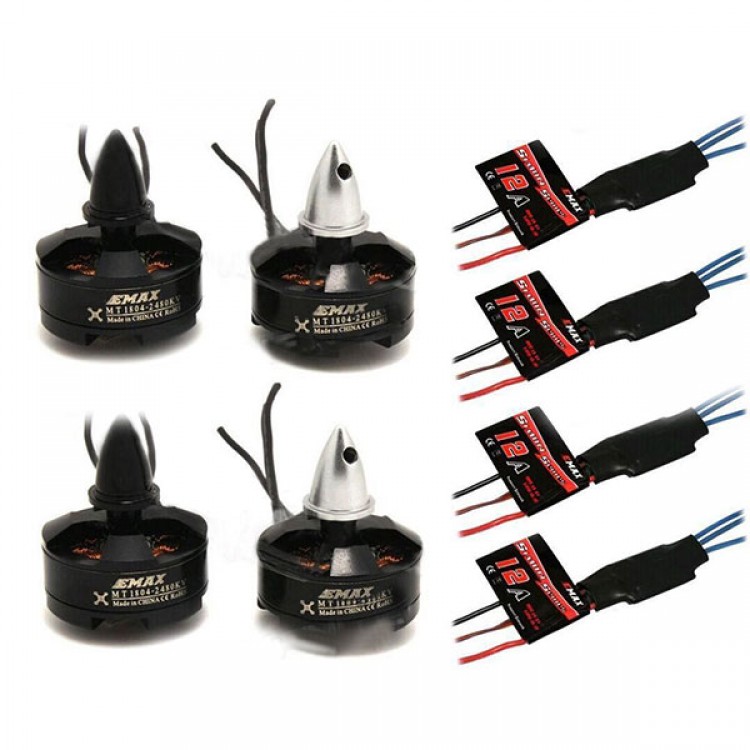

Emax 12A Speed Controller ESC + MT2204-2300KV Motors For FPV QAV250 Quadcopter
Simonk-12A ESC
Features:
1.1 Based on Simon K firmware, further optimized to the perfect drive performance.
1.2 Low-voltage protection, over-heat protection and self-check functions.
1.3 Separate power supply for MCU and BEC, enhancing the ESC’s ability of eliminating magnetic interference.
1.4 Parameters of the ESC can be set via program card or transmitter.
1.5 Throttle range can be set to be compatible with different receivers.
1.6 Equipped with built-in linear BEC or switch BEC.
1.7 Max speed: 210,000 rpm for 2-pole, 70,000 rpm for 6-pole, 35,000 rpm for 12-pole.
Specifications:
2.1 Continuous Current: 12A
2.2 Burst current (10S): 15A
2.3 Li-xx Battery (cell): 2-3
2.4 Dimension (L*W*H): 25mm x 20mm x 7mm
2.5 Weight wires Included: 9
2.6 BEC Mode: Linear
2.7 BEC Output: 1A/5V
2.8 Programmable: Yes
MT2204 2300KV Brushless Motor
Specification:
1.1 KV: 2300
1.2 Max Trust: 440g
1.3 No. of cell: 2-3S
1.4 Framework: 12N14P
1.5 Propeller: 5" - 6"
1.6 Length: 32.2mm
1.7 Shaft: 3mm
1.8 Diameter: 27.9mm
1.9 Weight: 25g
Package Includes
- 4 x Simonk-12A ESC
- 4 x MT2204 Brushless Motor (2CW+2CCW)
- 100% Brand New, Emax Original Product
