| Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
|---|---|---|---|---|---|
| Price /Unit | $31.16 | $30.53 | $29.57 | $28.30 | Contact US |
SimpleFOC Shield V2.0.4 BLDC Motor Driver Board Compatible with Ar-duino UNO & for Gimbal Motors
$29.43
SimpleFOC Shield V1.3.3 Brushless DC Motor Driver Board for Low-power FOC Applications up to 5Amps
$24.18
FLYCOLOR Raptor 5th Generation G071 60A 3-6S 4-in-1 ESC 128K Drone ESC Suitable for FPV Drones
$76.28

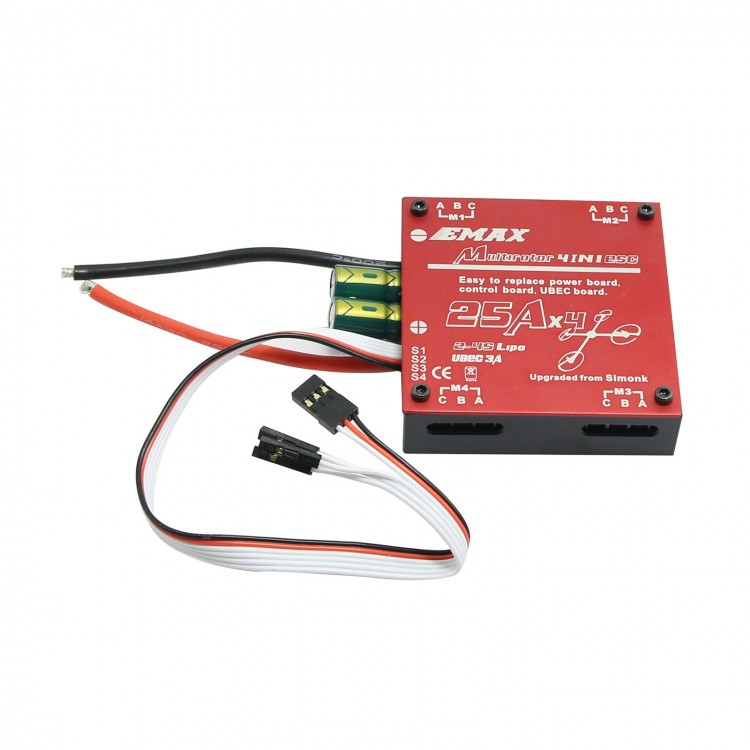

EMAX 25A Quattro 25A X4 BEC UBEC Multi-rotor 4 in 1 Brushless ESC Quadcopter KK
Features:
- Based on SimonK firmware, the EMax multi rotor 4-in-1 is designed for quadcopters from the ground up. Functions include low-voltage protection, over-heat protection, a built in UBEC, and self-check functions.
- This ESC has also been designed to be modular, meaning the power board, UBEC and control board are all separate and removable, making for easy part placement, and modification.
- The throttle range is customisable for each ESC making this compatible with all common receivers.
Specifications:
- Cont. current: 25A x 4
- Burst current: 30A x 4
- BEC mode: Switch mode
- BEC output: 5V/3A
- Battery cell: 2S-4S (7.4V-14.8V)
- Size: 67.5 x 64.4 x 17mm
- Weight: 130g (including wires)
- Programmable: Yes
Package list:
- 1 x EMAX 25A Quattro ESC
