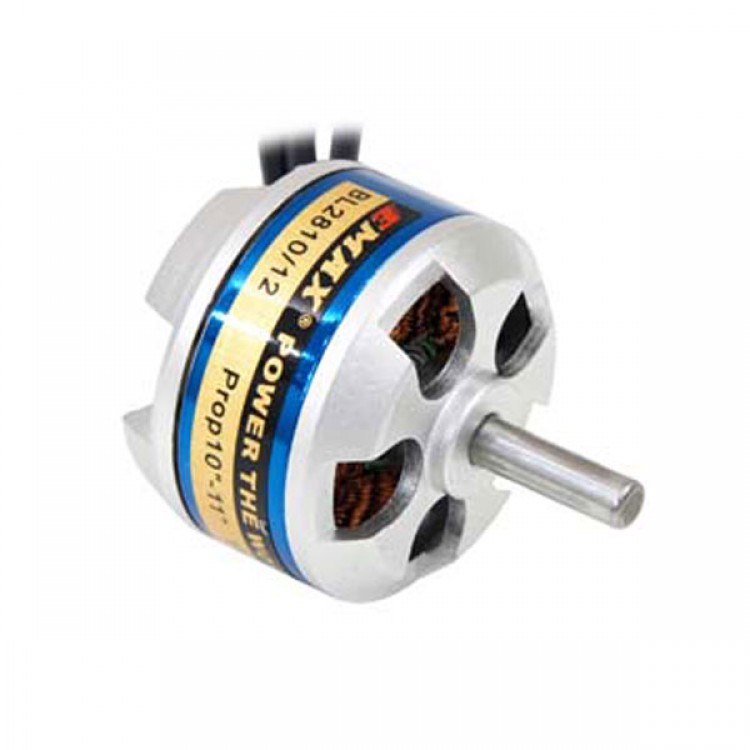

EMAX BL2810 1100KV Outrunner Brushless Motor
Specifications:
- Model: BL2810/12
- No. Of cells: 3X Li-Poly
- RPM/V: 1100
- Max. efficiency: 82%
- Max. efficiency current: >75%
- No load current / 10V: 0.5 A
- Current capacity 38 A/60s
- Dimensions: 30x10 mm
- Shaft diameter: 5 mm
- Weight: 86 g/3.03 oz
- Recommended model weight: 600-1400g
- Recommended prop without gearbox: 11*7; 10*5.5
BL2810 KV=1100 Sample data sheet
| Model | Voltage | Propeller | RPM | Max Current | Max Thrust |
| BL2810 | 12.0V | 11X5.5 (Thin) | 8500 | 32A | 1150g |
| BL2810 | 12.0V | 11X7 (Thin) | 8050 | 38A | 1260g |
