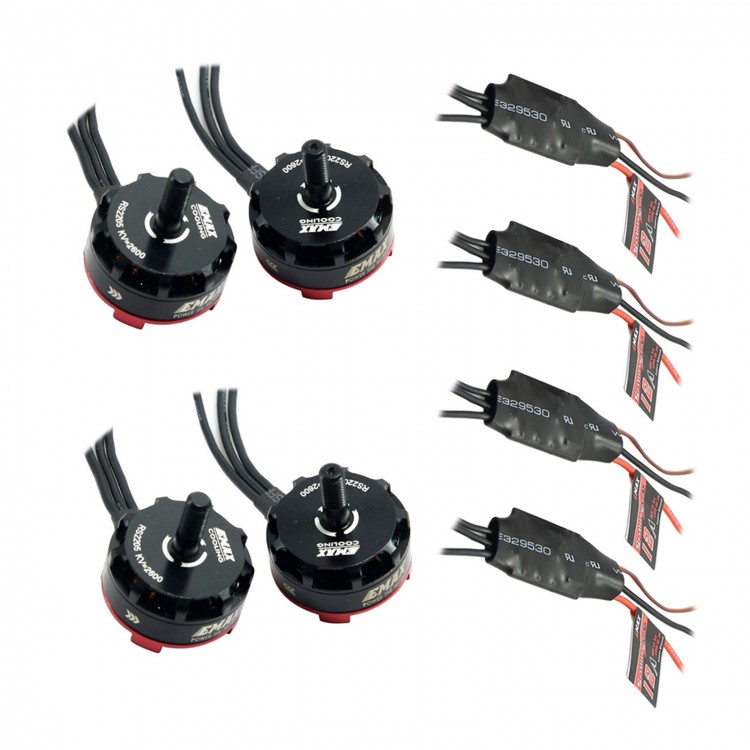

Emax RS2205 2300KV Racing Edition Motor with Simonk 12A ESC for FPV QVA250 Quadcopter Multicopter 4-Pack

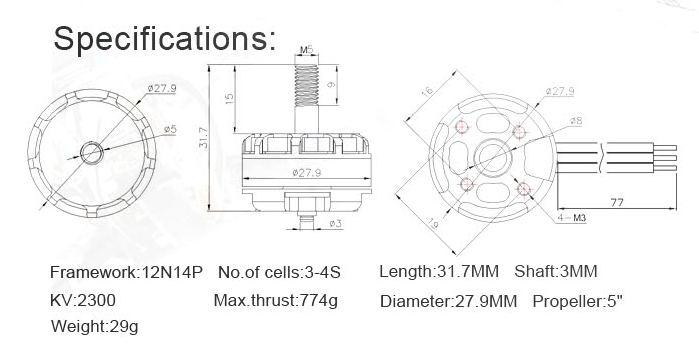

RS2205 Motor Specification:
- Brands: Emax
- Model: RS2205-2300
- Framework: 12N14P
- No. of Cells: 3 - 4S
- Color: Red
- Length: 31.7mm
- Shaft: M5
- KV: 2300
- Max Thrust: 1024g
- Diameter: 27.9mm
- Propeller Suggested: HQ 5045 BN
- Weight: 30g
- Quantity: 2 pairs (CW+CCW)
RS2205 Motor Features:
- Race Spec Performances
- High Strength N52 Neodyum Magnets
- Active Cooling Fins Greatly Reduce Motor Temeratures
- Low CG, Light Weight Design
- Japanese Bearing For Performances
- Enchance Anti Off U Ring For Safety & Stablility
- Dual Lock CW / CCW Locknuts
Simonk 12A ESC Features:
- Based on Simonk programme
- Low voltage protection, over current protection, power on self detection function
- Supportmax rotate speed: 210,000r（2 magnetic poles), 70,000r(6 magnetic pole), 35000r(12 magnetic poles)
- MCJ and BEC adopts different stabilizer, improve anti interference ability
- ESC multiparameters can be set through RC
- Throttle range can be set, to compatible with different receiver, has very good low speed performance
- Built in linear BEC or switch BEC
Package Include:
- 2 x CCW RS2205-2300KV Motor
- 2 x CW RS2205-2300KV Motor
- 4 x Simonk 12A ESC
