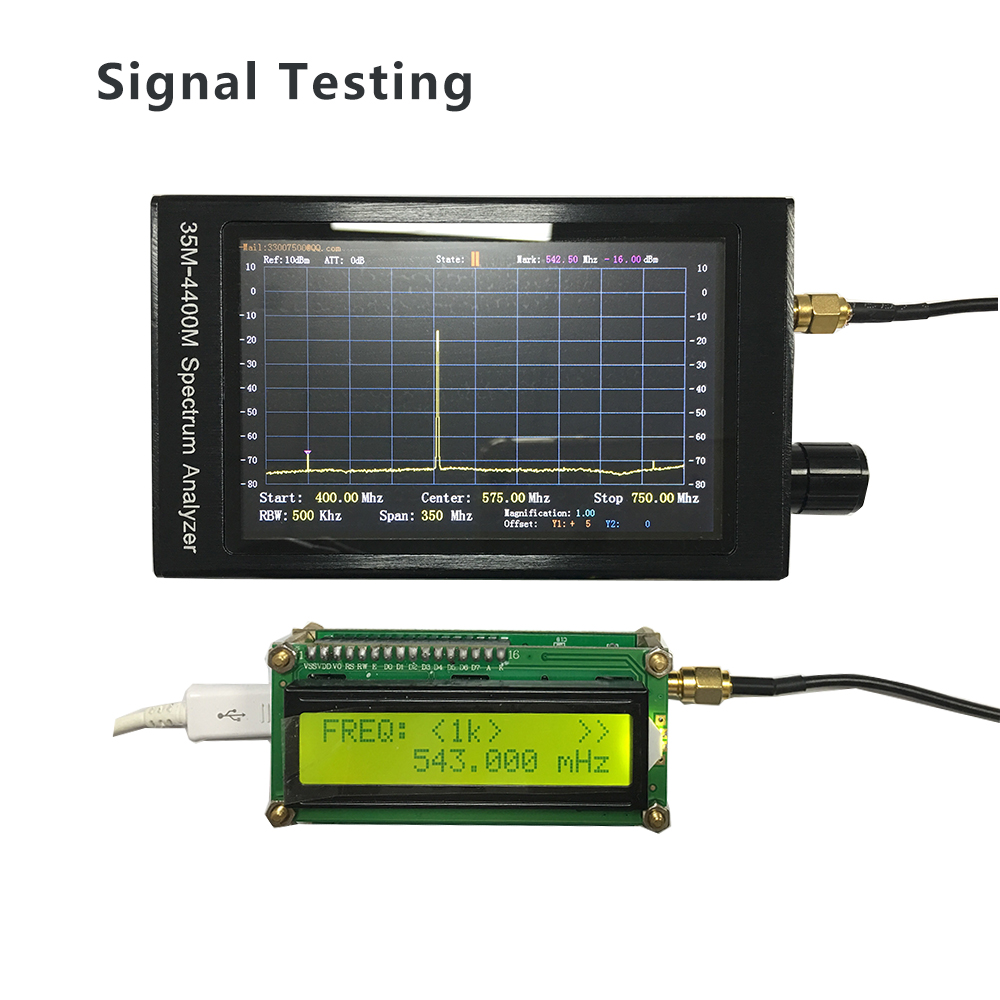

EMC Testing Version 35Mhz - 4400MHz Handheld Portable Spectrum Analyzer 4.3-inch TFT LCD Screen with Gain Block and Probe
Specification:
- Size: 145 x 70 x 30mm
- Weight: 350g
- For STM32F407 dingle chip computer (main frequency: 168M) + 4.3-inch TFT LCD (480 x 800) screen
- Full aluminum alloy shell + rotary encoder control + all English display interface + USB power supply
- Support USB power supply and built-in lithium battery power supply
- Spectrum display range: 35M - 4400MHz
- Input impedance: 50ohm
- RBW: 10kHz, 50kHz, 100kHz, 200kHz, 500kHz adjustable
- Number of screen scanning points: 700
- Scanning span: 7M (10kHz), 35M (50kHz), 70M (100kHz), 140M (200kHz), 350M (500kHz)
- dBm range: -80 ~ 10dB (support manual adjustment of calibration amplitude). There is no amplification circuit in the machine. If you need to measure small signals, an external amplifier is required.
- Maximum access signal: 10dB
- Working mode: superheterodyne scanning spectrometer, single scanning time: 800ms.

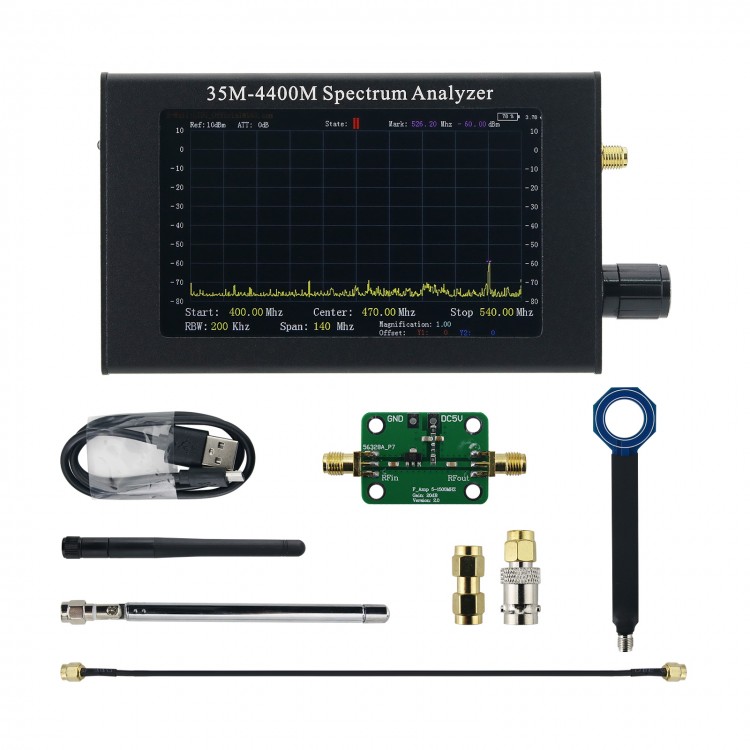

Package Included:
- 1 x Set of Spectrum Analyzer
