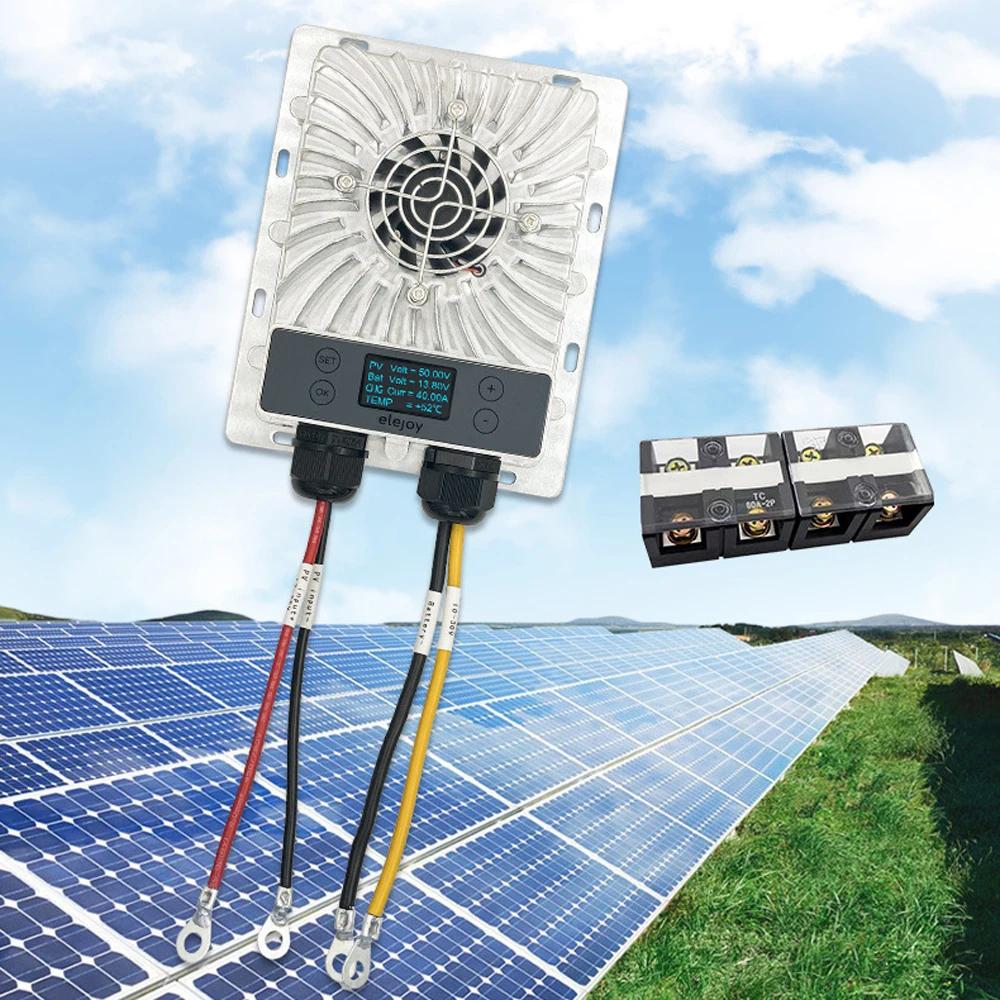

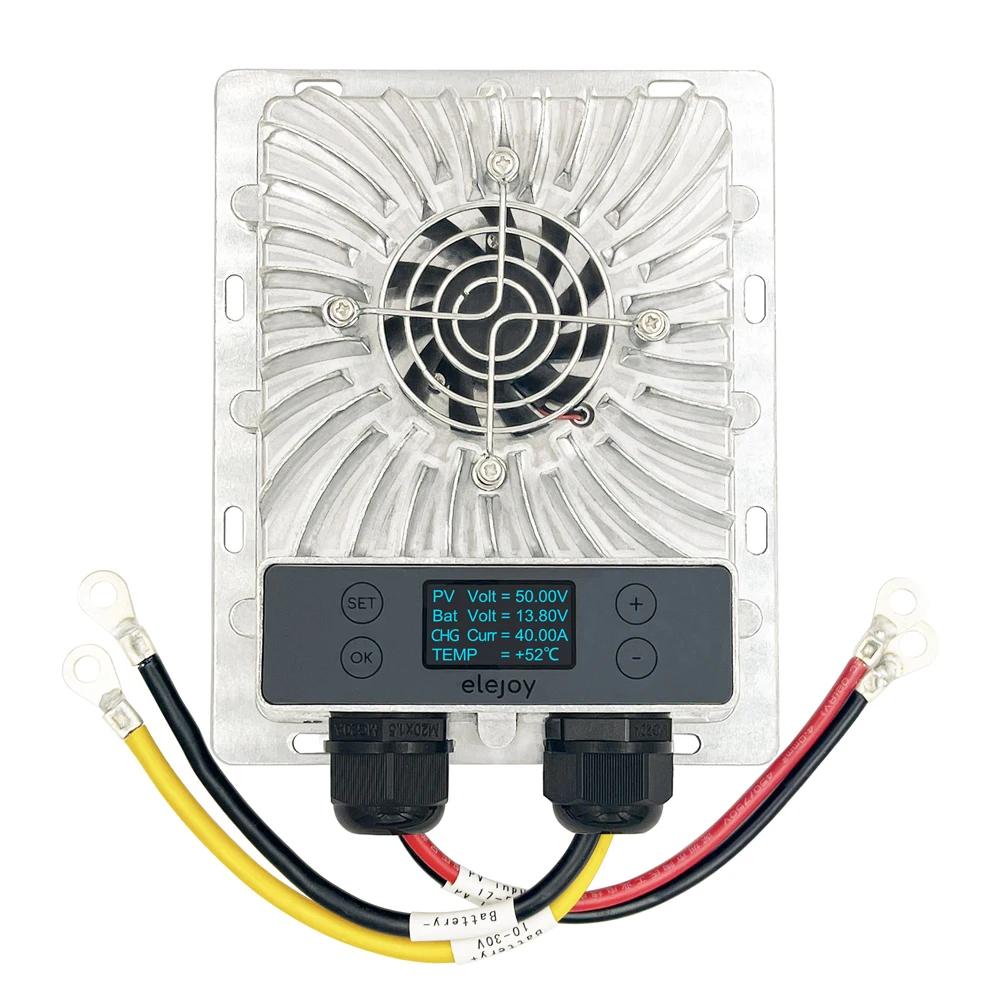

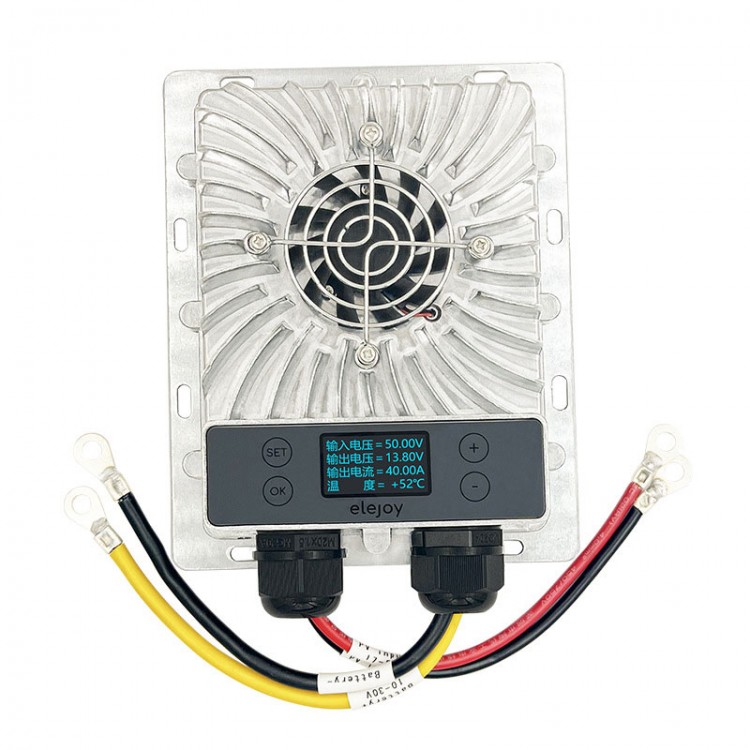

EMD600W Buck MPPT Solar Charging Controller 10V-30V Output Voltage Adjustable Controller with LCD Display IP65 Waterproof

EMD600W Buck MPPT Solar Charging Controller 10V-30V Output Voltage Adjustable Controller with LCD Display IP65 Waterproof

Description:
- This solar controller adopts LCD display, you can see the input voltage, output voltage, output current and temperature clearly at a glance. Maximum power point tracking technology, MPP T tracking efficiency up to 99%. Intelligent temperature control, fan cooling. Support lead-acid battery, ternary lithium battery, lithium iron phosphate and other battery types.

Highlights:
- LCD display of input and output voltage and current
- Output voltage setting
- Support lead-acid battery and lithium battery
- Efficient synchronous rectification scheme
- Efficient MPPT real-time tracking function
- Rain-proof, dust-proof and shock-proof
- Support lithium battery and lead-acid activation
- Intelligent temperature control, fan cooling

Features:

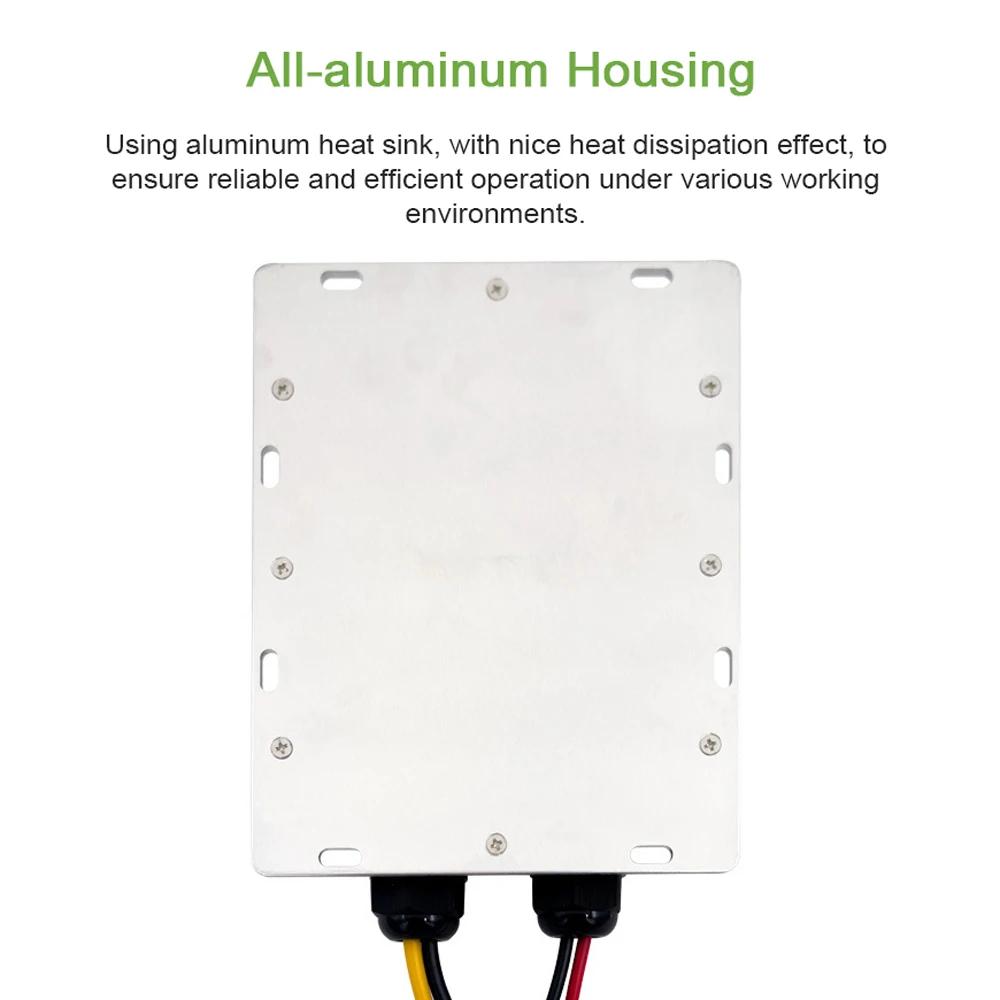

- All-aluminum Housing: using aluminum heat sink, with nice heat dissipation effect, to ensure reliable and efficient operation under various working environments.

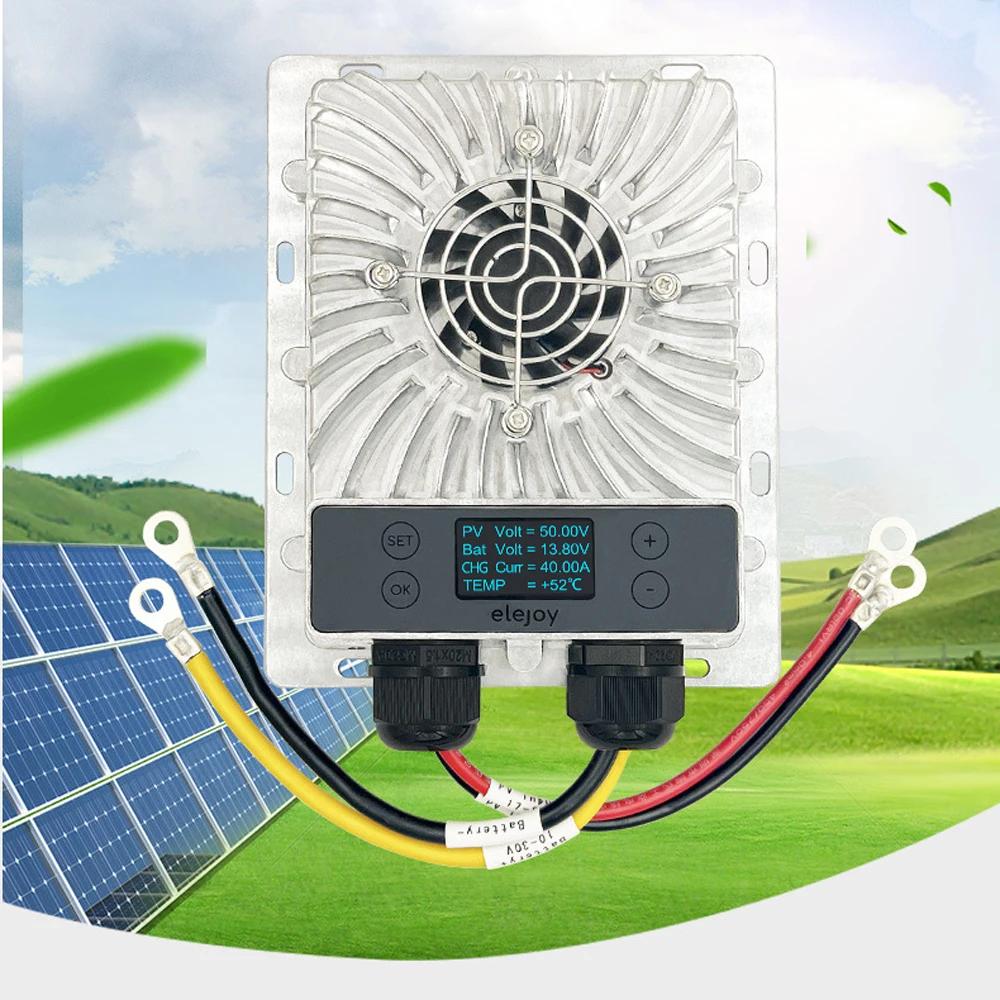

- LCD Display: adopts LCD display, you can see the input voltage, output voltage, output current and temperature clearly at a glance.
- MPPT Technology: maximum power point tracking technology, MPPT tracking efficiency up to 99%, compared to the PWM algorithm, the efficiency increased by 15%-20%.

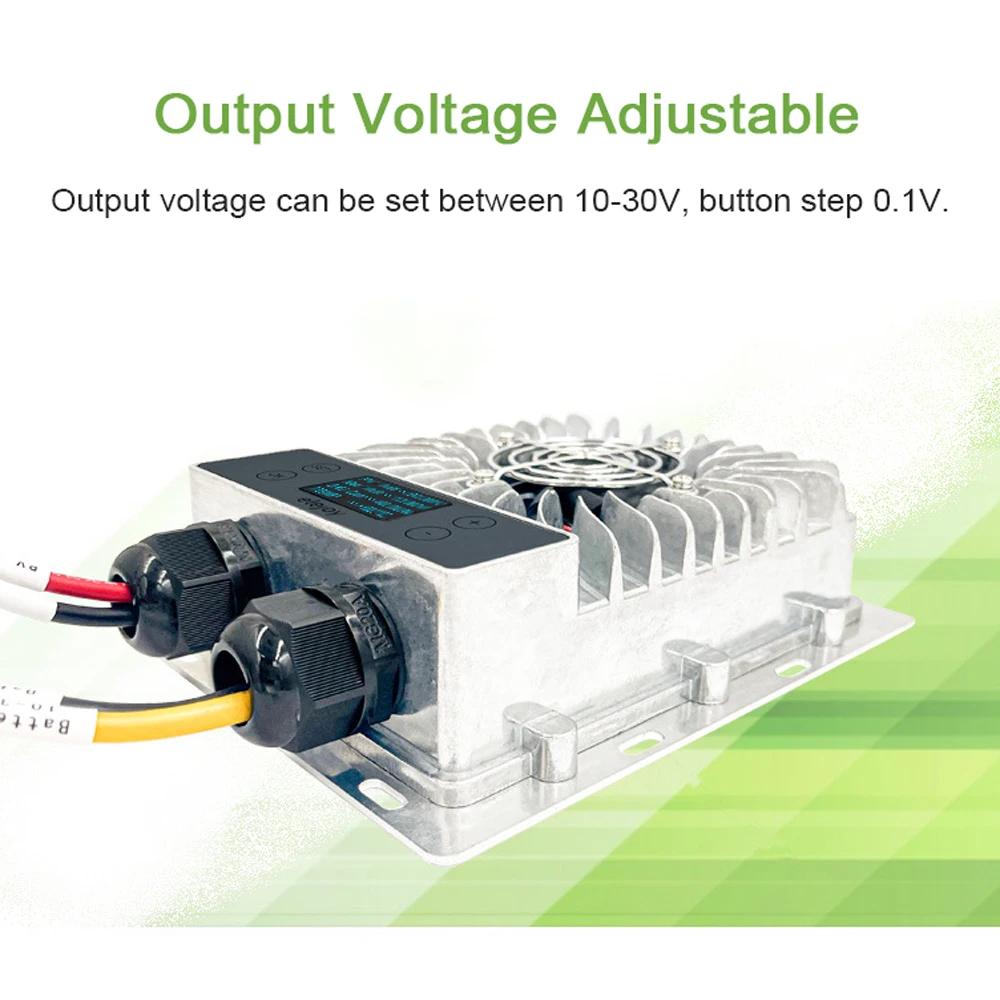

- Output Voltage Adjustable: output voltage can be set between 10-30V, button step 0.1V.

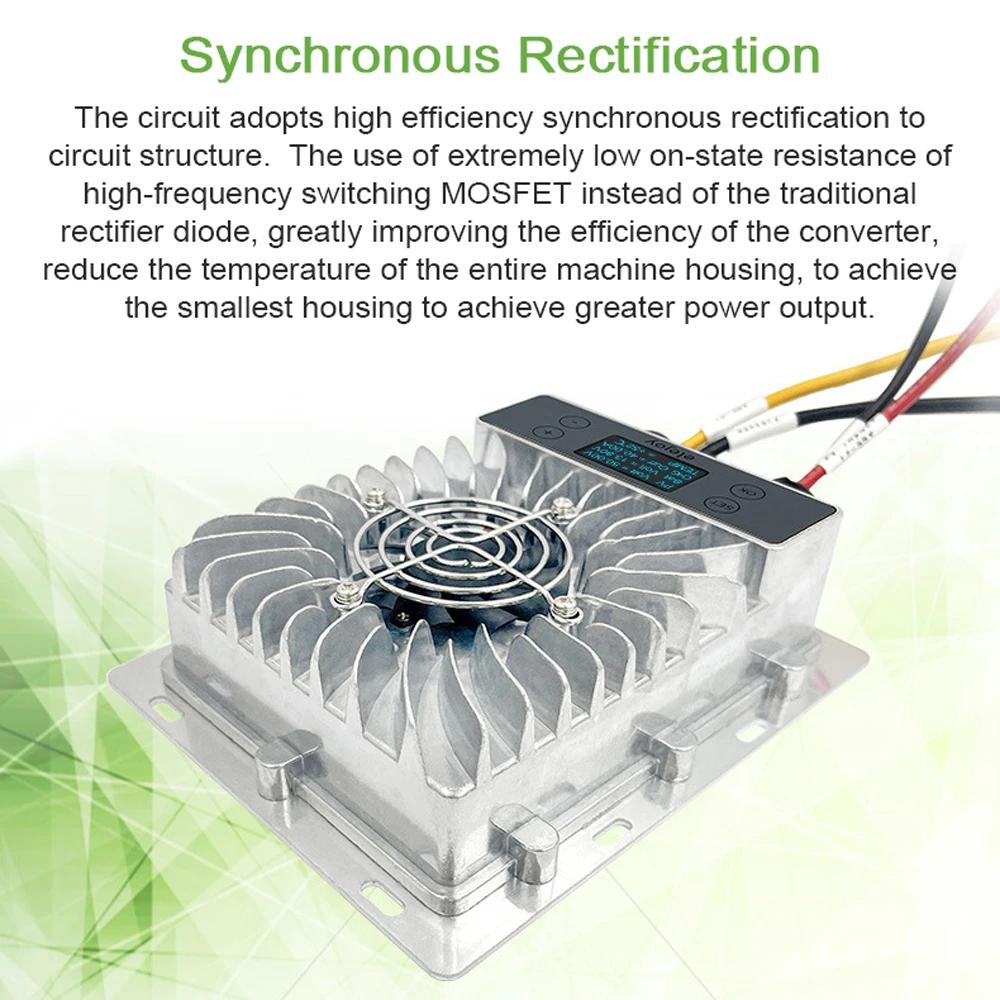

- Synchronous Rectification: the circuit adopts high efficiency synchronous rectification to circuit structure. The use of extremely low on-state resistance of high-frequency switching MOSFET instead of the traditional rectifier diode, greatly improving the efficiency of the converter, reduce the temperature of the entire machine housing, to achieve the smallest housing to achieve greater power output.

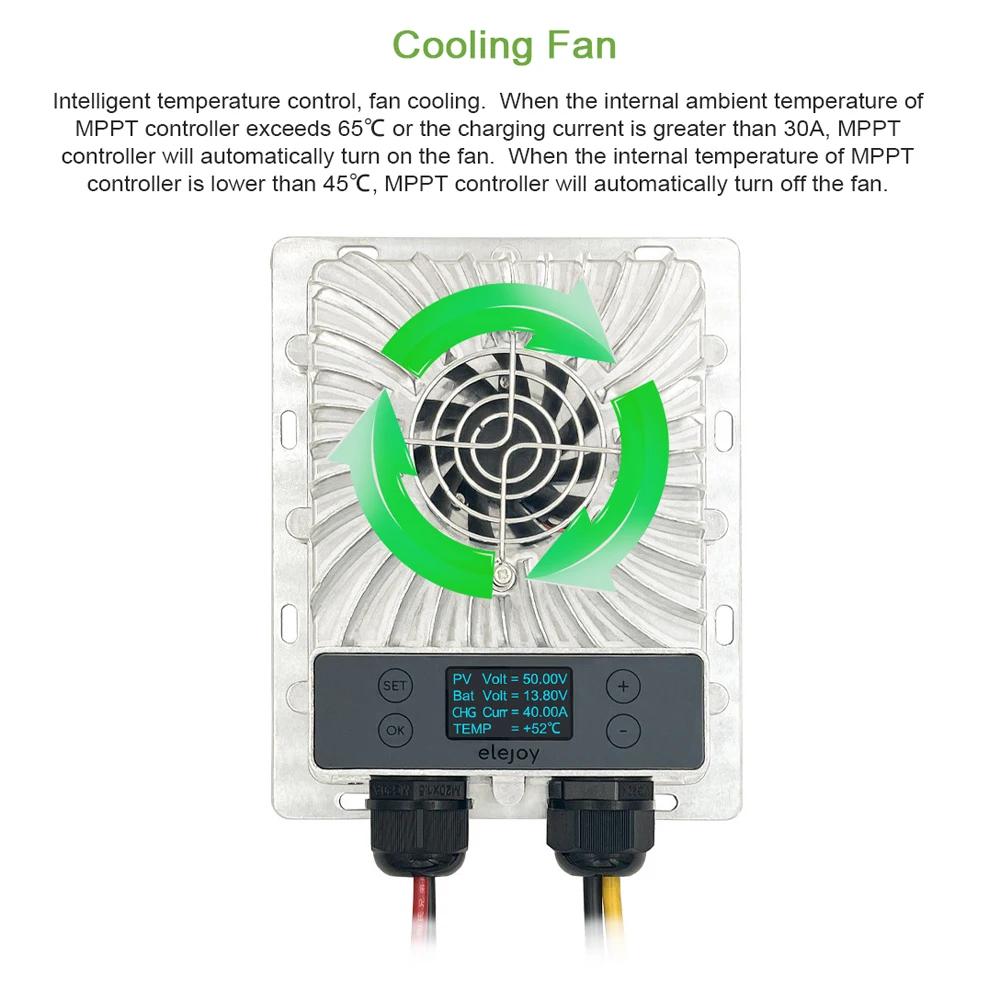

- Cooling Fan: intelligent temperature control, fan cooling. When the internal ambient temperature of MPPT controller exceeds 65℃ or the charging current is greater than 30A, MPPT controller will automatically turn on the fan. When the internal temperature of MPPT controller is lower than 45℃, MPPT controller will automatically turn off the fan.
- Perfect Protecting Mechanism: with perfect protections mechanism for under voltage, over temperature, short circuit, output over current, over load, backflow prevention, etc.

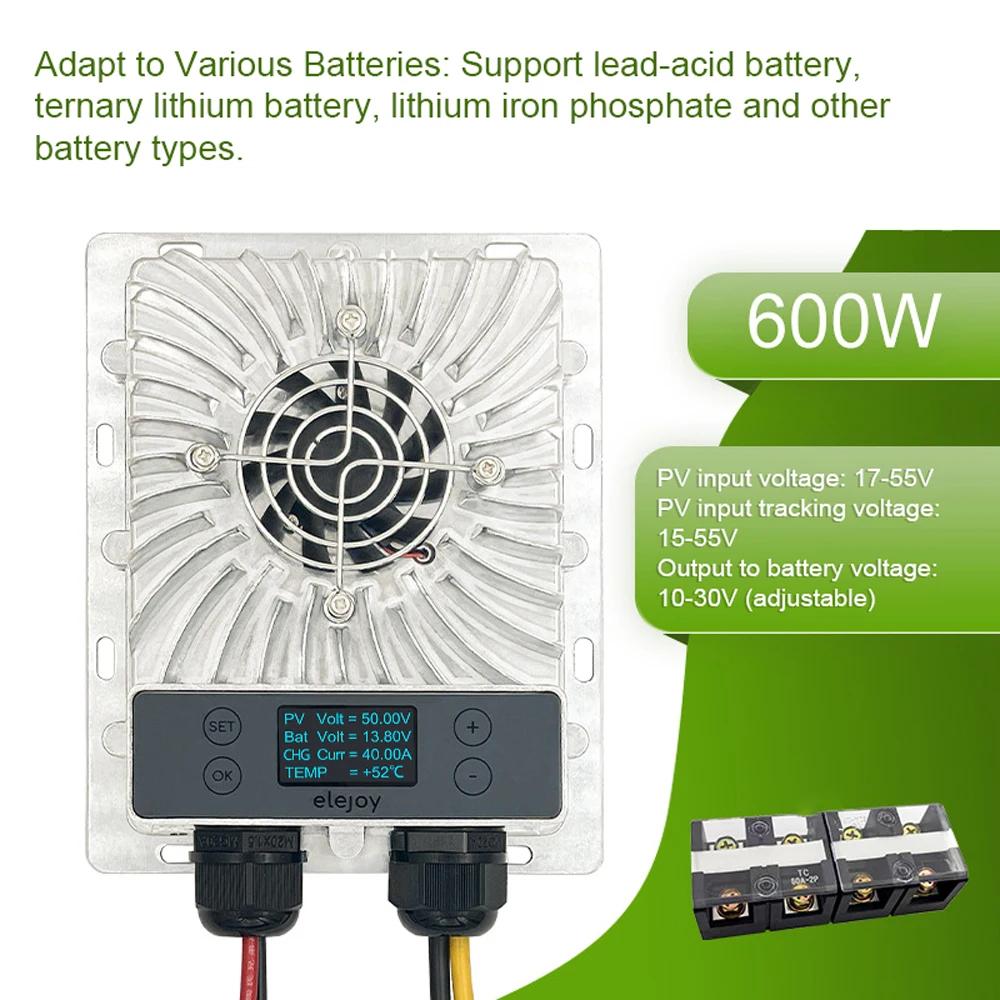

- Adapt to Various Batteries: support lead-acid battery, ternary lithium battery, lithium iron phosphate and other battery types.

Specification:
- Name: MPPT Solar Controller
- Material: plastics
- Display: LCD display
- PV input power: 600W
- PV input voltage: 17-85V
- PV input tracking voltage: 15-85V
- Output to battery voltage: 10-30V (adjustable)
- Output to battery current: 40A
- No-load loss: 0.5-0.8W
- Voltage adjustment rate: 1%
- Load adjustment rate: 5%
- PWM conversion efficiency: 97%
- MPPT efficiency: 99%
- Battery terminal short-circuit protection: support
- Battery anti-reverse protection: not supported
- Over-current protection: support
- Temperature protection: support
- Protection level: IP65
- Operating temperature: -40℃ to +65℃
- Installation wire length: 100mm

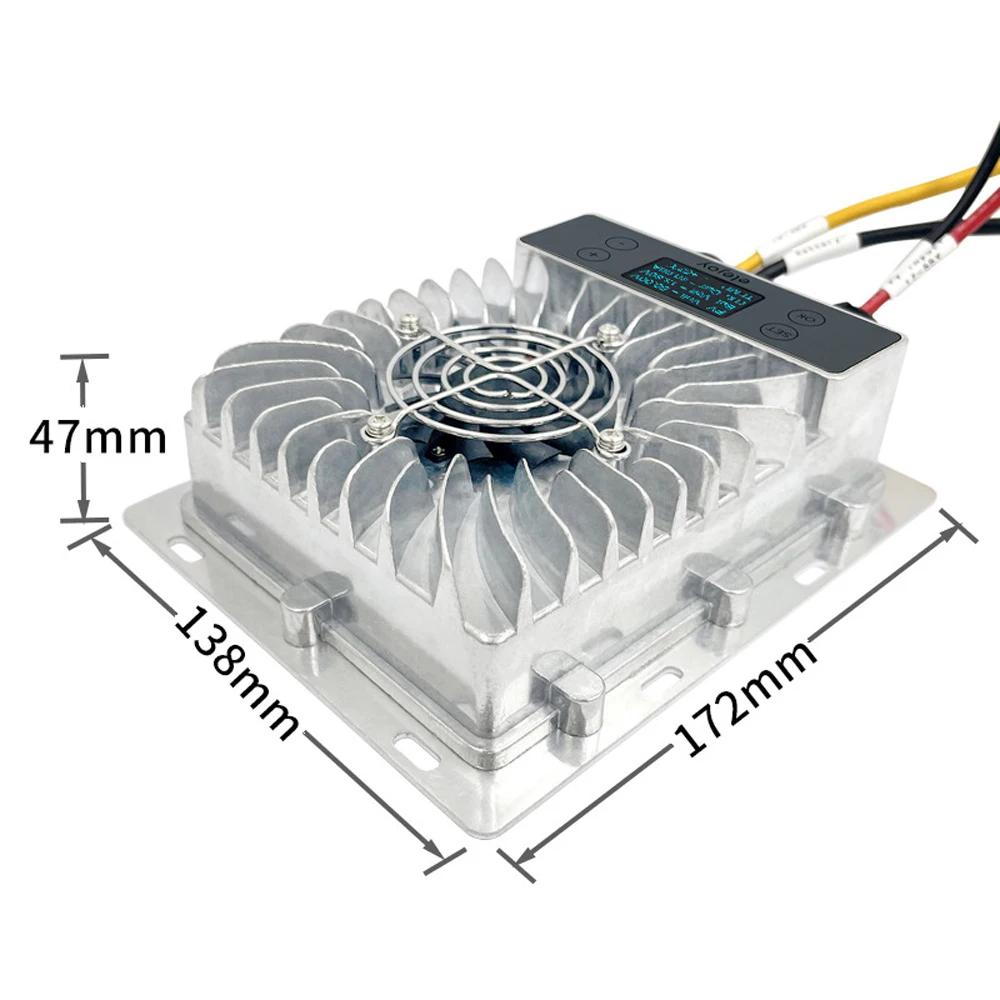

- Item size: 172 x 138 x 47mm
- Item weight: 1000g

The output voltage of the controller can be adjusted by the user on site, and the voltage setting range will be automatically limited by the system based on the input voltage. If it exceeds the range, there will be no response and it will be invalid. The specific operation method is as follows:
1. Under normal working conditions, press the [SET] button to enter the [Set Voltage Display Interface] from the [Normal Working Display Interface] on the LCD display screen.
2. Users can increase or decrease the set voltage value by pressing the [+] or [-] buttons as needed. Click the button to change 0.1V each time, and hold down the button to quickly increase or decrease continuously. The voltage setting range system will automatically limit based on the input voltage, and there will be no response to the button if it exceeds the range.
3. After adjusting to the desired [set voltage value], press the [OK] key once to confirm. Only then will the final [set voltage value] be remembered and the controller display [set successful].
4. After 4 seconds of successful setting, the controller exits the [Set Voltage Display Interface] and returns to the [Normal Operation Display Interface].
5. Although entering the [Set Voltage Display Interface], if the [OK] button is not pressed within 4 seconds after the last press of the [+] or [-] button, the controller will automatically exit the [Set Voltage Display Interface]. The adjusted [Set Voltage Value] is invalid and will not be remembered.

Package Included:
- 1 x Solar Controller
