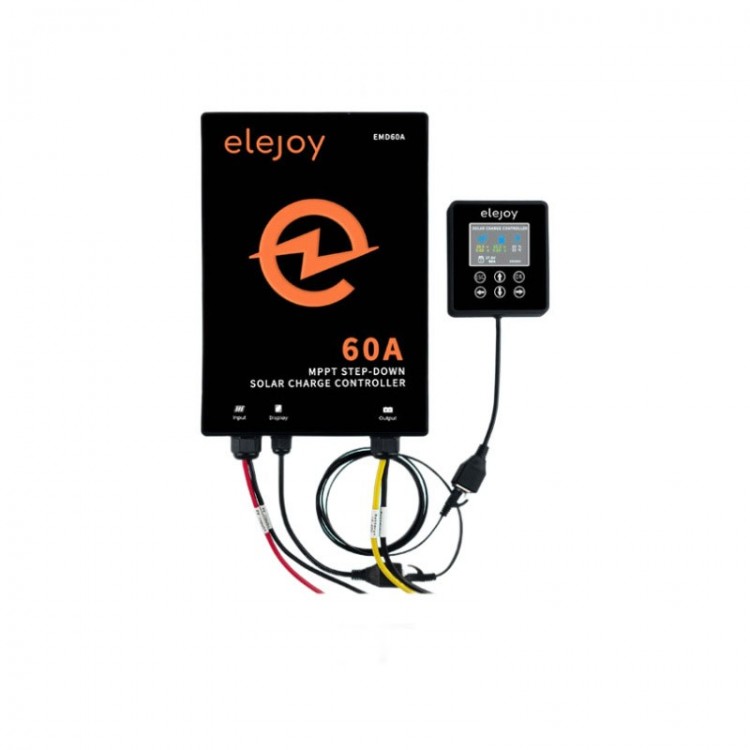

EMD60A 10-60V Adjustable Output MPPT Solar Charger Controller 60A for RV Photovoltaic Power Generation and Energy Storage
Description:
- The MPPT controller utilizes Solar Maximum Power Point Tracking (MPPT) technology to extract maximum power from the solar array. The tracking algorithm is fully automatic and does not require user adjustment. MPPT technology tracks the array maximum power point as it varies with weather conditions, ensuring that maximum power is harvested from the array throughout the course of the day.
Features:
- The EMD60A series buck type MPPT solar charge controller is an intelligent solar controller designed for small and medium-sized off-grid photovoltaic power generation systems, with a maximum output current of 50A. Using industry-leading MPPT (Maximum Power Point Tracking) technology, it achieves maximum power tracking of solar panels, enabling it to quickly and accurately track the maximum power point of solar panels in any environment. This allows the controller to obtain the maximum energy from solar panels in real-time, significantly improving the energy utilization of the solar system.
- Using MPPT (Maximum Power Point Tracking) technology, the efficiency of MPPT tracking reach up to 99%.
- Using high efficiency synchronous rectifier circuit structure.
- Input voltage: 20-130V; Output voltage: 10-60V; Output current: 60A.
- MPPT Efficiency: ≥ 99%.
- Output voltage adjustable.
- Support for lead-acid & lithium battery etc.
- Supports lithium battery and lead-acid activation.
- High-definition LCD screen display input voltage, output voltage & output current
- Intelligent temperature control & use a fan for heat dissipation
- Under-voltage protection, over-temperature protection, short-circuit protection, output over-current protection, over voltage protection, reverse current protection.
- High-quality aluminum radiators & high-temperature reduction treatments ensure reliable & efficient operation in various working environments.
- When the internal ambient temperature of the MPPT controller exceeds 65℃ or the charging current is greater than 30A, the MPPT controller will automatically turn on the fan.
- Using high-frequency switch for MOSFETs with extremely low on resistance instead of traditional rectifier transistors greatly improves the conversion efficiency of the controller, reduces the temperature of the entire machine casing, and achieves larger power output with the smallest casing.
Specification:
- Model: EMD60A
- Boost voltage: > 20V
- Input voltage: 16 - 130V at boost voltage > 20V; 16V - 130V at 12V battery; 32 - 130V at 24V battery; 46 - 130V at 36V battery; 62V - 130V at 48V battery
- Output voltage: 10 - 60V
- Output current: 60A at < 2700W
- No-load loss: 2.5W - 5.5W

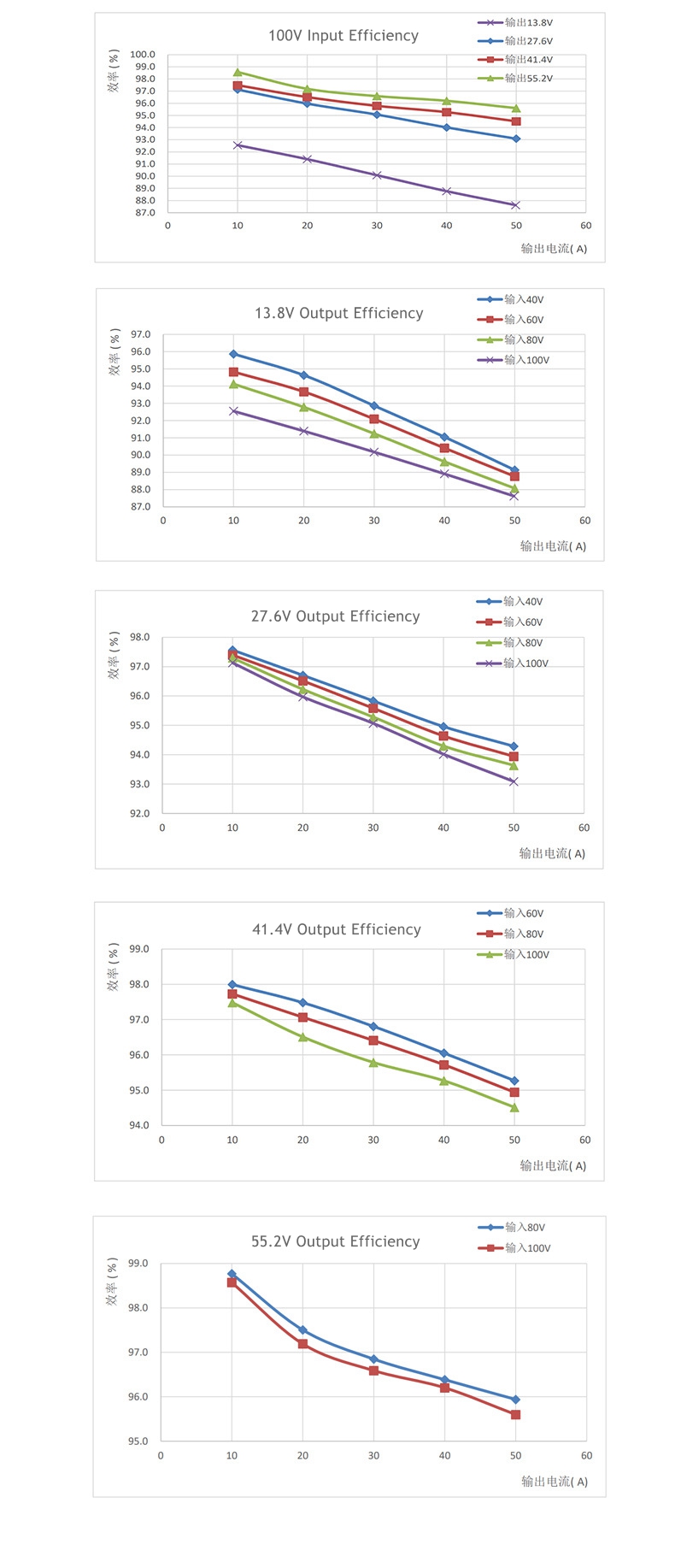

- Power supply conversion efficiency: > 93%
- MPPT efficiency: > 99%
- Voltage regulation rate: 1%
- Load regulation rate: 5%
- Heat dissipation method: air cooling
- Net weight: 3210g
Package Included:
- 1 x MPPT Controller
- 1 x Display Screen
- 1 x Network Cable
- 1 x Wiring Terminal
- 1 x User Manual
