ENC8-1U HD 8-Channel 3531D HDMI-compatible Encoder 100-240V Low Delay Video Decoder Support 1080P60 with WiFi6 Module

ENC8-1U HD 8-Channel 3531D HDMI-compatible Encoder 100-240V Low Delay Video Decoder Support 1080P60 with WiFi6 Module

Core Performance:
- CPU: for ARM Cortex A53 Quad Core at 1.2GHz, 32KB l-Cache, 32KB D-Cache
- RAM: 4GB DDR4
- FLASH: 8GB eMmc

Video Parameters:

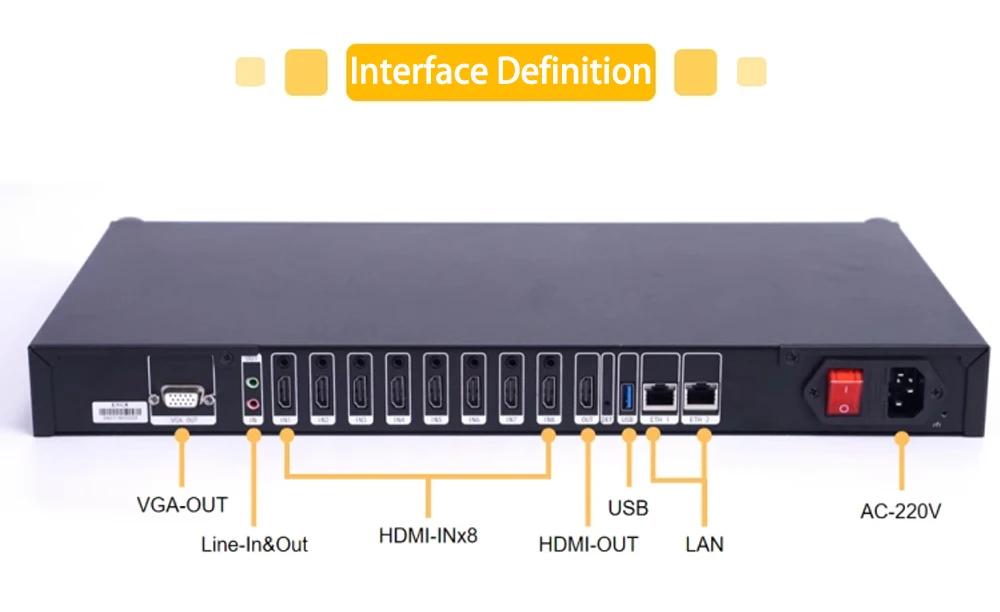

- HDMI-compatible input: 8 channels HDMI-compatible 1.3, supports up to 1080P at 60fps
- HDMI-compatible output: supports up to 4K60
- Resolution: 4K30, 1080P, 720P, 1080i, 720i, 1600 x 1200, 1440 x 900, 1366 x 768, 1280 x 1024, 1024 x 768, 800 x 600, 640 x 480
- Encoding format: H.264 Baseline profile; H.264 Main profile; H.264 High profile; H.265 Main profile; MJPEG/JPEG Baseline
- Decoding format: H264, H264, MJPEG
- Encode main: 4K, 1080P, 720P, 360P
- Resolution: Sub: 720P, 360P
- Frame rate: 1 ~ 60 adjustable
- Multiple reference frames: support SmartP, DualP
- Max Bit-rate: 20Mbps
- Code rate control: CBR/VBR/AVBR/FIXQP/QPMAP

Audio Parameters:
- Input: HDMI-compatible, 3.5mm line-in, audio can be used at the same time
- Output: HDMI-compatible, 3.5mm line-out, audio can be used at the same time
- Sampling rate: 48K, 44.1K, 32K, 16K, 8K
- Encoding format: AAC, MP3, MPEG2, PMCA, PMCU

Network Parameters:
- LAN: 10/100/100OM RJ45 network port x 2
- WIFI: optional external wifi module
- 4G/5G: support (for Huawei E8372, LinkPi 5GCPE)

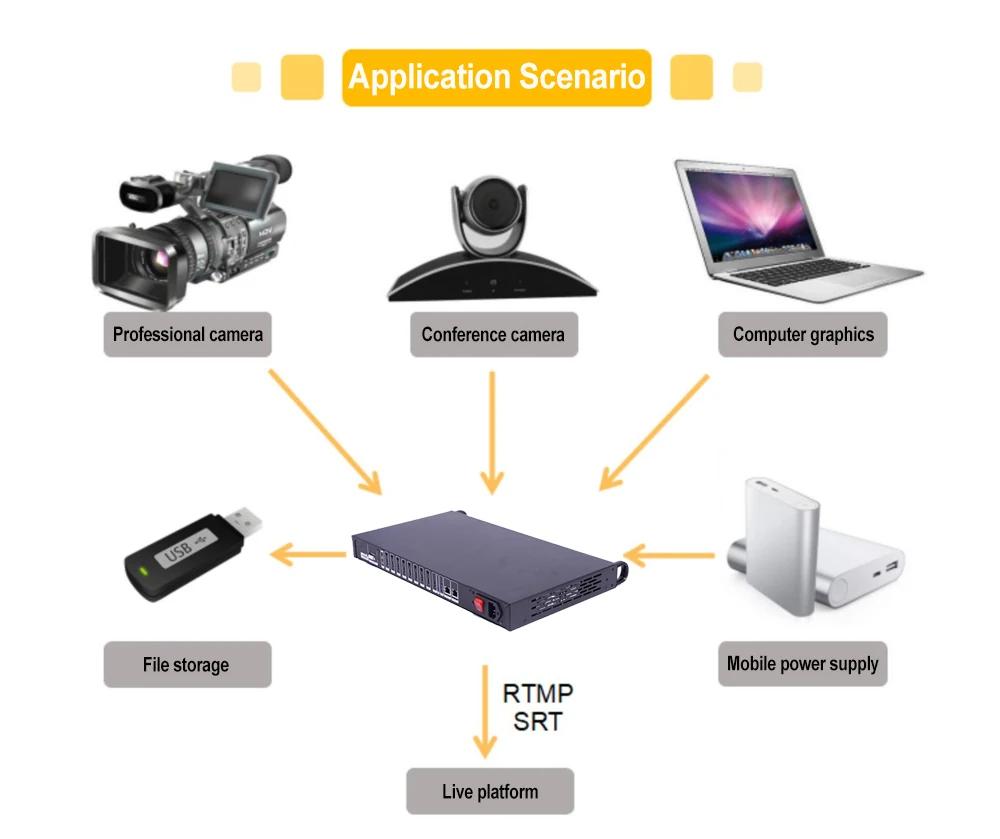

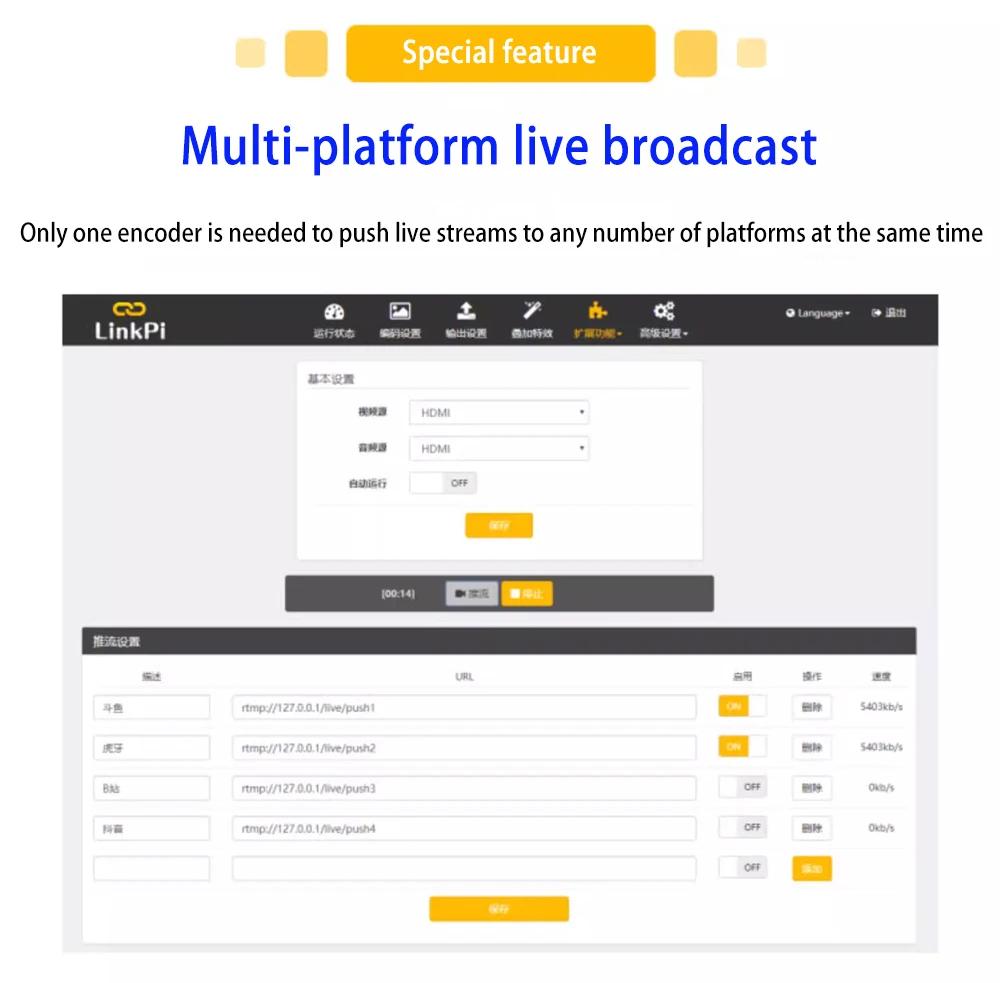

- Protocols: for RTSP, RTMP, HTTP, HLS, UDP, unicast, multicast
- ONVIF: support

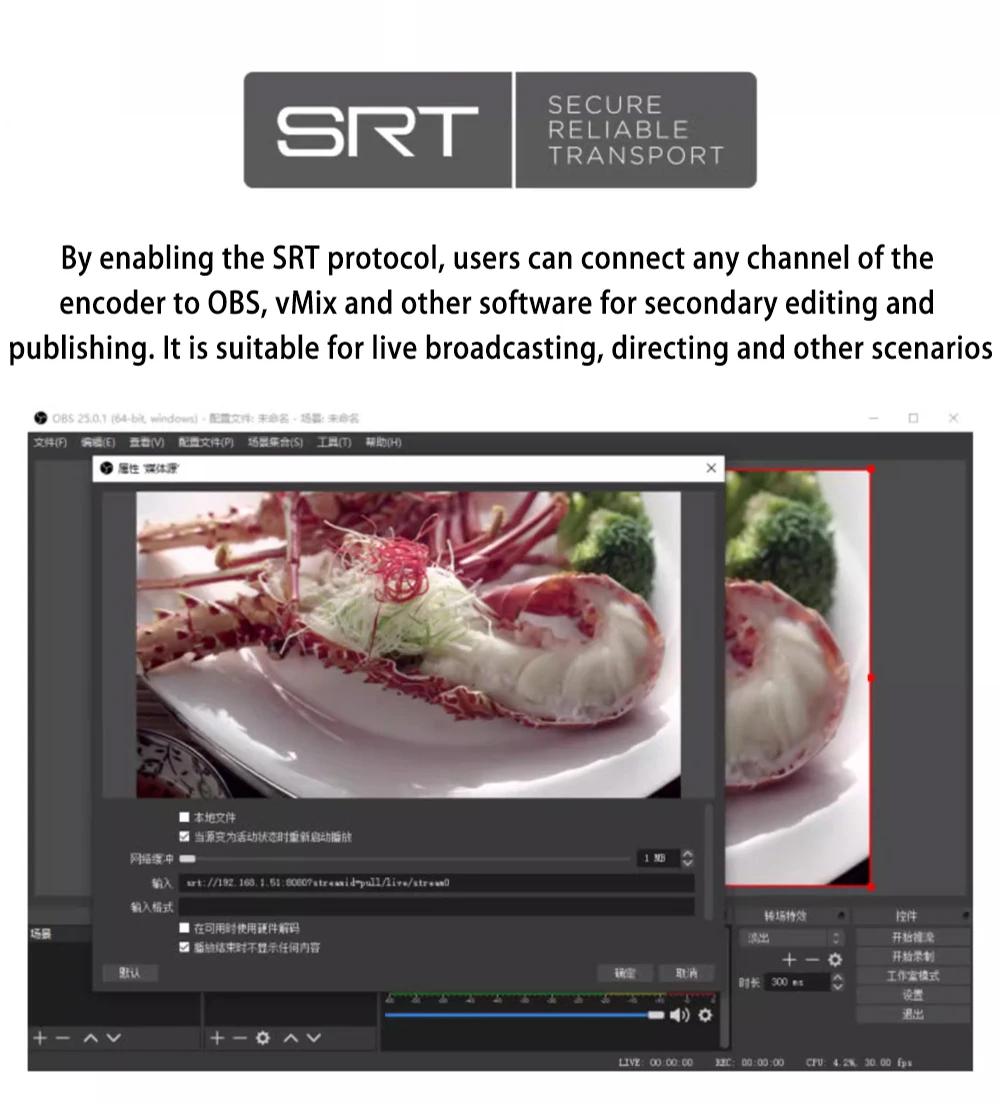

- SRT: support

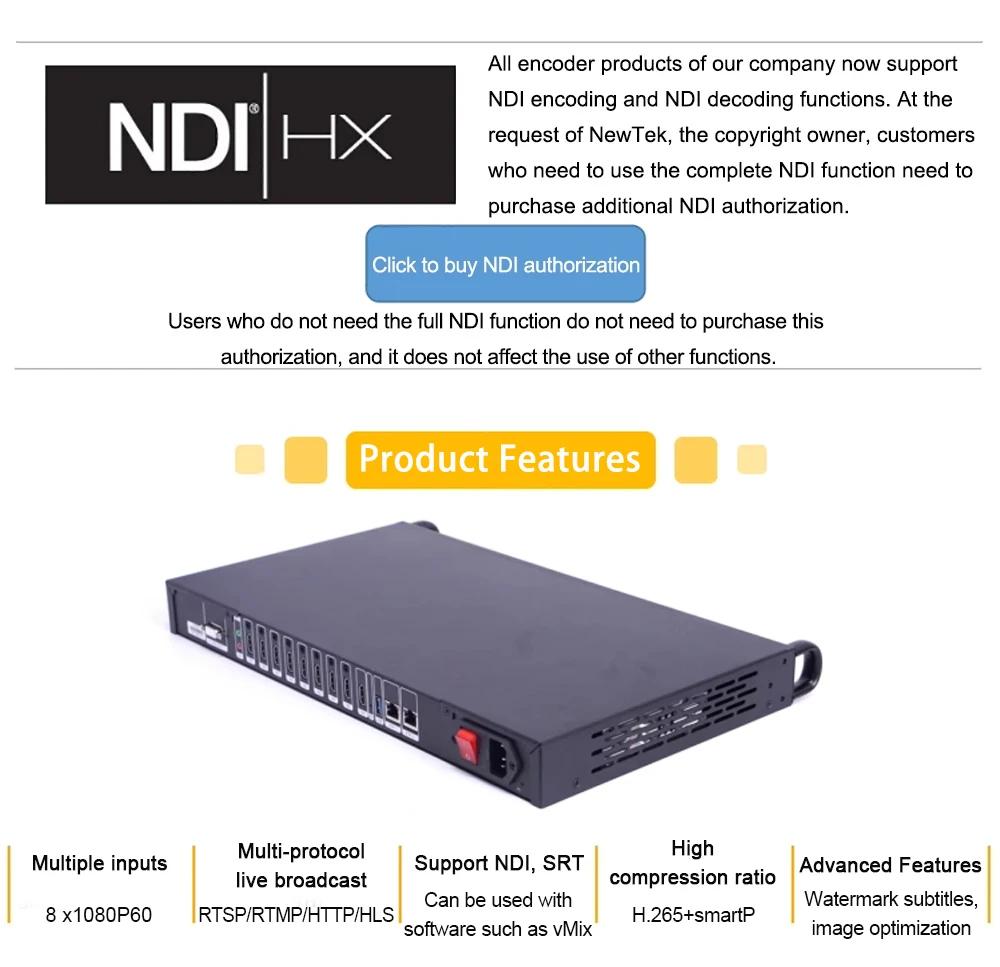

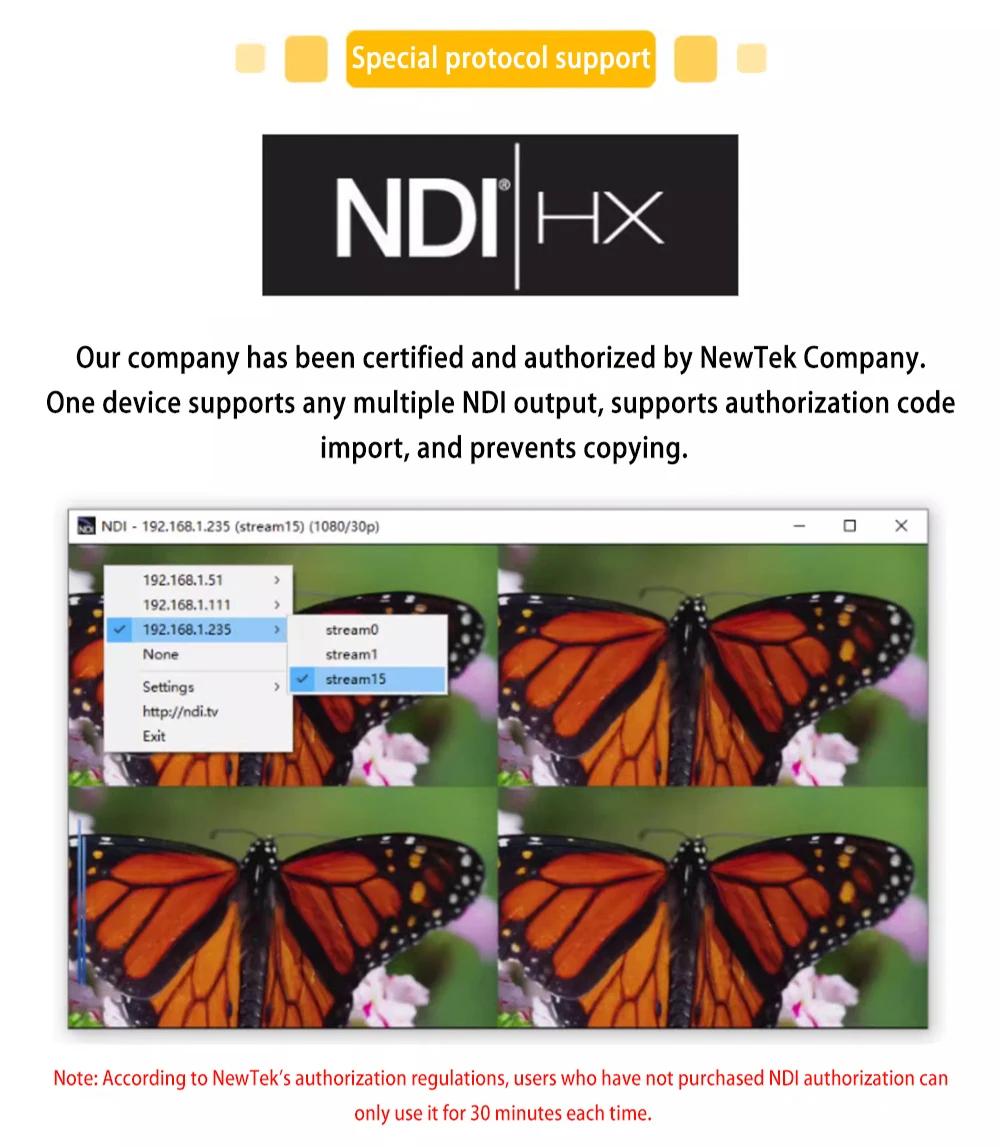

- NDI: support
- GB28181: support

File Storage:
- Storage: U disk
- Record format: MP4, TS, FLV, MOV, MKV, AVl

Basic Parameters:
- Adapter: AC-220V
- Power: <20W
- Size: 442 x 243 x 45mm
- Working temperature: 0 ~ 70℃

Software Features:

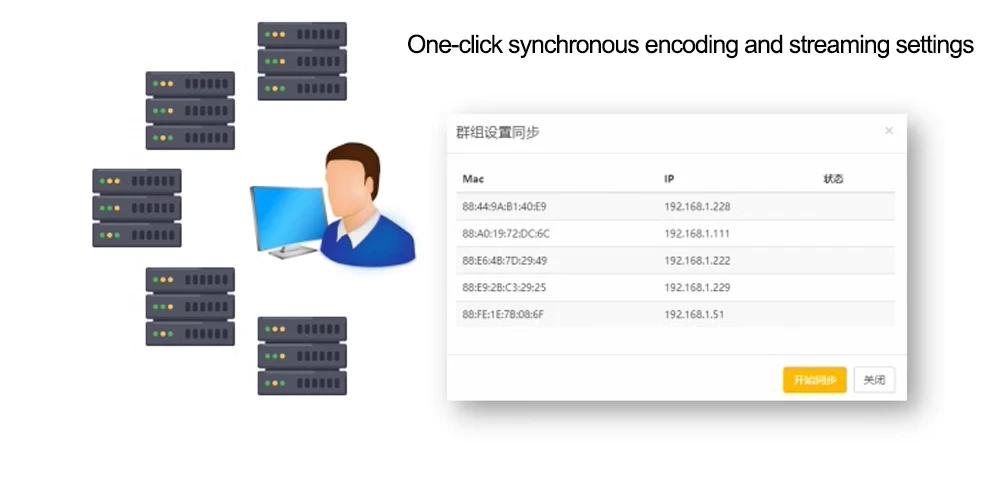

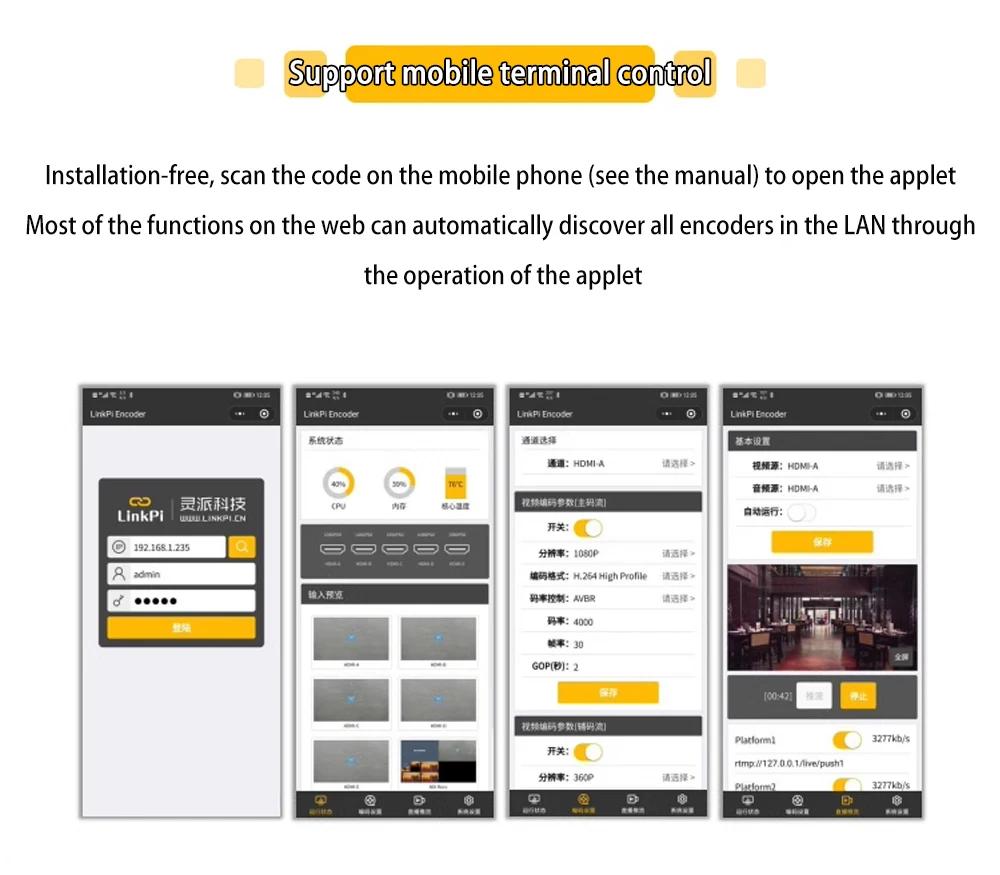

- Basic functions: WEB configuration, parameter hot update, firmware upgrade, network setting, password management

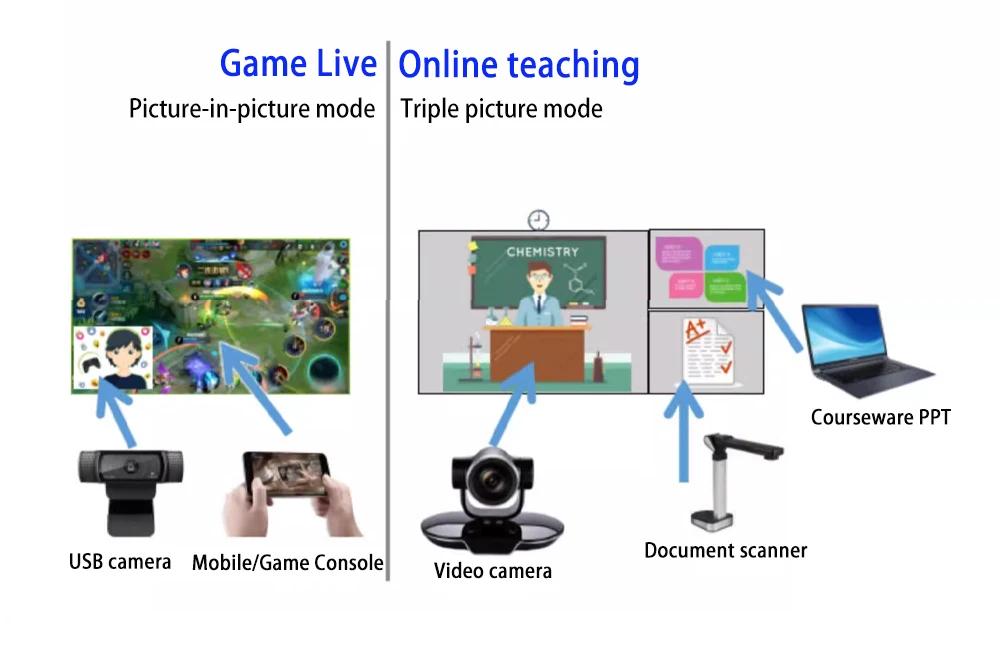

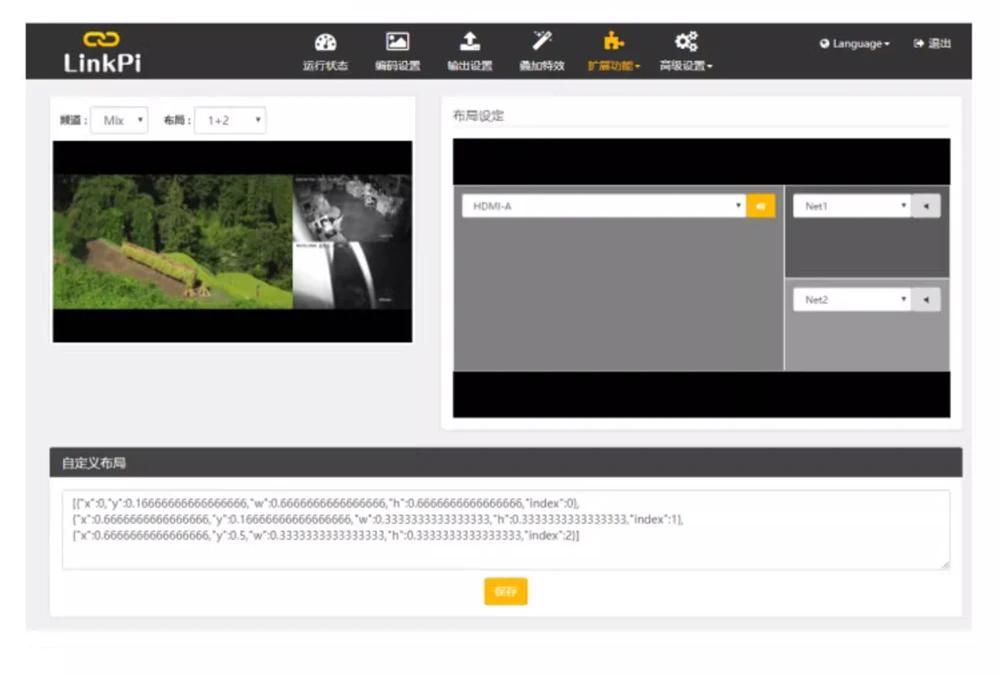

- Video mixing: picture-in-picture, 4-split screen, 9-split screen, custom
- Special effect overlay: logo, watermark, subtitle, scrolling subtitle, mosaic, time stamp
- Resource management: custom fonts, upload watermark logo pictures

Package Included:
- 1 x Video Encoder
- 1 x Power Cord
- 1 x WiFi6 Module
- 1 x USB3.0 Male to Male Adapter Cable
