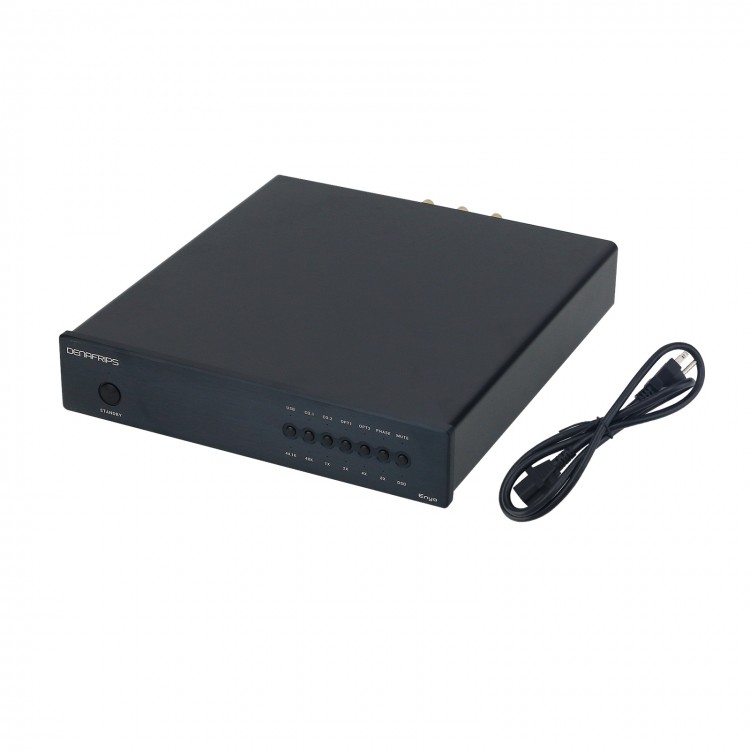

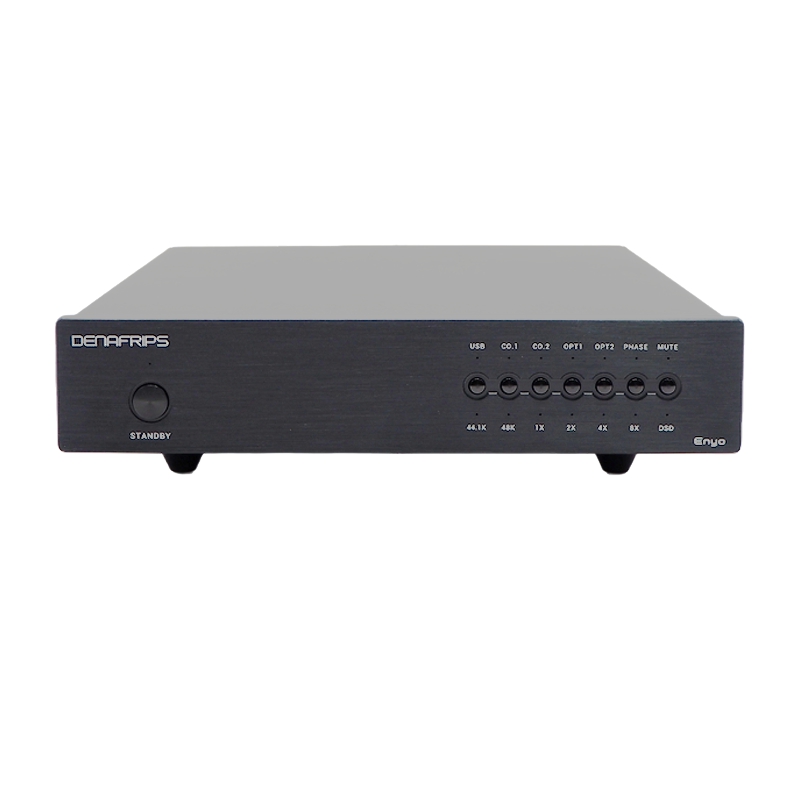

Enyo USB Optical Fiber Coaxial AES HIFI Digital Audio DAC R2R Decoder DSD for DENAFRIPS
Features:
- R2R+DSD architecture
- A 0.01% resistor that balances the low thermal effect of true 24-bit R2R+6-bit DSD(32-stage FIR filter) and is hand-matched with high accuracy.
- Nanocrystals are 45.1548 MHz and 49.152 MHz.
- Low noise power supply
- First-in first-out buffer
- Digital signal processing by FPGA
- DSD1024 and PCM1536 support USB input
- STM32F446 proprietary USB audio solution through AMR-based advanced MCU is a licensed Thesycon USB driver for Windows platform.
- Driver less on Mac & Linux
Parameter:
- Sampling mode: oversampled operating system/non-oversampled NOS

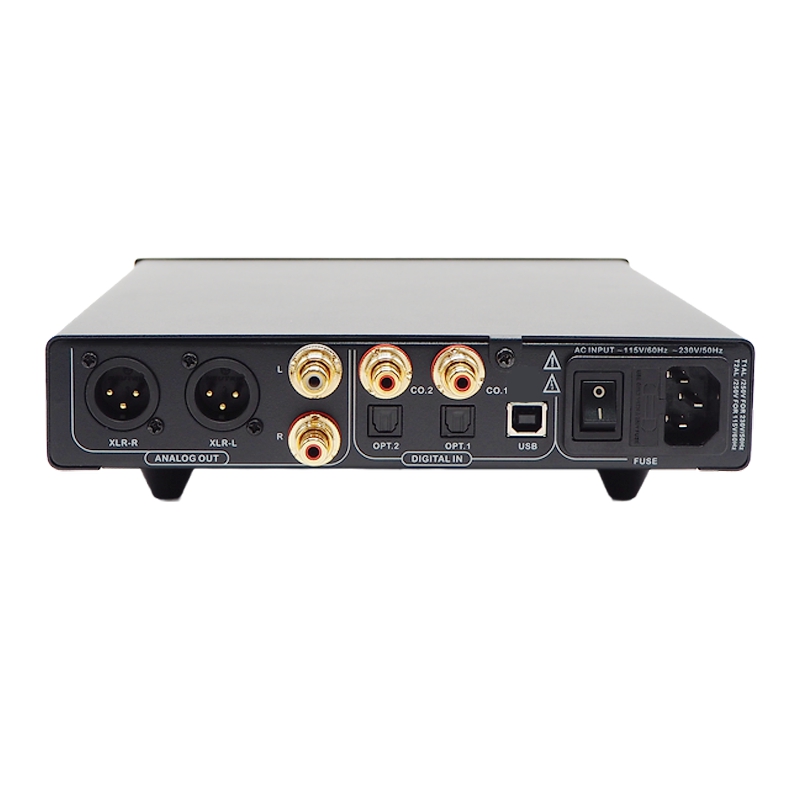

- Digital input: Coaxial cable x 2; toslink x2; USB2.0 B type
- Analog output: RCA is 2.0Vrms,625Ω; XLR is 4.0Vrms, 1250Ω
- Response: 20-70 kHz -3 dB
- THERT +N: 0.004%
- Signal to noise ratio: 115dB
- Dynamic range: >119dB
- Stereo crosstalk: -124dB
- AC power requirements: 100-240VAC, 50/60Hz (global voltage, manual selector)
- Fuse: T2A/ 250VAC; 5 x 20mm 2A slow blowing
- Power consumption: ≤20W
- Dimensions: 375 x 330 x 115 mm
- Weight: 3.5 kg
Package Included:
- 1 x DAC
- Power cable
