EP968 Universal Programmer MCU Programmer Online Programming Dual OLED For STM8 STM32 AVR NXP

EP968 Universal Programmer MCU Programmer Online Programming Dual OLED For STM8 STM32 AVR NXP

Description:
EP968 has been upgraded to OLED dual screens. With more beautiful appearance, its screens are able to display more content.

It supports ISP online programming for MCU from major manufacturers: Support for PIC, AVR, STM32, HCS08/RS08, LPC2xxx, LPC9xx, STM8S, STM8L, C8051F, etc. Models are gradually increasing.

Features:
High Reliability:
- Patent-protected interface circuit greatly reduces the chance of accidental damage to the programmer or target chip. The interface can withstand 15V high-voltage access without damage (Input state can be endured without limitation).
- The data in the instrument adopts CRC32 check and data fingerprint technology (for MD algorithm) to enhance data protection.
- Can be accurate to 14ns (72MHz) programming timing, stability is 20ppm.
- Programming is stable. Can choose multiple verifications.
- Stable operation: Allow target board to be short-circuited, which will neither damage the programmer nor the target board.

High Confidentiality:
- Code files such as HEX of the instrument can be encrypted. Encrypted file cannot be read.
- Internal RC oscillation and voltage reference can be calibrated, and a HEX file can be generated based on calibration result.
- The number of programming times can be limited.
- EP968 does not connect to server through network to ensure the security and confidentiality of user codes, and there is no risk of leakage.

Easy Operation:
- Advanced chip sensing technology, it can burn automatically without pressing buttons.
- There are screen and sound prompts when there is something wrong with chip programming.
- One operator can watch multiple instruments programming at the same time, which is more flexible and intuitive to operate than traditional programmers.

High Convenience:
- It supports all imported code file formats, for BIN/HEX/S19/430txt/IAR simplecode and so on.
- USB2.0 interface. Built-in 2 U disks, one is used to store driver program and software of programmer, and one can be freely used by users. There is no longer any need to delay work to find drivers and software.
- Can store 128 user program code files.
- Can store 64 firmware codes and support online download and programming of different series of MCU/chips for ARM respectively.
- Can be used as external power supply. In addition to being used in production workshop, it is also suitable for use in the field.

EP968 Manual & Chip List Supported by each Version of Programmer:
www.mcuisp.com
http://www.mcuisp.com/chiplist/ChipList.htm

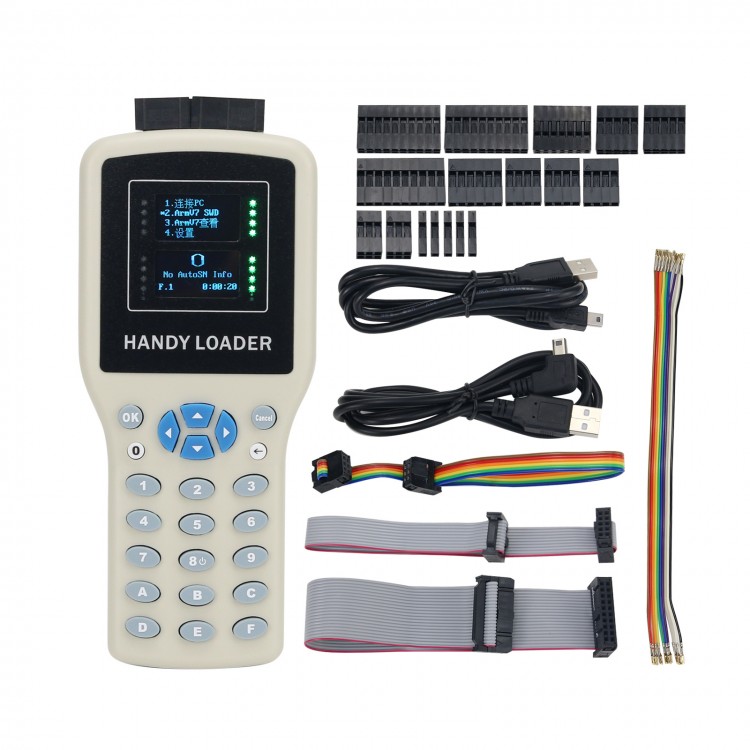

Package Included:
- 1 x Set of Handheld Programmer

Note: Power adapter is not included. 5V 1A power adapter is recommended.
