EQ-323 220V 2U Dual 31-band Professional Graphic Equalizer Spectrum Digital Equalizer for Home Stage

EQ-323 220V 2U Dual 31-band Professional Graphic Equalizer Spectrum Digital Equalizer for Home Stage

Features:
- Dual 31-band professional digital equalizer
- Standard 2U model can be rack-mounted
- 10 preset effects can be saved
- Dual 31-band adjustable spectrum
- Reduced noise impact; output HD sound quality
- LED light visual display
- Metal housing
- Easily get professional singing. Its filter capacitor can adjust the sensitivity to high frequency/intermediate frequency/low frequency, making it sound wide and easier for singers to sing and richer in the sense of scene
- Support Chinese/English computer software to debug: The front panel has a USB port, which can be connected to a computer via a data cable. Chinese/English debugging software. According to the process trend, it is simple and convenient to operate
- With protection and recall function: 10 modes can be saved for easy recall. Please press the SAVE button, rotate knob CONTROL or GAIN to select to save to any mode 1-10. The display will show 1-10 digit options, press SAVE again to save the mode
- Multi-type input and output interface: using several types of input and output interfaces, such as TRS6.35, RCA and XLR balanced interfaces
- Professional debugging-grade intelligent feedback suppression. Debugging-level anti-howling effect
- Digital audio DSP processing chip: It adopts new DSP digital processor technology, uses digital and analog integration to combine audio input and output, and enables high-quality audio equalization processing
- Independently adjust treble, alto and bass. The signal strength of each band of bass/alto/treble is clear at a glance, and the desired effect can be adjusted at will. Bass equalization adjustment: 20-250HZ; Midrange equalization: 315-2500HZ; Treble equalization: 4-20KHZ
- LCD dual 31-band spectrum flash: Dual 31-band DSP processing equalizer. Each band with LCD spectrum display light. Real-time display of 31-band frequency point changes
- Noise gate automatic noise reduction: With cutting-edge noise gate noise reduction function, it can reduce the interference of ambient noise in any harsh situation, and also give you clean and clear sound and output high-definition sound quality
- HD color LCD display: The digital equalizer panel is equipped with a high-definition LCD screen, which is wide and clear. It can display various detailed data in real time. The interface is simple and intuitive, which is convenient for users to operate
- 2U model can be mounted to a cabinet: Due to the standard 2U model design and metal brushed panel, it boasts a high-end and elegant appearance
- Premium components: switching power supply group, stable filter capacitor groups, DSP processor chip and golden resistors are used
- Widely used: can be applied to bars, wedding ceremonies, conferences and stages

Meanings of Light Colors:
- Blue light: The blue light is stationary to indicate that the equipment is operating normally (the blue light flashes to indicate the increase or attenuation of the band parameters)
- Green light: A green light indicates a normal state
- Yellow light: A yellow light indicates an alert status
- Red light: A red light indicates a critical state

Specifications:
- Type: Digital equalizer
- Special function: LCD displays parameters
- Adjustment function: support USB computer software to debug and save and call presets
- Line input impedance: 15KΩ
- Frequency response: 80Hz-15kHz
- Signal-to-noise ratio: 82dB
- Machine Dimensions: 480 x 175 x 100mm/18.9 x 6.9 x 3.9"
- Performance: Double-stage, dual 31-band digital equalizer to adjust treble, alto and bass
- Adjustment button: Electronic touch button
- Sound gain: 1dB or 11dB
- Line output impedance: 300Ω
- Total harmonic distortion + noise: <0.005%
- Power consumption: 30W
- Machine net weight: 2.7Kg/6Lb

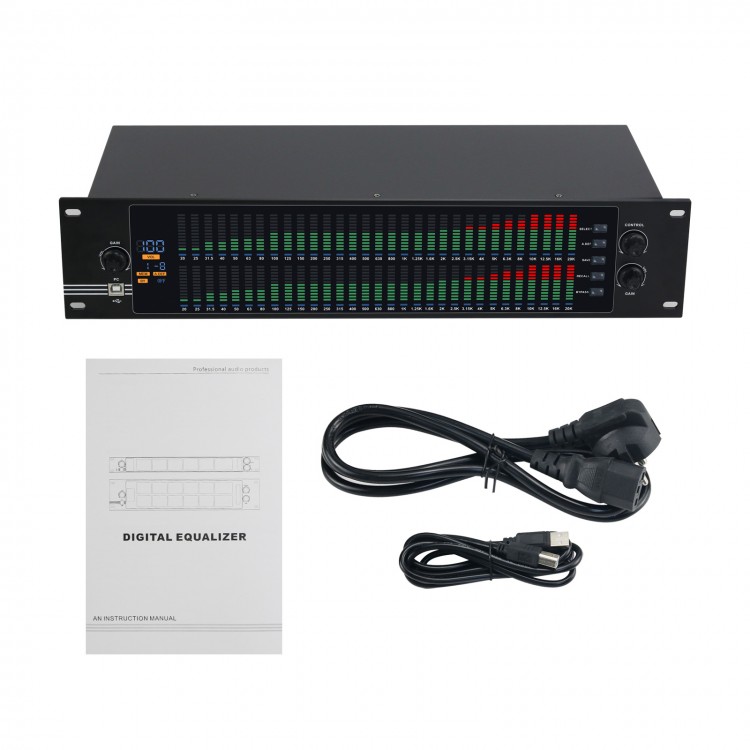

Package Included:
- 1 x Digital Equalizer

1. POWER: Power on/off
1. Power interface: connected to 220V/110V
3. INPUT: RCA input interface of left and right channels
4. OUTPUT: RCA output interface of left and right channels
5. INPUT 1/INPUT 2: 6.5mm/XLR two-in-one common input interface of left and right channels
6. OUTPUT 1/OUTPUT 2: XLR output interface of left and right channels
7. OUTPUT 1/OUTPUT 2: 6.5mm output interface of left and right channels
