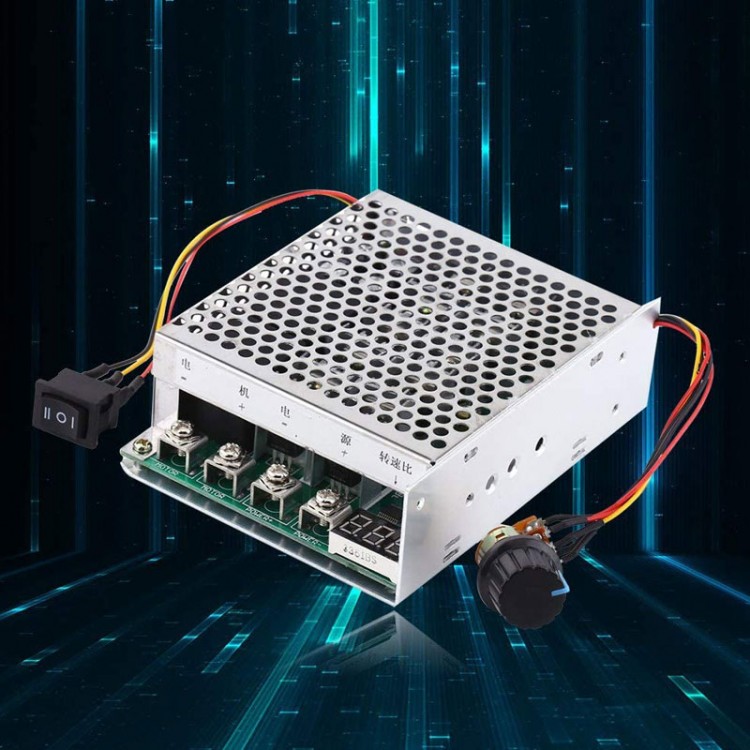

EQ839 40A DC Motor Speed Controller With Forward-Brake-Reverse Switch Digital Display Speed Knob
Features:
- 40A high-power speed controller

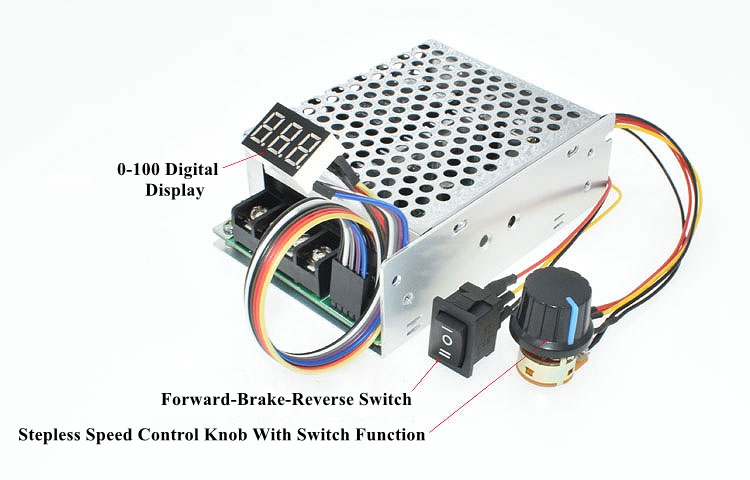

- Positioning with 0-100 percent digital display
- With a forward-brake-reverse switch
- Stepless speed adjustment knob with switch function
Specifications:
- Model: EQ839
- Input voltage: DC10-55V (equal to the rated voltage of your motor)
- Output voltage: linear under load
- Output current: 60A
- Continuous current: 40A
- Speed regulation type: current regulation
- Speed regulation method: potentiometer (linear)
- Supported motor: DC brushed motor
- Forward & Reverse: Support
- Speed adjustment range: 0-100%
- Control frequency: 15KHZ
- Connection type: terminal
- Knob specification: 100K (with switch)

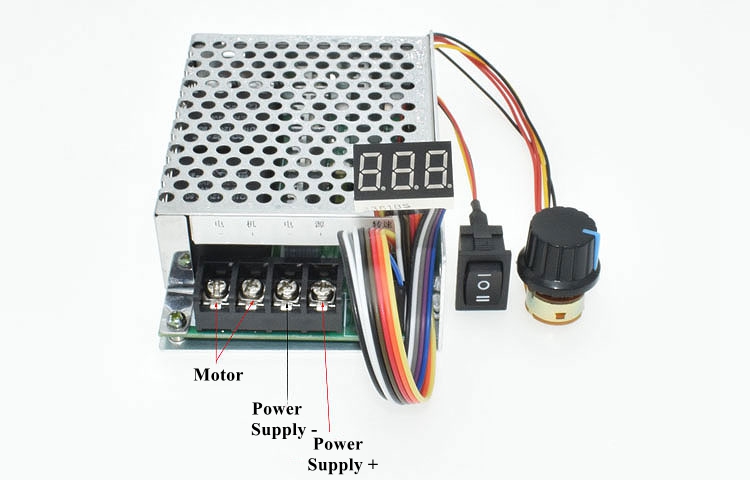

- Wiring type: Barrier terminal block
- Product net weight: 249g

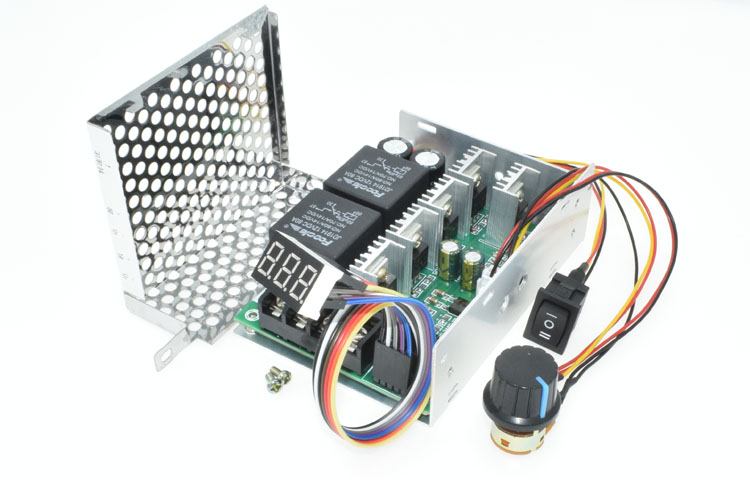

- Motherboard size: 100MM*76MM*28MM

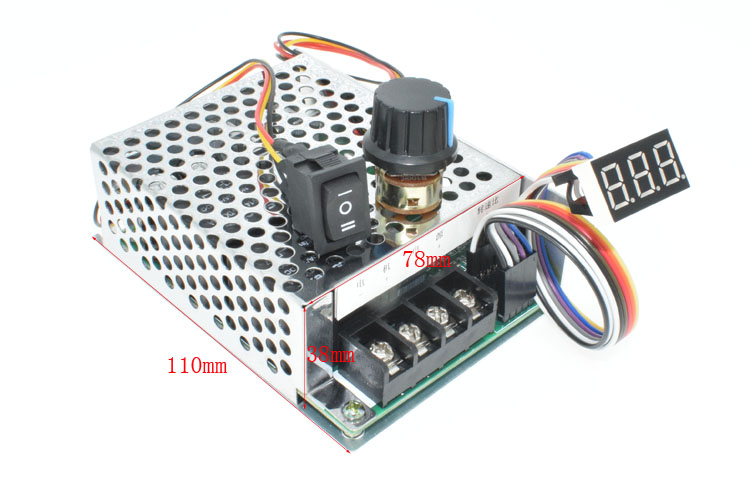

- Shell size: 110*78*38MM
Attention:
- Digital display is the percentage of motor full speed 0-100, not the actual speed of your motor.
- Pay attention to the + and - ends of input voltage.
- The input voltage DC 10-55V should be equal to the rated voltage of your motor.
Package Included:
- 1 x DC Motor Speed Controller
