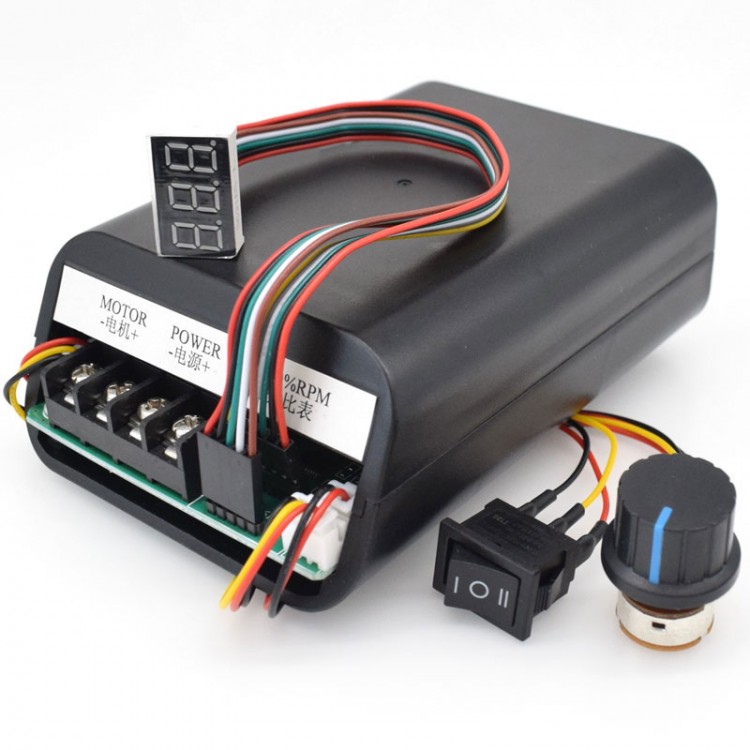

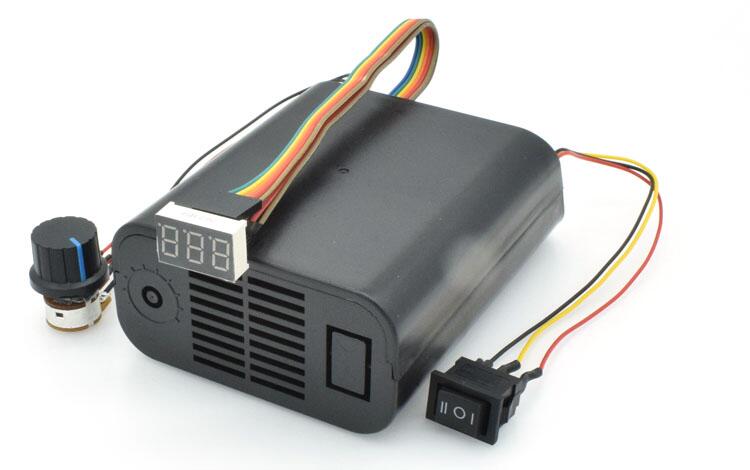

EQ89 PWM DC Motor Speed Controller Electronic Stepless Speed Switch Forward Reverse Input DC 10-55V
Advantages:
- With internal brushless cooling fan, not easy to heat up
- Digital display 0-100 percentage for precise positioning
Parameters:
- Model: EQ89
- Input voltage: DC10-55V (equal to the rated voltage of motor)
- Output voltage: linear under load
- Maximum current: 60A
- Continuous current: 40A
- Speed regulation type: current regulation
- Speed regulation method: potentiometer (linear)
- Supported motor: DC brushed motor
- Forward & Reverse: Support
- Speed adjustment range: 0-100%
- Cooling fan: Yes

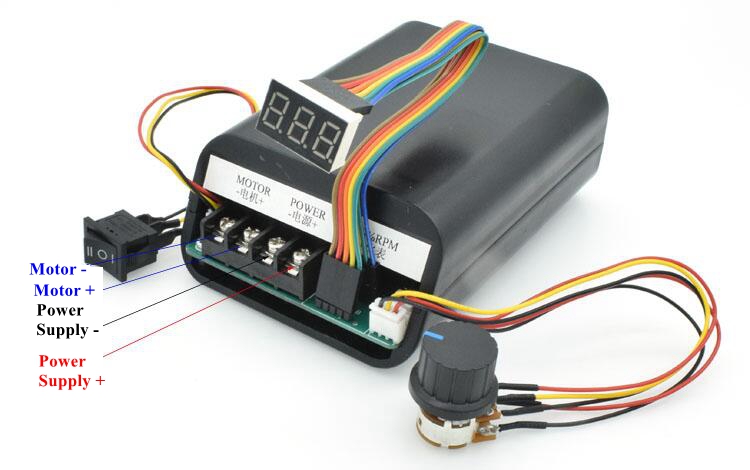

- Connection type: terminal
- Knob specification: 100K (with switch)
- Wiring type: Barrier terminal block
- Product net weight: 290g
- Motherboard size: 100mm*80mm*28mm

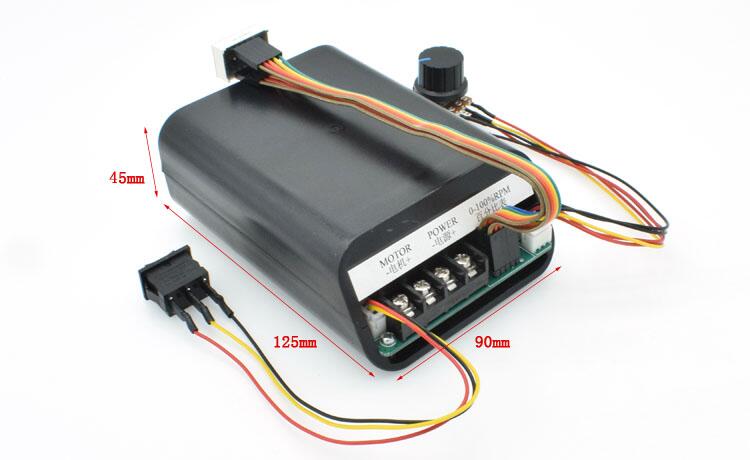

- Shell size: 125mm*90mm*45mm
Attention:
* 0-100 digital display percentage meter is equivalent to a potentiometer dial, not the actual speed of your motor.
* The input voltage must be divided into positive and negative poles.
* The input voltage should be equal to the rated voltage of motor within 10-55V DC.
Package Included:
- 1 x PWM Speed Controller
