ER11 Brushless Spindle 500W + Clamp Base + WS55-220 BLDC Motor Driver Controller + Power Supply
Description:
This kit is suitable for power supply 110V/220V. Its ER11 500W brushless spindle featuring longer lifespan. It is perfect for engraving PCB and acrylic, drilling holes. It comes with default 3.175mm chuck. If you need other sizes, please contact us.
Features of Brushless Spindle:
- High speed 12000r/min
- Brushless for less interference performance
- Smooth operation with less noise, adding extra stability to your running device
- Long service life with lower maintenance costs
- The radial runout of the main shaft is about 0.01-0.03.
- Can be used to engrave materials such as metal or non-metal.
- This spindle comes with forced air cooling and can work for a long time.
Specifications:
- Compatible Motor: Brushless DC Motor
- Working Voltage: DC 48V (Brushless driver and motor is needed)
- Power: 500W
- Speed: 12000r/min
- Torque: 0.6N.m
- Insulation Resistance: >2 megohms
- Insulation dielectric strength: 400V
- Length of the chuck part: 43mm of the shank, (including nut and sandwich)
- The diameter of the chuck part is: 15mm
- Total motor length: 190mm (including fan clamping position and motor)
- Spindle net weight: 1.4KG

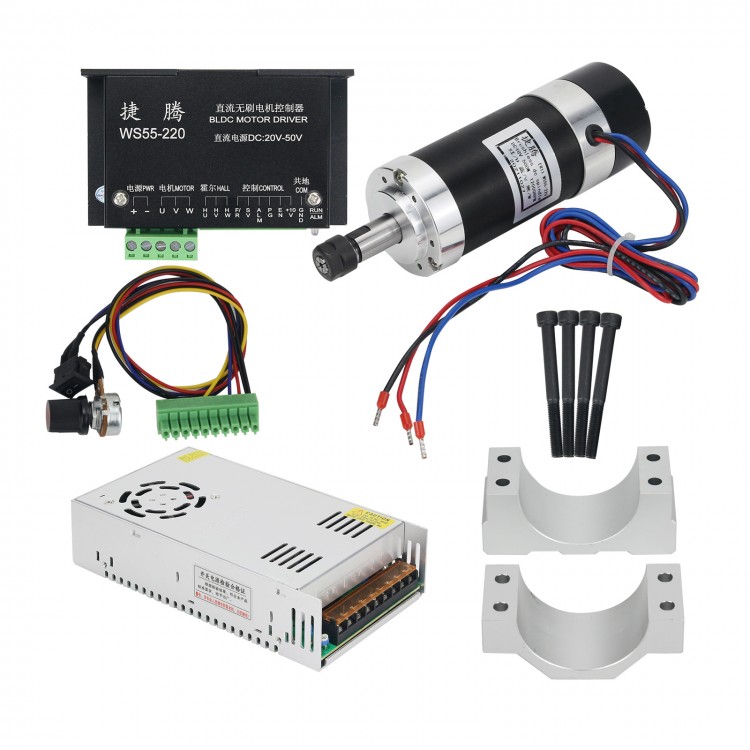

Package Included:
- 1 x Brushless Spindle
- 1 x Clamp Base
- 1 x BLDC Motor Driver Controller with Speed Adjustment Knob & Start Switch
- 1 x Power Supply
