ER320 LCD Level Light Audio Spectrum Rhythm Light High Precision Festival Countdown Clock Support EN/CN Switch

ER320 LCD Level Light Audio Spectrum Rhythm Light High Precision Festival Countdown Clock Support EN/CN Switch

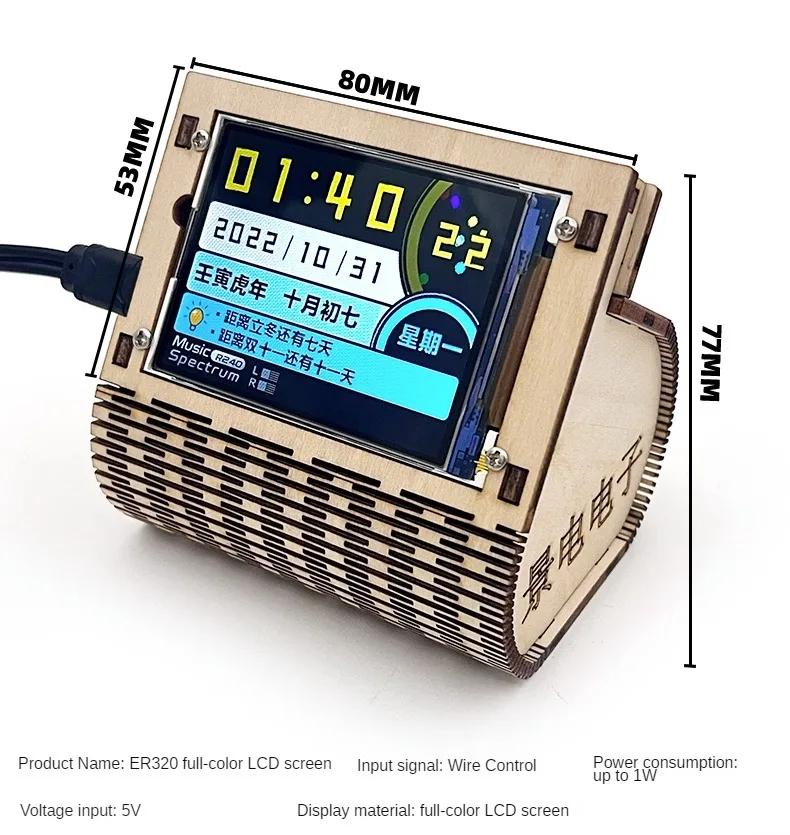

Specification:
- Voltage input: 5V
- Input Signal: linear control
- Power consumption: 1W max.
- Screen: full color LCD

Function Description:
- Chinese/English display interface, manual switching
- Brightness: Supports 1-6 levels of brightness, manually adjustable
- Detect music:
  In audio cable L or audio cable R mode:
  Automatic switching display of two major functions: clock--frequency spectrum or clock--level
  Automatically display spectrum or level without music
  Music display spectrum or level; If you need to fix the display spectrum/level/clock, please turn off the detection first
- Check music speed: Check music speed levels 1-6, with level 1 detecting the fastest and level 6 detecting the slowest. You can adjust it according to your needs.
- Collection method:
  The data selected for display is MIC/audio cable L/audio cable R
  The data of the three is collected in real-time in the background, only displayed as selection data
- Vertex pause: spectrum display shows no vertex pause up/down; Level indication - no vertex/left shift/right shift
- Pause speed: The top dwell speed is level 1-6, with level 1 having the shortest dwell time and level 6 having the longest dwell time.
- Rollback speed: Vertex rollback speed is 1-5 levels, with level 1 being the slowest and level 5 being the fastest.
- Processing effect: slow/fast/smooth processing, no processing, 1, 2, and 3 are slow processing.
  4/5 is fast processing and can be adjusted according to one's own needs
- Digital AGC:
  The program achieves signal amplification/reduction, with levels ranging from 1 to 6.
  1 is the minimum, 6 is the maximum, and can be adjusted according to your own needs.
- Automatic switching mode:
  Effective in spectrum mode, with a faster switching speed of 1 to 2, enable this function;
  For example, the current display mode 1 will automatically display mode.

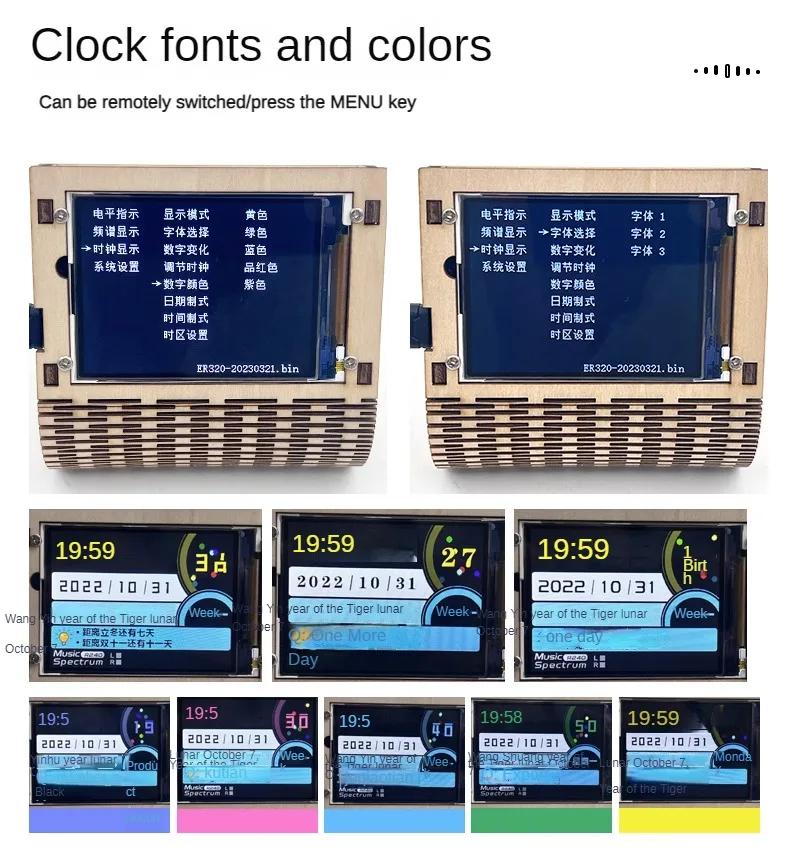

- Clock font: selection of time font, and selection of three fonts.
- Number change effect: Number switch change effect, move up/down/left/right.
- Note: For the first time using, you need to press and hold the "OK" button to match the remote control, otherwise the remote control cannot be used.

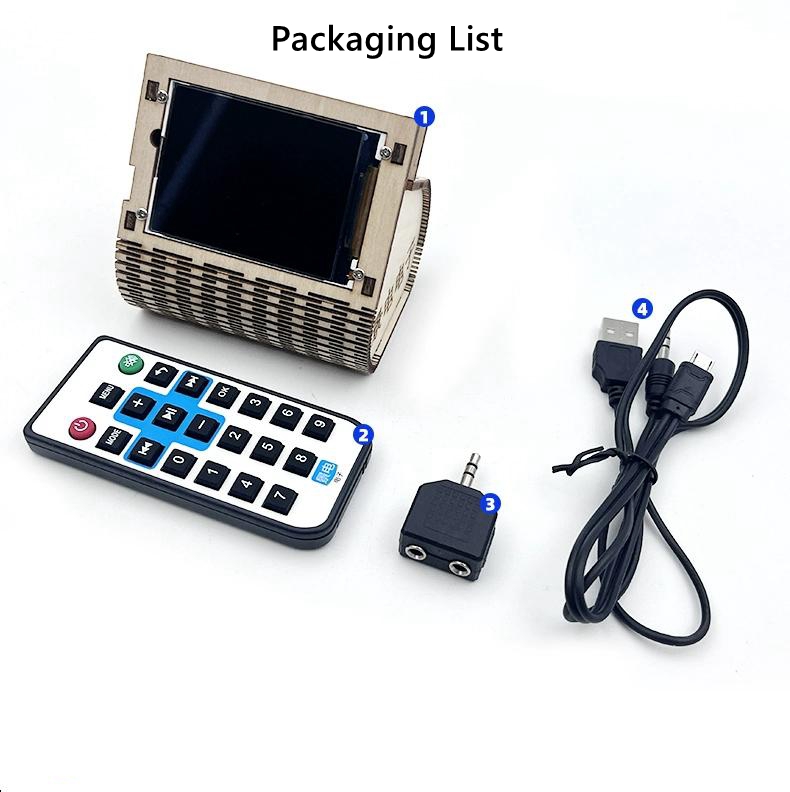

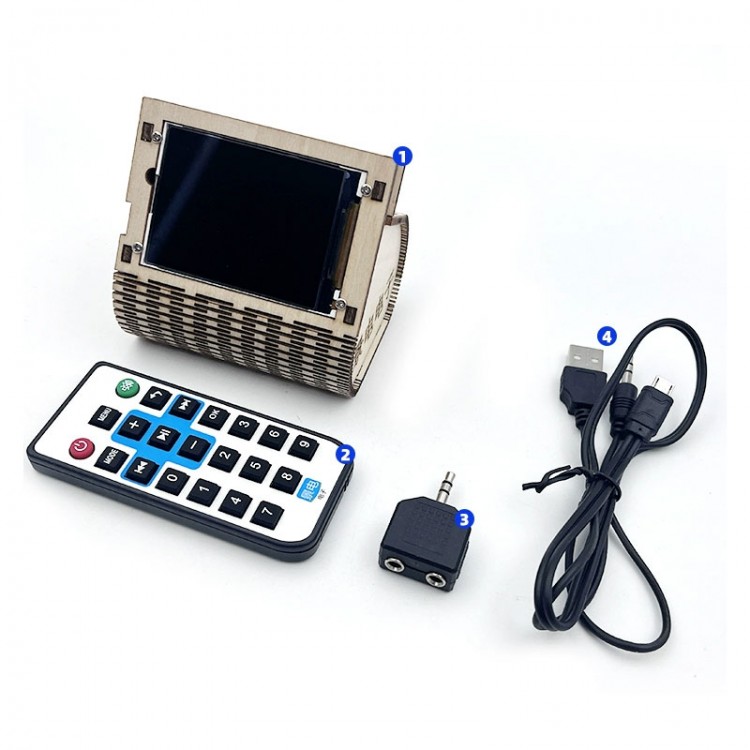

Package Included:
- 1 x ER320 LCD
- 1 x Remote Control
- 1 x Adapter
- 1 x Two in One Data Cable
