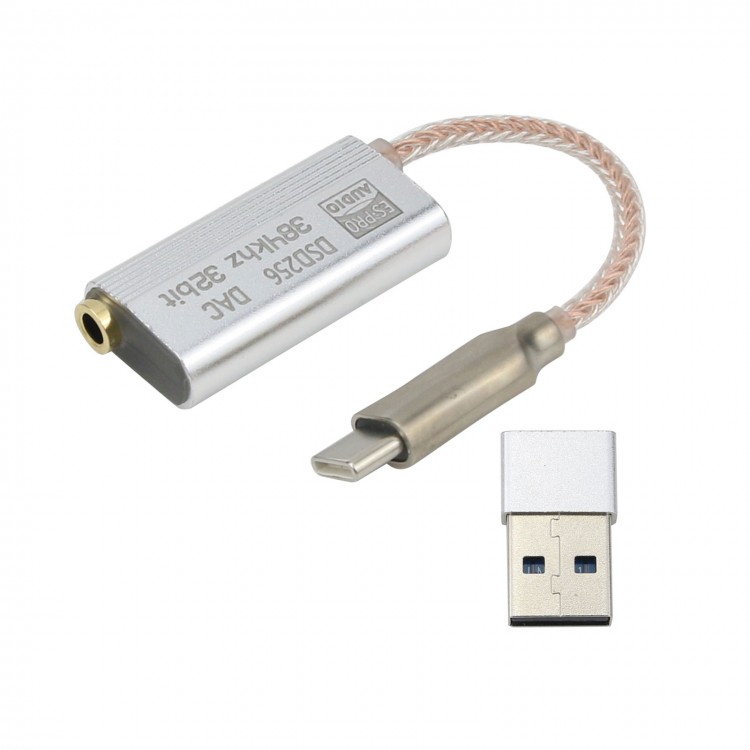

ES·PRO AUDIO DSD256 DAC 384Khz 32Bit Headphone Amp DAC Type C For Android Cellphones Headphones

ES·PRO AUDIO DSD256 DAC 384Khz 32Bit Headphone Amp DAC Type C For Android Cellphones Headphones

Brief Introduction:
1. Built-in digital audio decoding chip support up to PCM 32bit/384KHz
2. Built-in audio decoding chip support DSD64/128 audio source hard decoding (DoP mode)
3. Built-in 600Ω dynamic adaptive chip, can work with 16~600Ω headphones
4. Can convert the Type-C interface for Android mobile phone, tablet, Windows 10 PC into a 3.5mm headphone jack (require device type c support has audio output feature)
5. With an extra USB A to USB Type C adapter, it will work as an external high end USB audio card for you Windows 10 PC (not support for Windows 7 or earlier)

Music Player App Recommendation For Android:
1. The music player that comes with the phone may not be able to bypass the built-in DAC (if it has) of the phone to use an external DAC, so we recommend that you use the HibyMusic player (free for Google Play) and enable Exclusive HQ USB audio access feature in the app settings. 2. When Exclusive HQ USB audio access feature is enabled in the HibyMusic app, the headset will not be able to answer calls.

ES9318C Description:
ES9318c is the latest decoding chip, which is more advanced than ES90 series, ES91 series and ES92 series. It is a stereo 32bit independent DAC chip that supports DSD hard decoding. It adopts player's independent dac decoding chip, independent op amp chip, independent crystal oscillator, and independent digital power supply. Compared with other ordinary DAC chips, its materials are better.

Provides 130db SNR, a dynamic range of 128db, and a total harmonic distortion + noise below -112db. At the same time, ES9318c shares flagship Hyper-Streamll technology. In addition to having an independent DAC, ES9318c also integrates a high-impedance amplifier, which can provide an output voltage of up to 2Vrms (5.6Vpp), which can easily drive high-impedance headphones.

Advantages:
- For ESS ES9318C DAC
- DSD hard decoding
- DAC headphone amplifier for iPhone
- ES9318C + SA9302 decoding chips

Specifications:
- DAC chip: For ESS ES9318C
- Frequency response range: 10Hz-20kHz
- Decoding ability: PCM up to 32Bit/384kHz. DSD supports up to DSD256. DOP supports up to DSD128
- SNR: 130db
- DNR: 128dB
- THD+N: <0.000496 at 32Ω
- Output power: 180mW at 32Ω
- Interface type: Type C (USB2.0)
- Total length: 11cm
- Net weight: 11.4g
- Metal shell volume (plug in earphone end): 37*18.4*9.1mm

Package Included:
- 1 x Set of Headphone Amp DAC Cable

Note:
- It does not support phone calls, wire control or volume control.
